CANYON BICYCLES SOUTH AFRICA

ULTIMATE CFR LTD

ULTIMATE CFR LTD

The Ultimate CFR LTD might just be the world's finest road race bike, combining the peloton-proven Ultimate CFR frame, decked out in a stunning special edition artwork, with limited-edition DT Swiss carbon wheels and pro-level Shimano Di2 shifting.

Shimano Dura-Ace Di2 RD-R9250, 12-speed, DT Swiss ARC 1100 Dicut LTD Edition
  • Material: Carbon (CFR)
  • Weight: 6.72 kg

R 280,000.00
R 280,000.00
Sale Sold out
Taxes included.

included: Canyon pricing in South Africa includes all courier costs from Germany, import duties, customs costs, handling fees and a permanent sa technical support team. Your bike will be delivered to your door or to one of our service centres.

sales and exchange rate: Please note that the above pricing is subject to change. quotations may vary due to sudden exchange rate fluctuations, price increases or discounts offered by Canyon Global. Final pricing on order.

Color
View full details

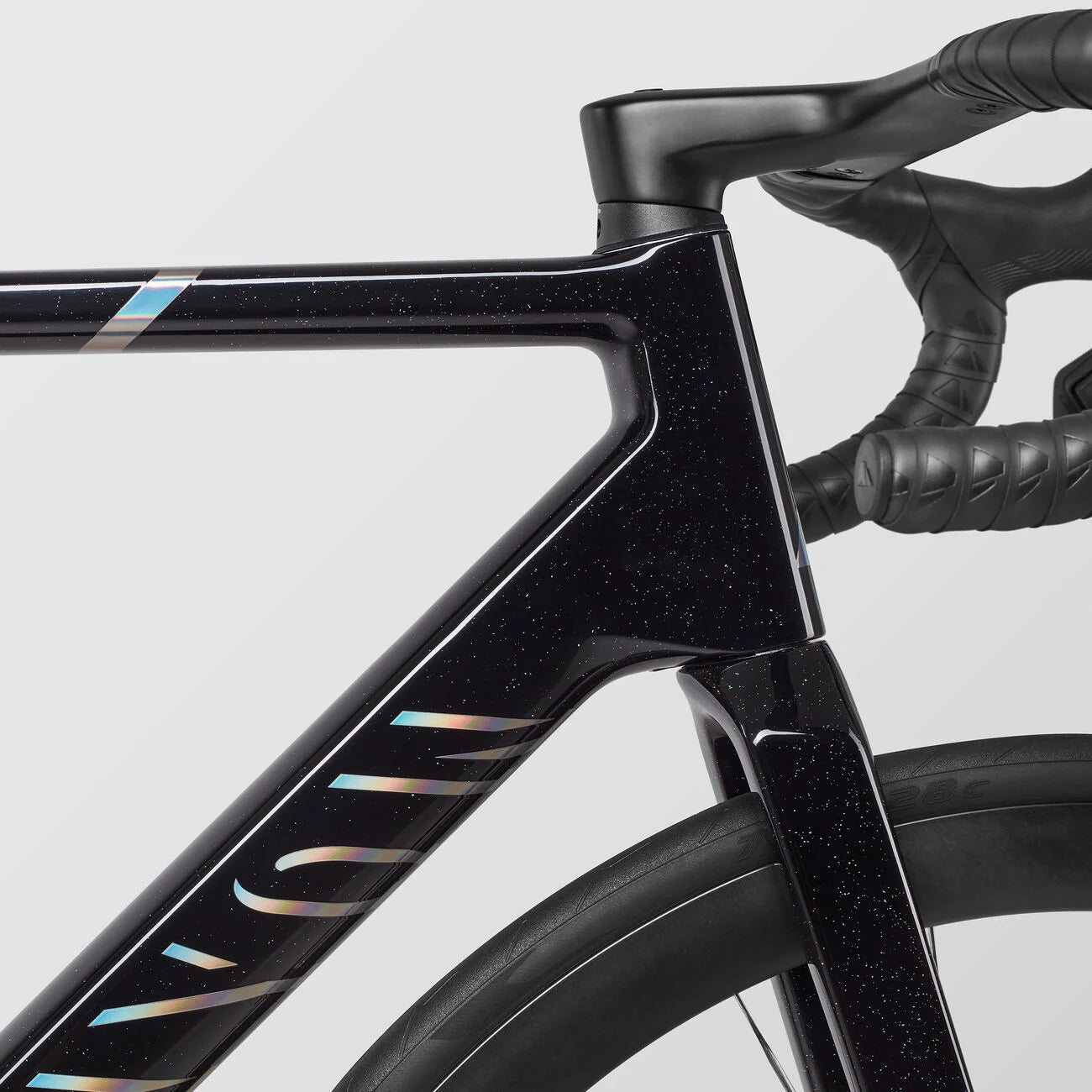

Exclusive premium artwork

Combining elegant black tones with eye-catching highlights, this bike oozes pure class from top to bottom with a beautiful limited-edition artwork. A true masterpiece of bike design.

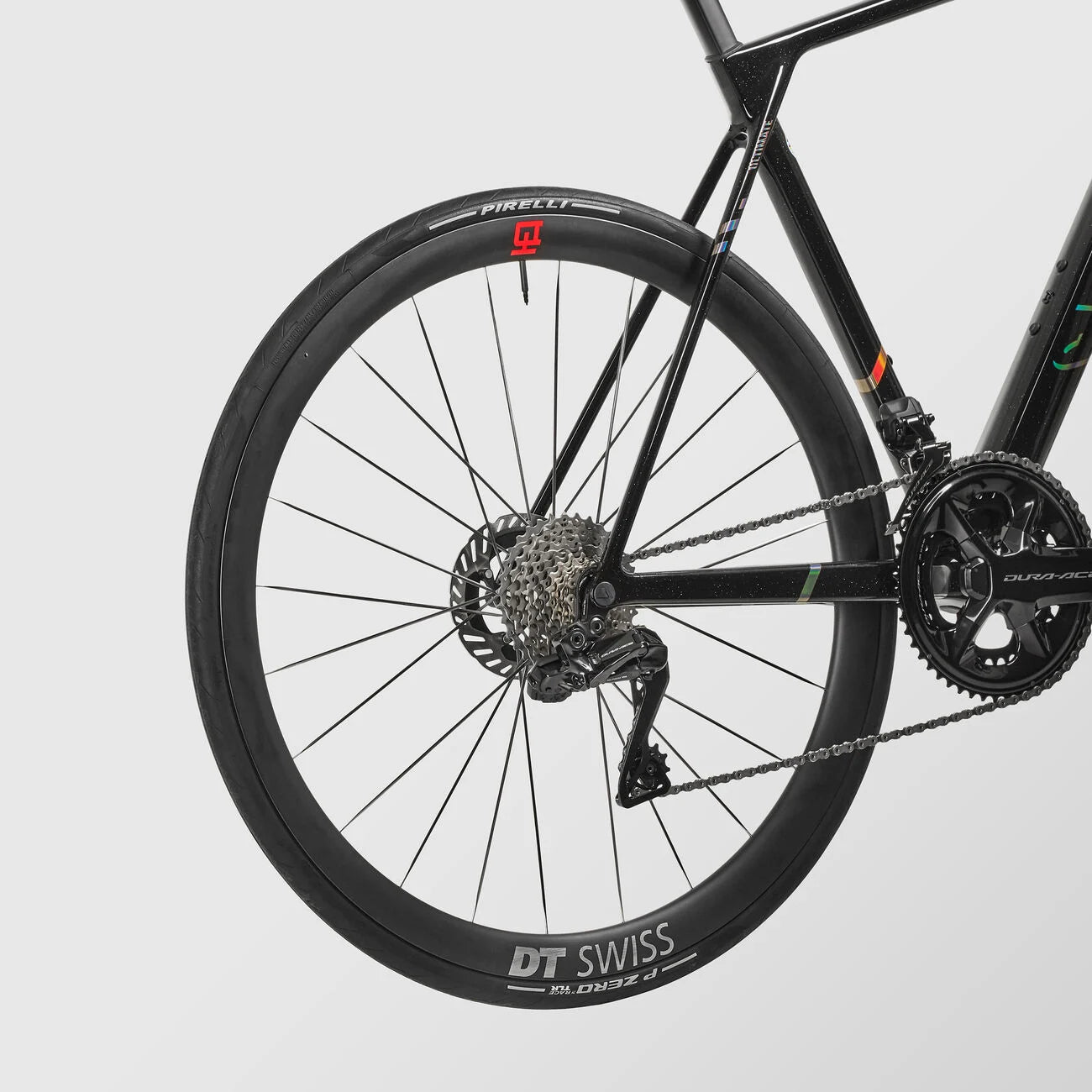

The Ultimate climbing wheelset

Introducing the Ultimate combo of climbing speed, aero efficiency, and limited-edition style, available on the Ultimate CFR LTD in a limited run. Decked out with special-edition red rim decals and stunning silver Aerolite spokes and 180 Dicut ARC hubs, DT Swiss ARC 1100 38mm LTD Edition is one of the finest climbing wheelsets on the planet today.

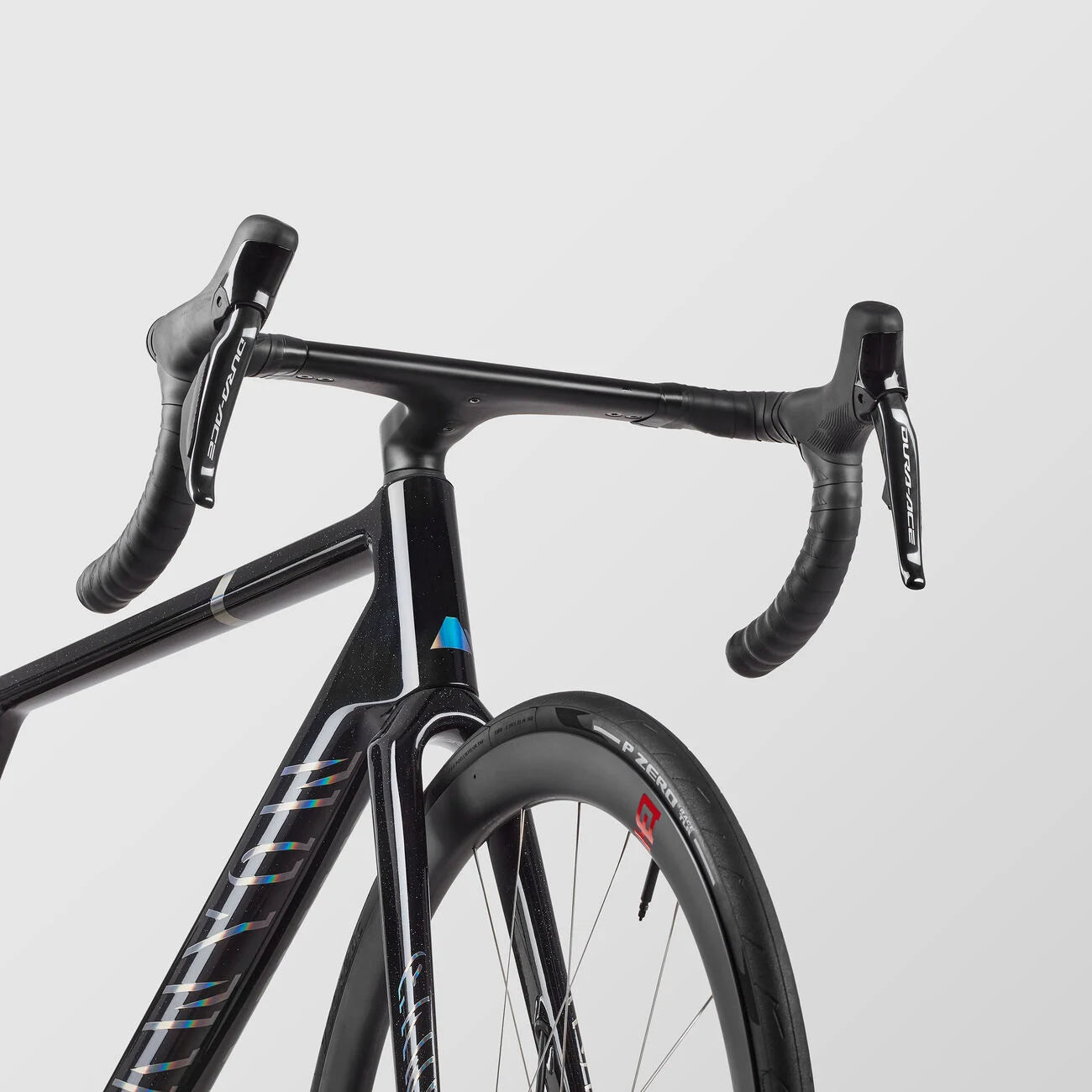

CP0018: a pro-level cockpit

You can effortlessly adjust the Ultimate cockpit to your needs and fit. It’s simple thanks to complete cable and line integration, and height and width adjustment without needing to cut your fork shaft.

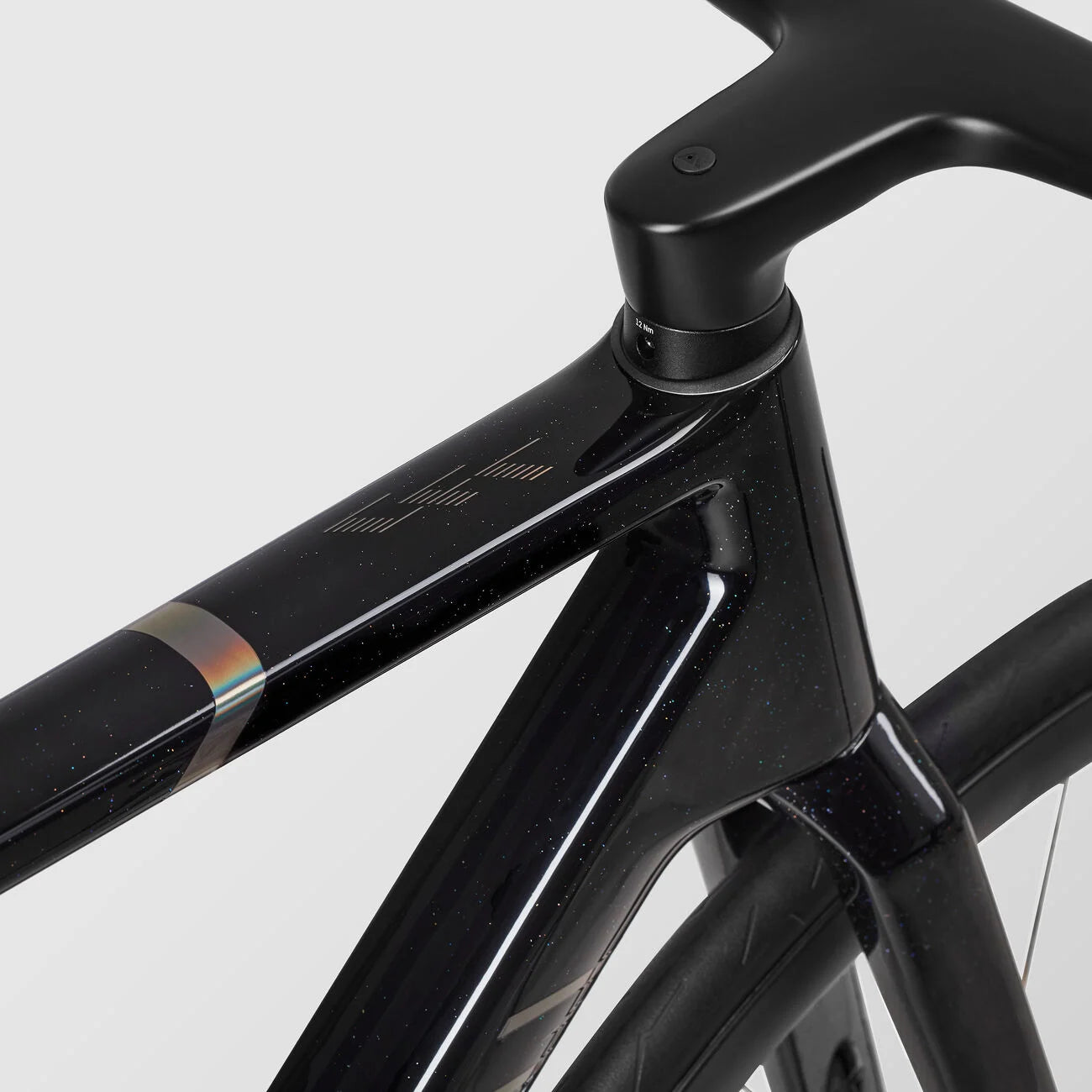

CFR: world-class carbon

The choice of our pro athletes, the Ultimate CFR’s frame is the embodiment of Canyon’s world-class carbon engineering expertise. The finest materials. Advanced lightweight engineering. Super-thin construction, with no drawbacks in terms of toughness thanks to specially placed reinforcement patches. This is the frame to beat.

Aerodynamically optimised

On the road, from just 14 kph, aerodynamic drag is the largest force holding you back. So we optimised the frame forms for minimum drag, through an exhaustive process of wind tunnel testing in collaboration with aero experts at Swiss Side. We also integrated the headtube/fork area as much as possible for extra aero gains.

Components

FRAME

Frame

  • Canyon Ultimate CFR
  • Pro-level build of our latest 5th-generation Ultimate frame delivering the pinnacle of stiffness-to-weight. As raced at World Tour level.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 33 mm
  • Material: Carbon (CFR)
  • Weight: 835 g

Fork

  • Canyon FK0108 CFR
  • Superlight carbon fork, engineered for maximum stiffness-to-weight and compliance.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 33 mm
  • Material: Carbon (CFR)
  • Weight: 321 g

DRIVETRAIN

Battery

  • Shimano BT-DN300 Di2 Battery

Rear Derailleur

  • Shimano Dura-Ace Di2 RD-R9250, 12-speed
  • Cage length: long
  • Weight: 215 g

Front Derailleur

  • Shimano Dura-Ace Di2 FD-R9250
  • Weight: 96 g

Cassette

  • Shimano Dura-Ace R9200, 12-speed, 11-30
  • Number of sprockets: 12
  • Range: 11-30

Crank

  • Shimano Dura-Ace Di2 R9200 Powermeter
  • Number of chainrings: 2

Bottom bracket

  • Shimano Pressfit BB92
  • Bottom bracket standard: PF 86,5
  • Weight: 200 g

Chain

  • Shimano CN-M9100 12s

BRAKES

Shift-/ Brake Lever

  • Shimano Dura-Ace Di2 R9270, 12-speed
  • Number of pistons: 2
  • Weight: 115 g

Shift-/ Brake Lever

  • Shimano Dura-Ace Di2 R9270, 12-speed
  • Number of pistons: 2
  • Weight: 115 g

Brake Rotor

  • Shimano XTR RT-MT900
  • Size: 140 mm
  • Weight: 147 g

Brake Rotor

  • Shimano XTR RT-MT900
  • Size: 160 mm
  • Weight: 171 g

WHEELS

DT Swiss ARC 1100 Dicut LTD Edition

  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 38 mm
  • Inner width: 20 mm
  • Rim material: Carbon
  • Weight: 586 g

Wheel

  • DT Swiss ARC 1100 Dicut LTD Edition
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 38 mm
  • Inner width: 20 mm
  • Rim material: Carbon
  • Weight: 711 g

Tyre

  • Pirelli P Zero Race TLR
  • Width: 28 mm
  • Weight: 295 g

Thru Axle

  • DT Swiss through axle with Lever
  • Axle dimension: 12x100 mm

Thru Axle

  • DT Swiss through axle w/o Lever
  • Axle dimension: 12x142 mm

COCKPIT

Cockpit

  • Canyon CP0018 Aerocockpit
  • Aero design, reinforced carbon walls for added stiffness and improved durability.
  • Material: Carbon (CF)
  • Weight: 282 g

Handlebar Tape

  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: Black

SEAT

Saddle

  • Selle Italia SLR C59
  • Gender: Male
  • Weight: 63 g

Seatpost

  • Canyon SP0064
  • Superlight custom carbon seatpost with aerodynamic D-shape profile.
  • Setback: 0 mm
  • Weight: 70 g
  • Material: Carbon (CF)

Seat Clamp

  • Canyon GP0224-02 Adapter seatstay 7x9

Seat Clamp

  • Canyon GP0295-03 Seatpost Wedge

GEOMETRY & DIMENSIONS

Ultimate CFR Di2 Aero Geometry & dimensions
