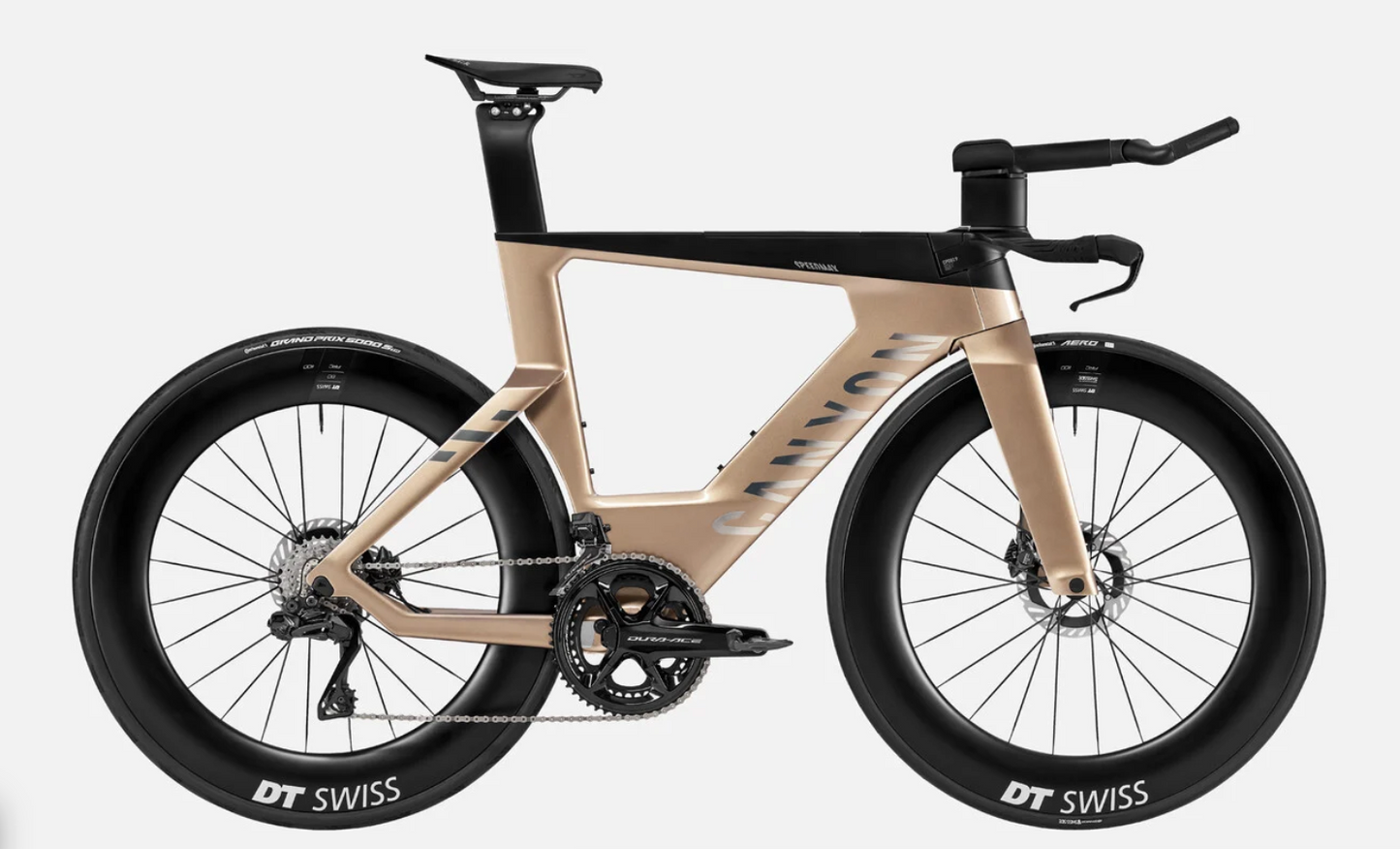

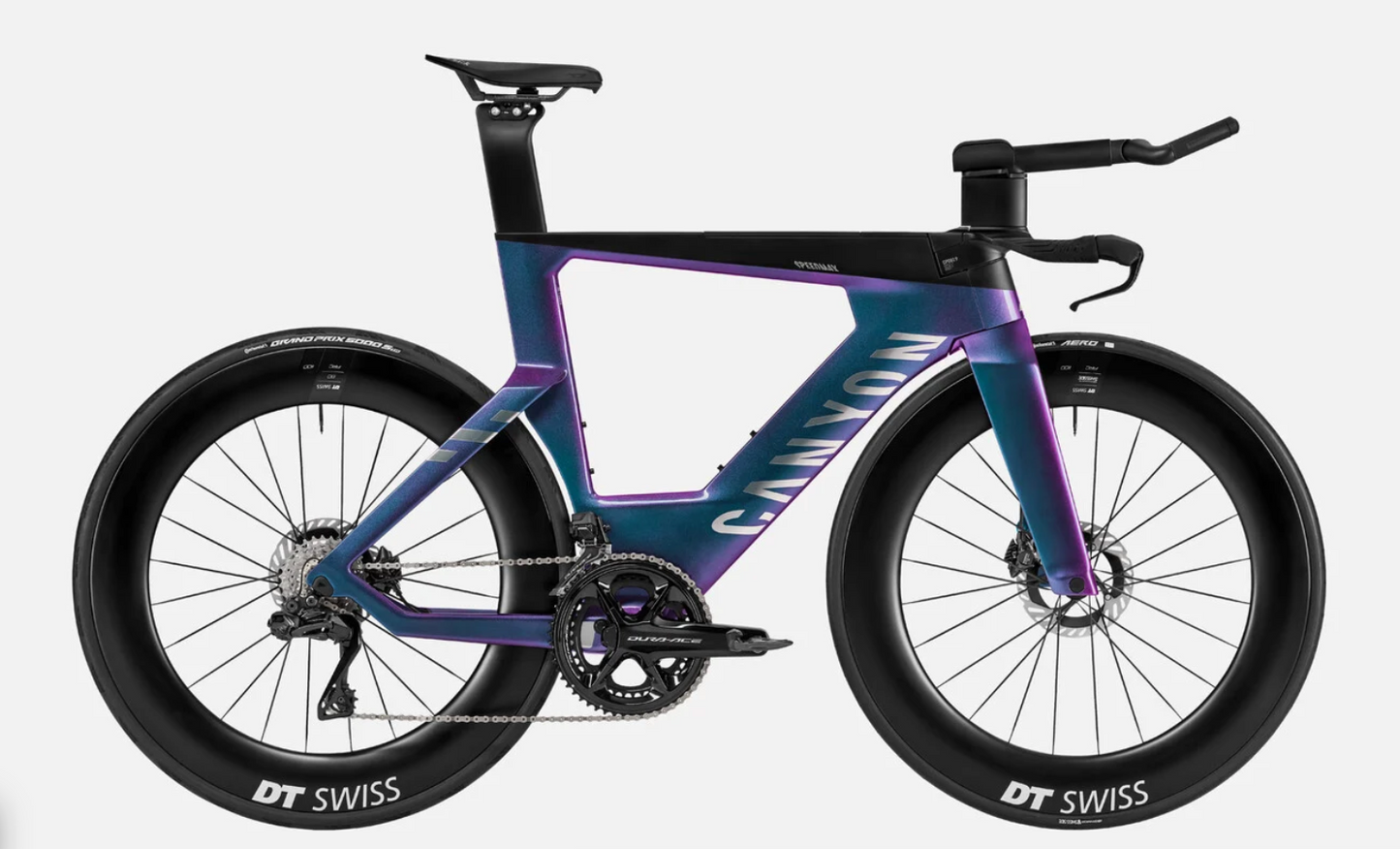

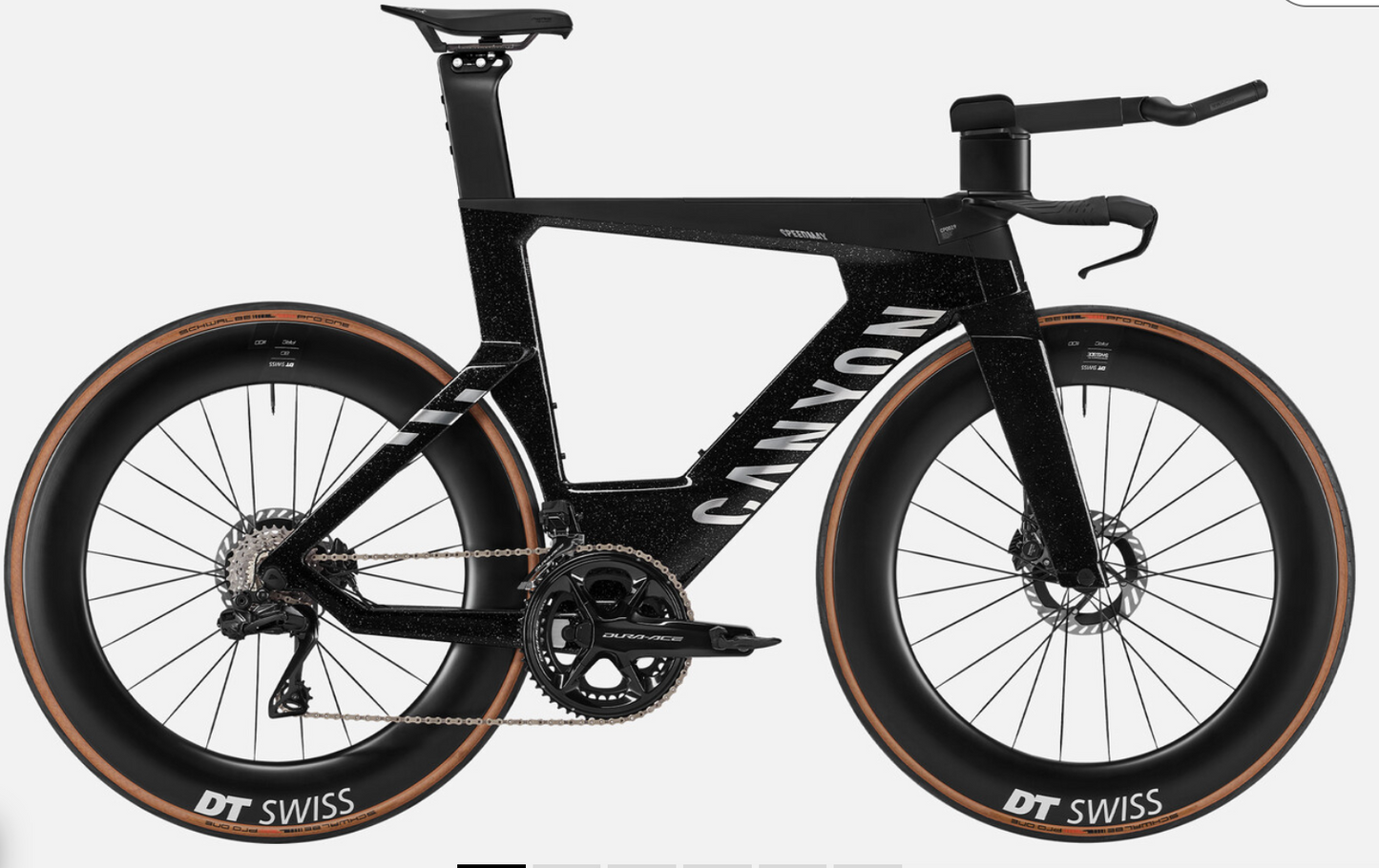

SPEEDMAX CFR DI2
SPEEDMAX CFR DI2
The Speedmax CFR sets the world standard for triathlon bikes by packing unparalleled adjustability, aerodynamics, integration and comfort into a frame kitted with the finest components.
Shimano Dura-Ace Di2 RD-R9250, 12-speed, DT Swiss ARC 1100 Dicut- Material: Carbon (CFR)
- Weight: 9.28 kg

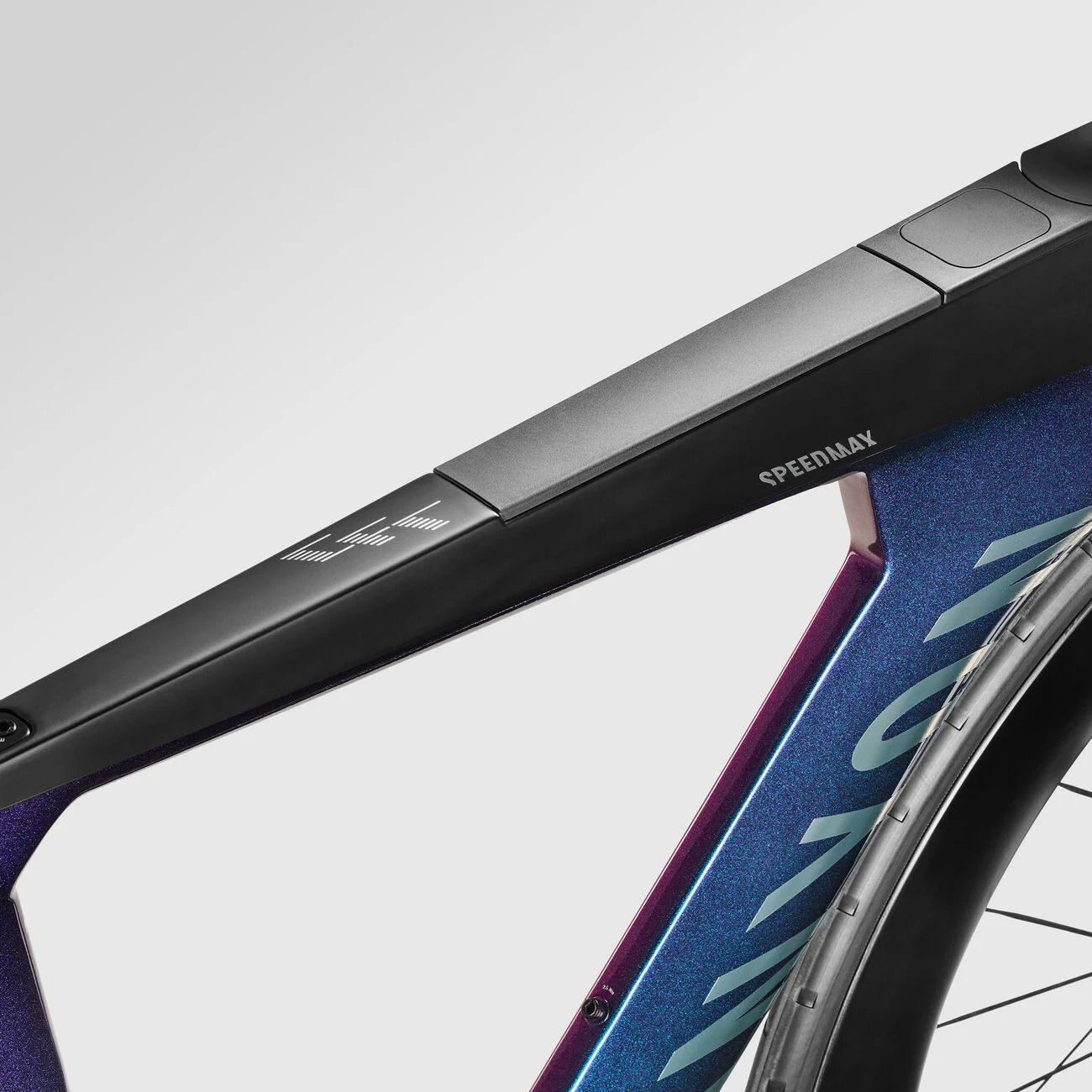

Premium CFR finish
CFR stands for the best of the best – both in terms of performance and optics. With special decals, dynamic CFR branding, and a premium finish only found on CFR models, this bike is unmatched by anything else out there on the course.

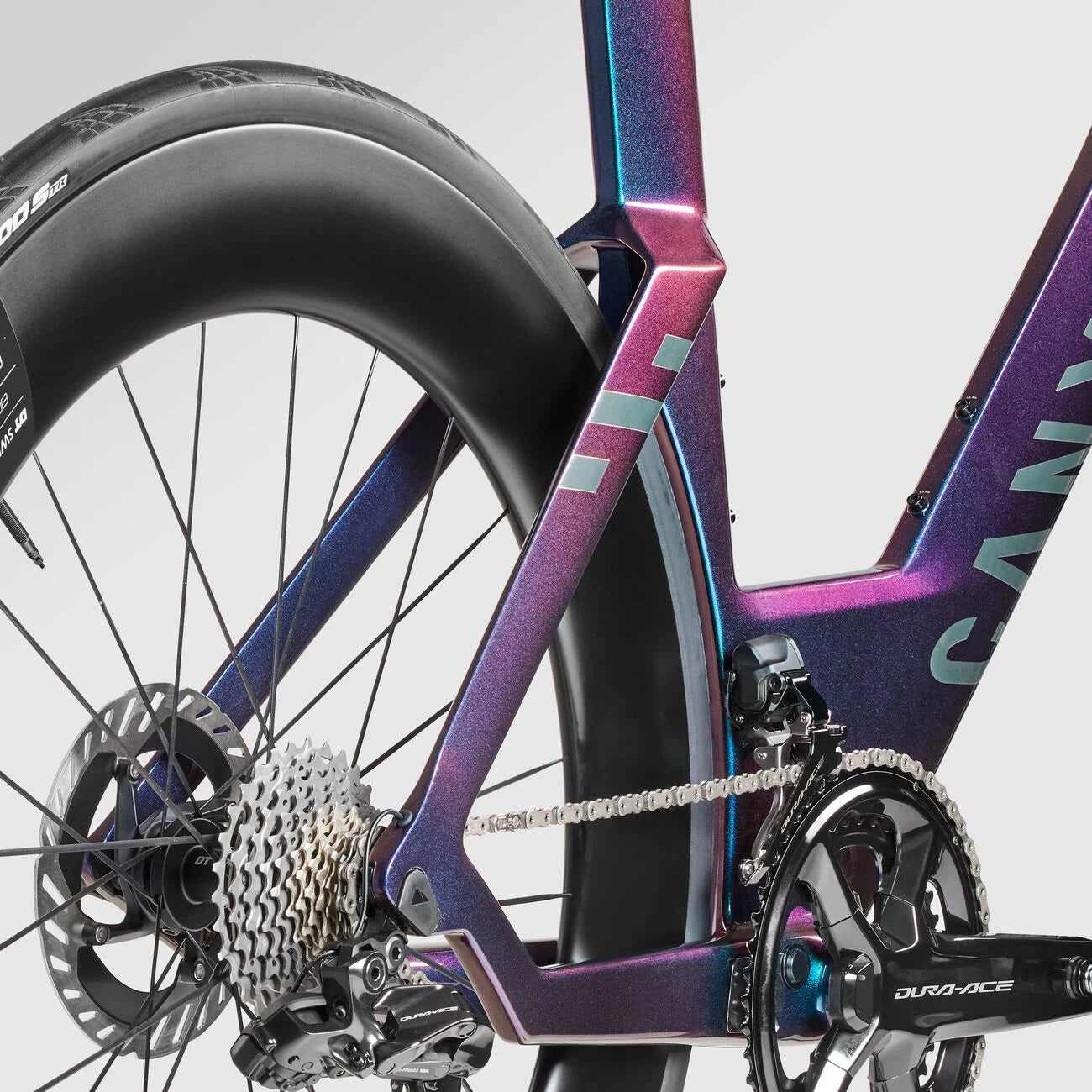

Aerodynamic seatstays
With their wing-like profile, the seatstays of the Speedmax don’t just look the part, they are also super aero thanks to their CFD-optimised design. And with their premium CFR branding, there’s no mistaking that this frame is the very best that Canyon have to offer.

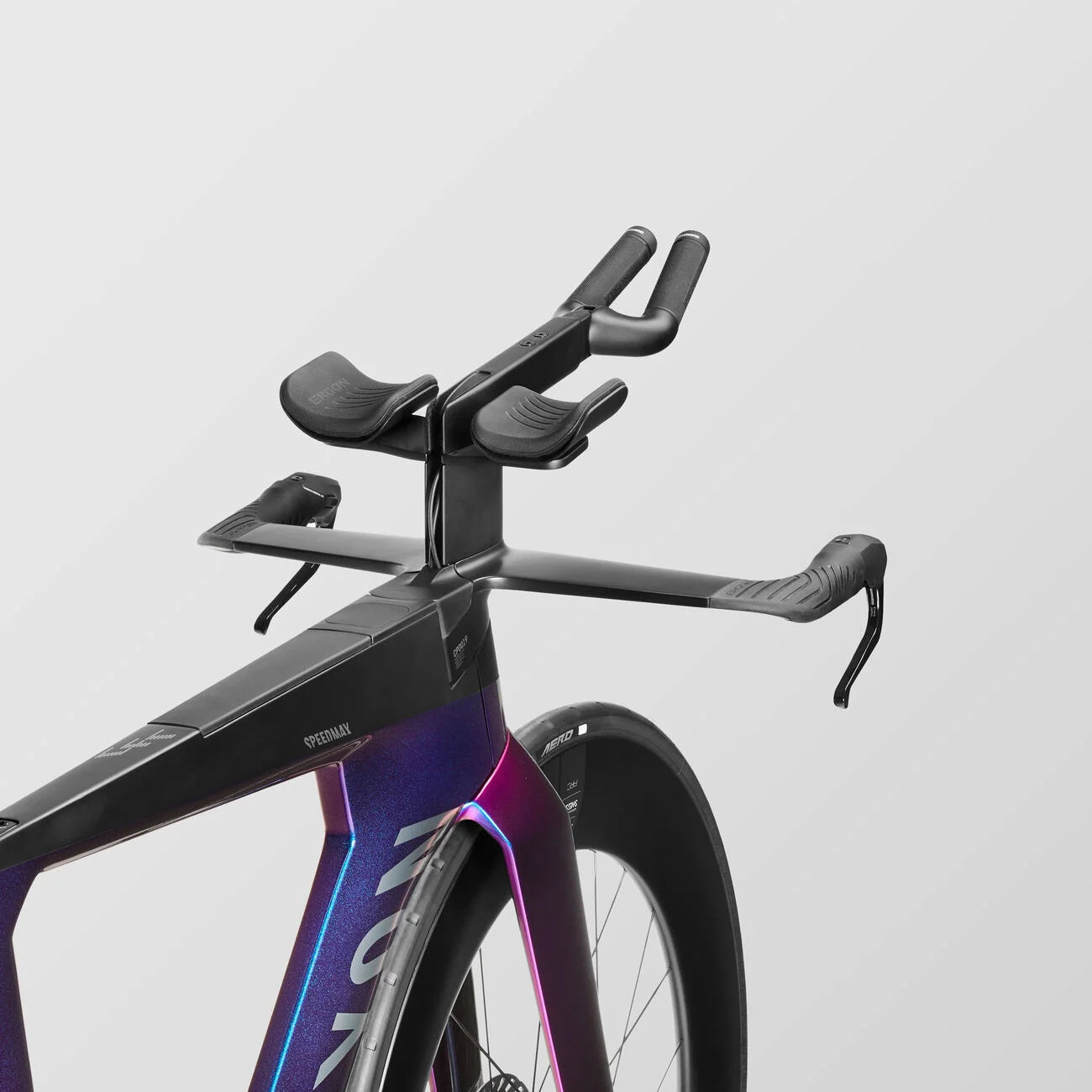

Adjustable cockpit
This highly adjustable, high-end cockpit comes supplied with a fitting kit, so you can adjust your fit to perfection. The premium grips deliver performance, comfort, and aesthetics in equal measure, damping vibrations and giving you plenty hand grip in wet and dry conditions alike.

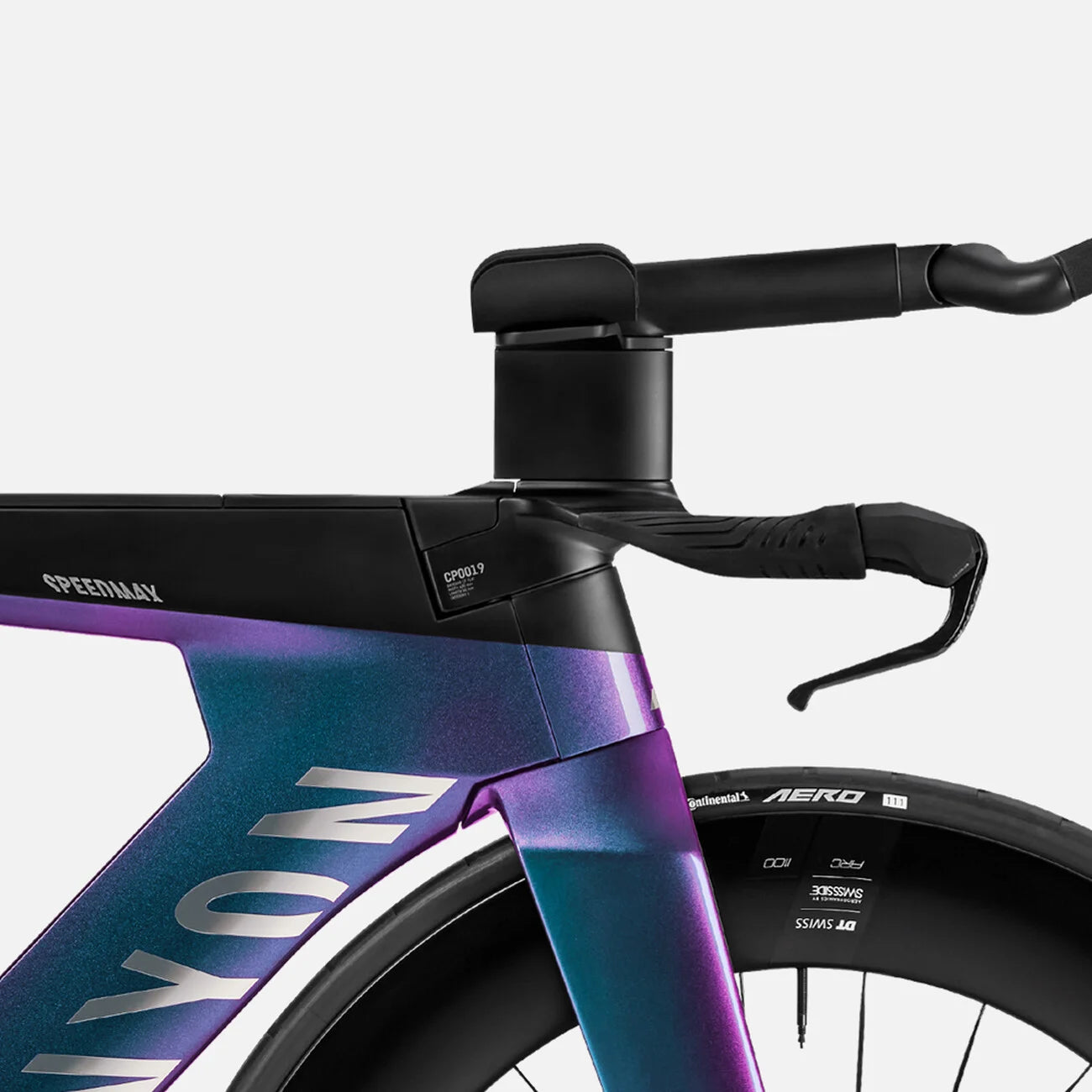

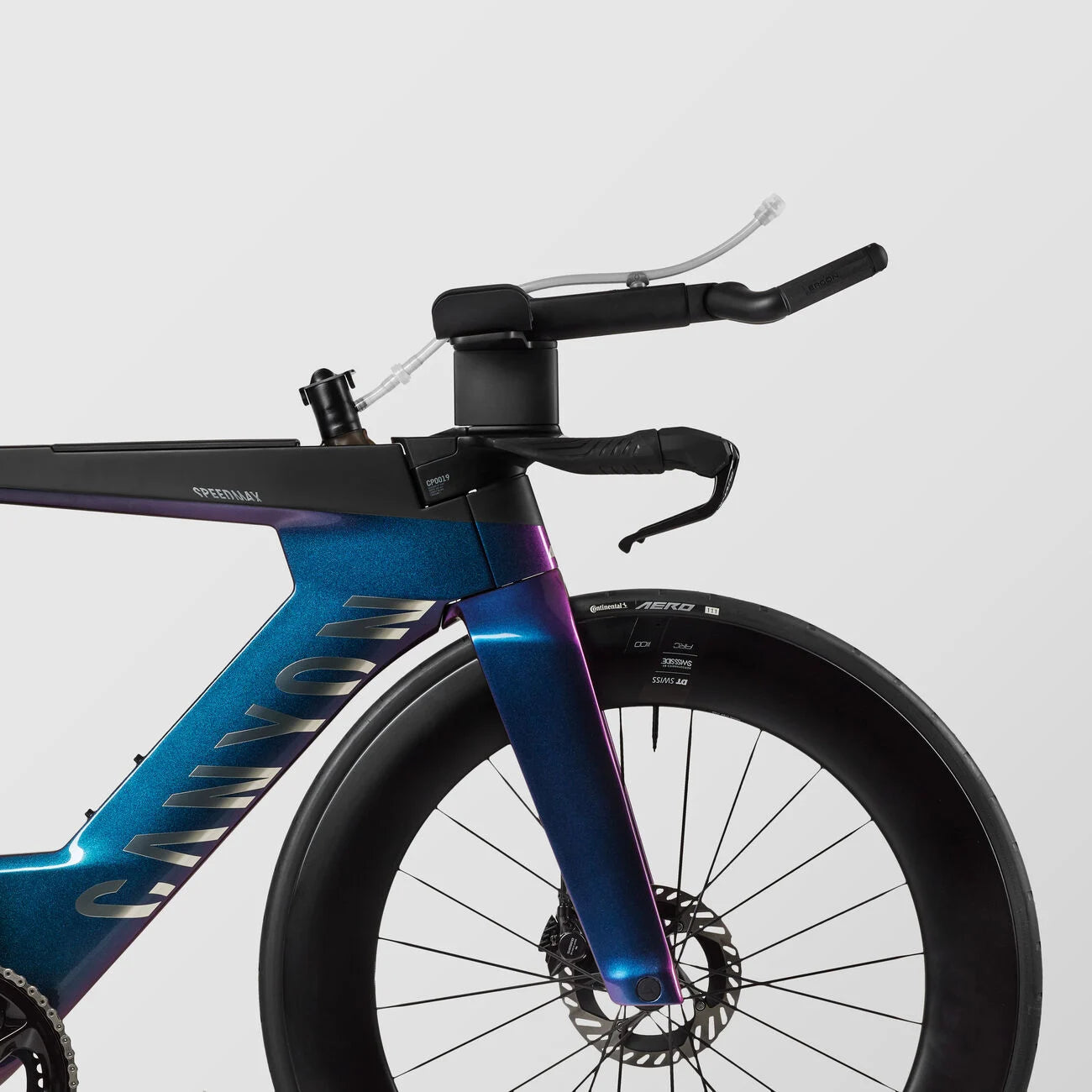

An aerodynamic integrated hydration system
Stay hydrated easily: access your drink without removing your hands from the bar or changing your riding position. Developed in collaboration with Hydrapak, this hydration system is perfectly integrated into the downtube, creating zero additional drag. The system consists of a hydration bladder, a drinking tube, and bite valve.
The best. Better.
Jan Frodeno. Canyon Bicycles. The partnership that changed triathlon forever. We first joined forces in 2015: the top engineers in the industry, collaborating with the greatest triathlete of all time, united by the same goal. To take the best bike, to be the best athlete – and never stop levelling up. The result? The Speedmax, the benchmark triathlon bike on the planet today.
The World Championship-winning bike
To win a Triathlon World Championship, you have to be truly elite across the board. That goes for bikes as well as athletes. Raced to victory at the 2023 Triathlon World Championships by Sam Laidlow, the Speedmax CFR is the premier bike in triathlon today. Period.
Components
FRAME
Frame
- Canyon Speedmax CFR Disc
- Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard.
- Axle dimension: 12x142 mm
- Tyre Clearance: 30 mm
- Material: Carbon (CFR)
Fork
- Canyon FK0080 CF Disc
- Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre Clearance: 30 mm
- Material: Carbon (CF)
Seat Clamp
- Canyon GP0209-01 Seatclamp
DRIVETRAIN
Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano Dura-Ace Di2 R9250, 12-speed
- Cage length: long
- Weight: 215 g
Front Derailleur
- Shimano Dura-Ace Di2 R9250
- Weight: 96 g
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 40 g
Cassette
- Shimano Dura-Ace R9200, 12-speed, 11-30
- Number of sprockets: 12
- Range: 11-30
Crank
- Shimano Dura-Ace R9200
- Number of chainrings: 2
Bottom bracket
- Shimano Pressfit BB92
- Bottom bracket standard: PF 86,5
- Weight: 200 g
Chain
- Shimano CN-M9100 12s
BRAKES
Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180
- Weight: 263 g
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180
- Weight: 264 g
Brake Rotor
- Shimano RT-CL900
- Size: 160 mm
WHEELS
Wheel
- DT Swiss ARC 1100 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 80 mm
- Rim material: Carbon
- Weight: 820 g
Wheel
- DT Swiss ARC 1100 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 80 mm
- Weight: 942 g
Tyre
- Schwalbe Pro One, 25mm
- Width: 25mm
- Weight: 235 g
Tyre
- Schwalbe Pro One, 28mm
- Width: 28mm
- Weight: 250 g
Thru Axle
- DT Swiss through axle with Lever
- Axle dimension: 12x100 mm
Thru Axle
- DT Swiss through axle w/o Lever
- Axle dimension: 12x142 mm
COCKPIT
Cockpit
- Canyon CP0019 Triathlon Flatbar short
- Aerodynamically optimised triathlon cockpit with adjustable height, width, reach, and grip. Ergonomically optimised for maximum control at high speeds in a compact riding position.
- Material: Carbon (CF)
- Weight: 350 g
Aero Bar
- Canyon GP0226 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
SEAT
Saddle
- Fizik Transiro
- Gender: Unisex
- Weight: 240 g
Seatpost
- Canyon SP0049 Aero Seatpost
- Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile.
- Weight: 295 g
GEOMETRY & DIMENSIONS
