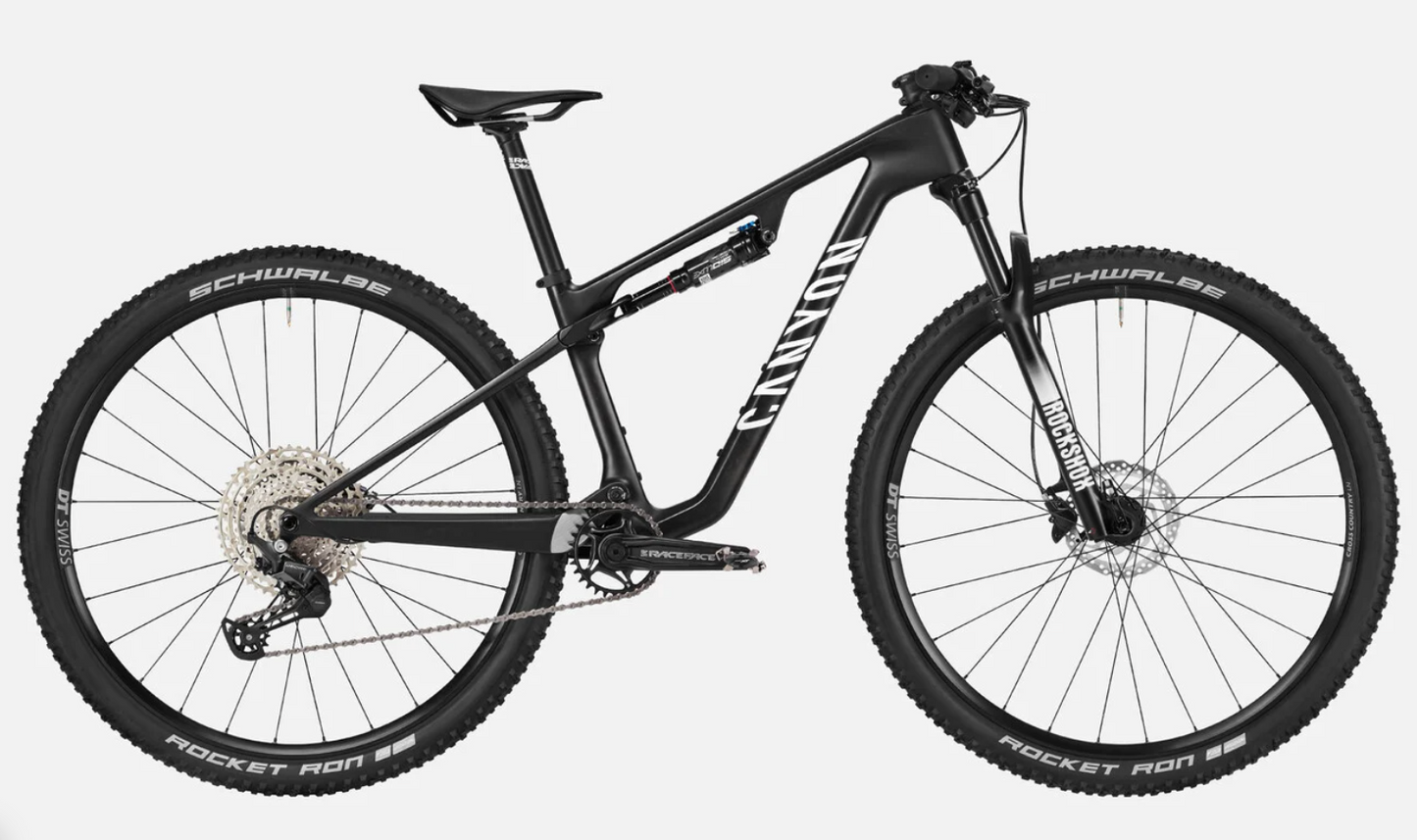

LUX WORLD CUP CF YOUNG HERO
LUX WORLD CUP CF YOUNG HERO
100mm of full suspension, XC performance, and World Cup heritage in a super light carbon frame. The Lux World Cup Young Hero is finished with a clever spec that’s ideal for the next gen of mountain bikers.
- Front Fork Travel: 100 mm
- Weight: 12.94 kg

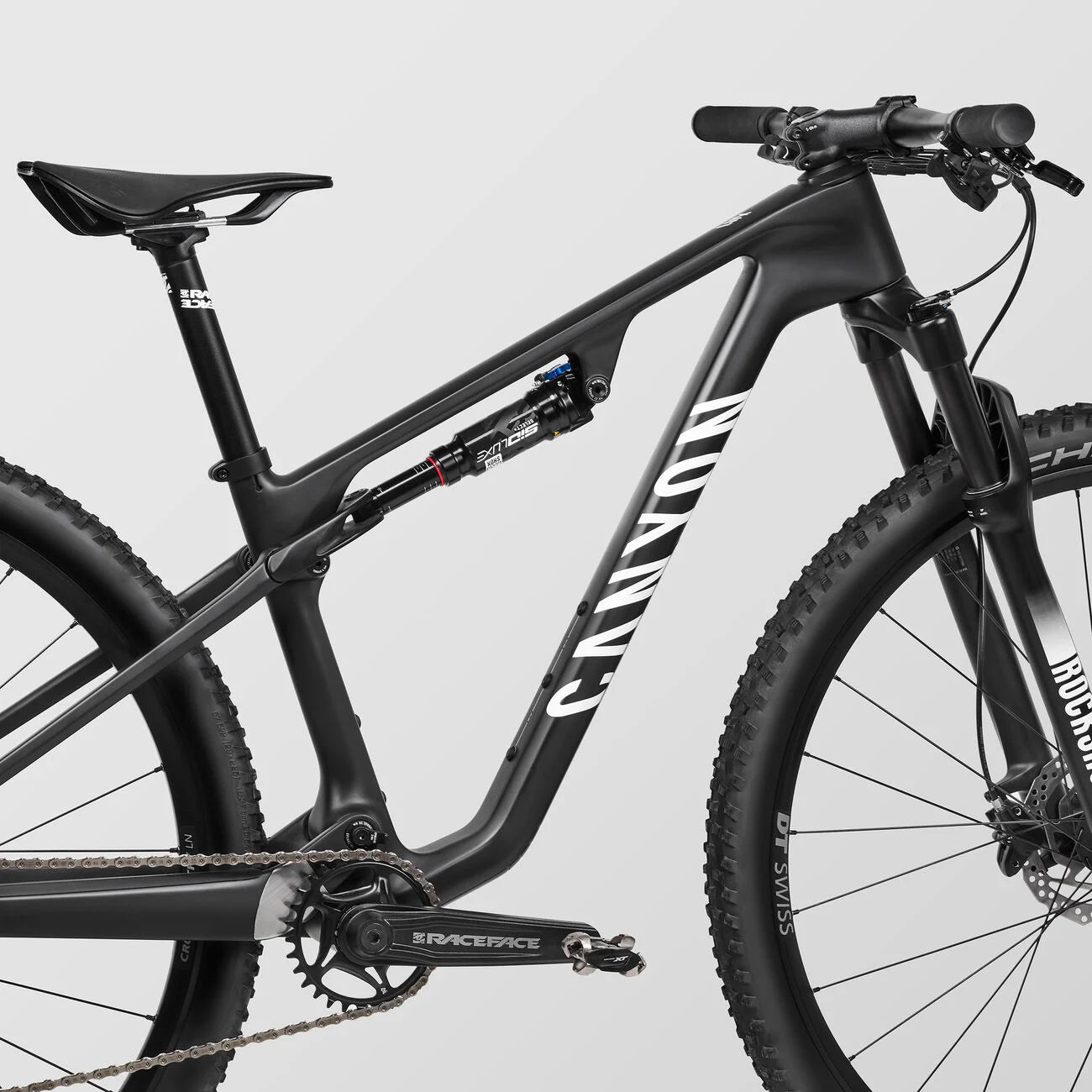

Elite carbon frames
A top quality carbon frame, made using the same materials and processes as the ones the Canyon pros ride, helps young riders develop vital skills. Lightweight and durable, this frame is also feature packed – each bike comes with an integrated seatpost clamp, Impact Protection Unit, and dropper post compatibility.

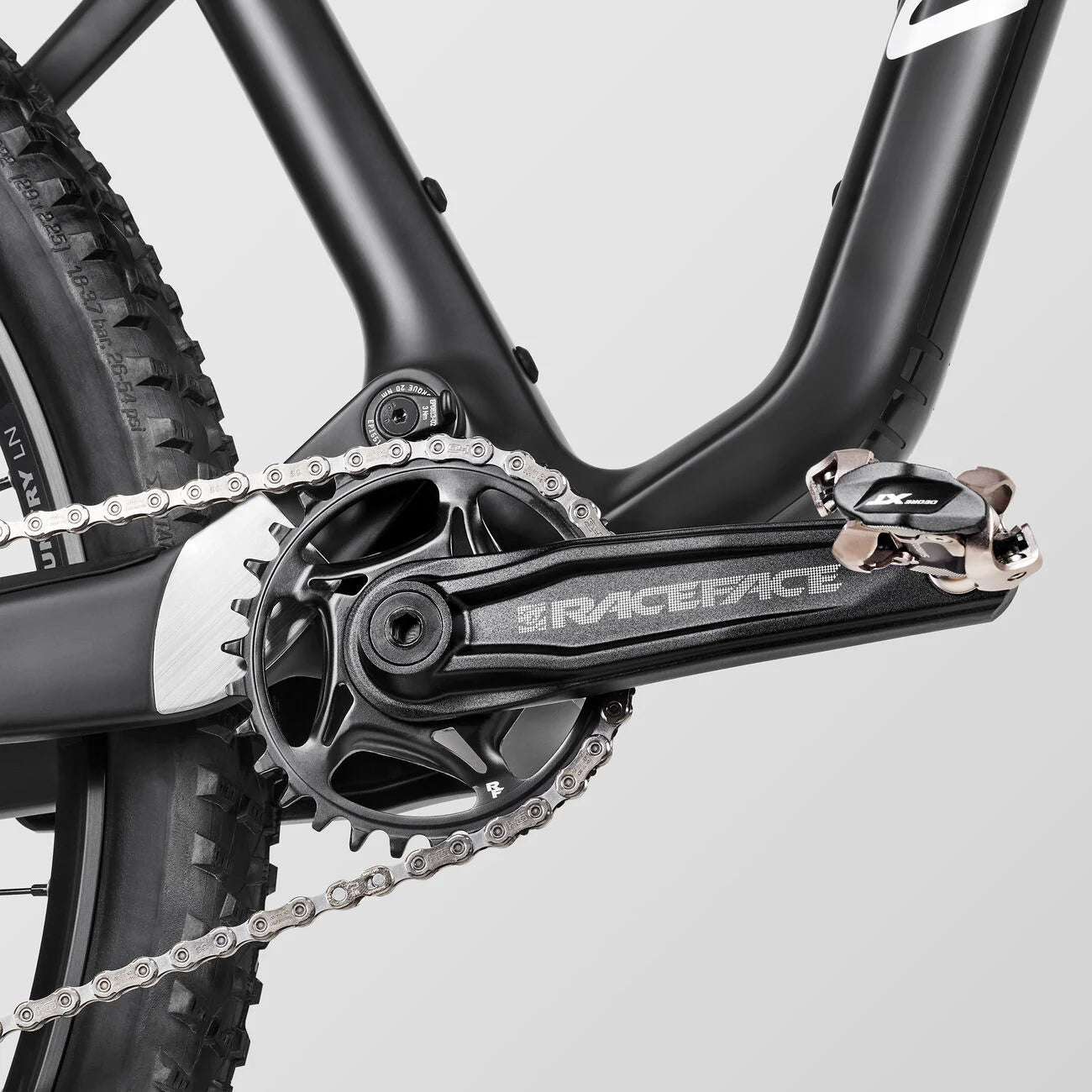

The right parts for the job
This bike comes with a cleverly chosen spec that suits smaller mountain bikers. Shorter cranks help prevent pedal strikes on the trails and while the narrower bars provide a more comfortable fit, the gear ratio is best suited to younger riders who need easier gears to climb uphill, and the tuneable fork lets them get all of the performance that you'd expect from our adult bikes.

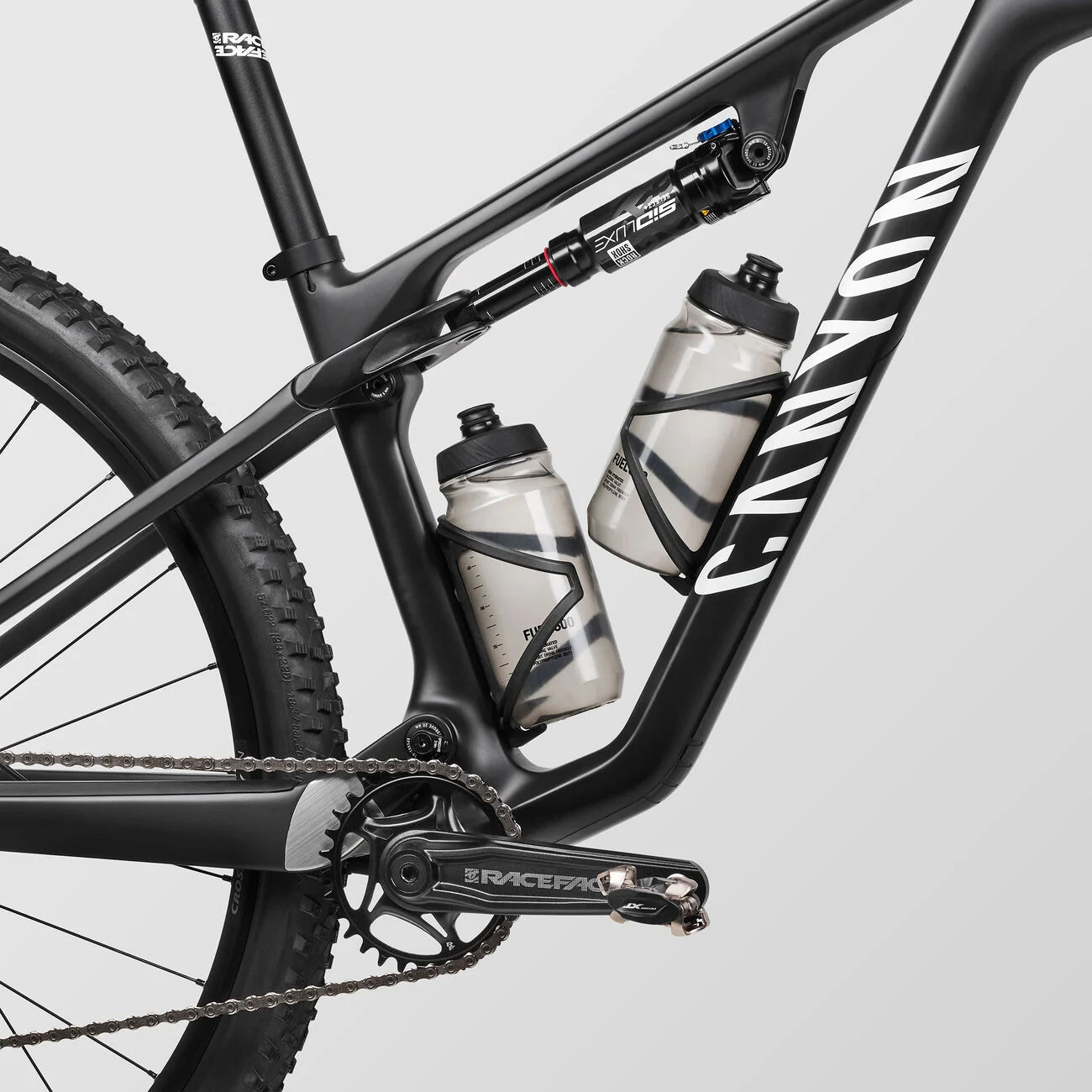

Stay hydrated
Leave your hydration pack at home and stay hydrated on the longest races. All Lux World Cup CFR models have space for mounting two large bottles – even on the smallest bikes in size XS. There’s ample room in every frame size, although we do recommend Canyon Sideloader cages for maximum ease of access.

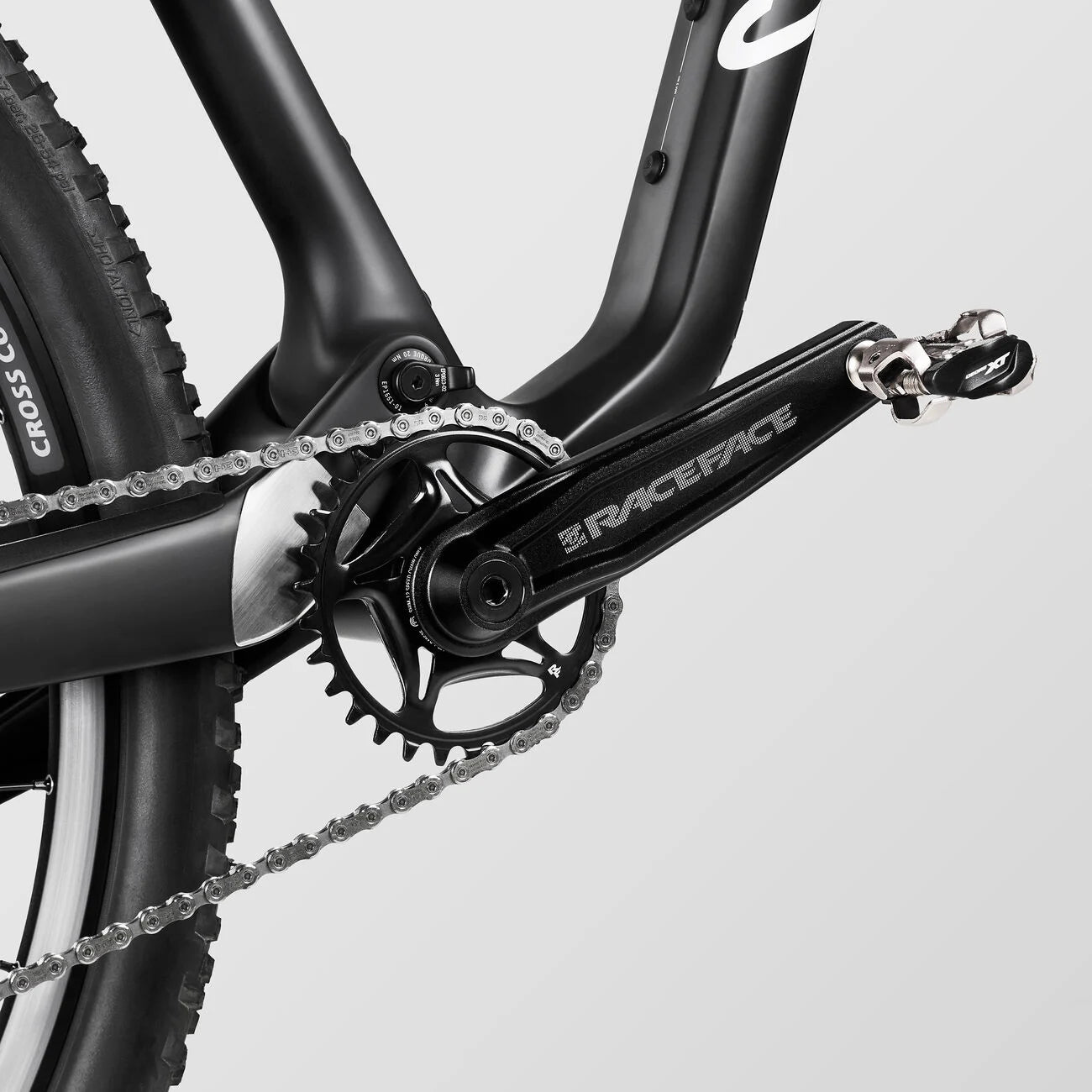

Catch slipped chains
Pedalling uphill in the wrong gear and changing to an easier one can put a lot of strain on the drivetrain. If the pressure is strong enough, sometimes the chain can fall off, damaging the frame and causing riders to stumble. The chain catcher on the Lux World Cup Young Hero helps to prevent this and keeps riders on track.

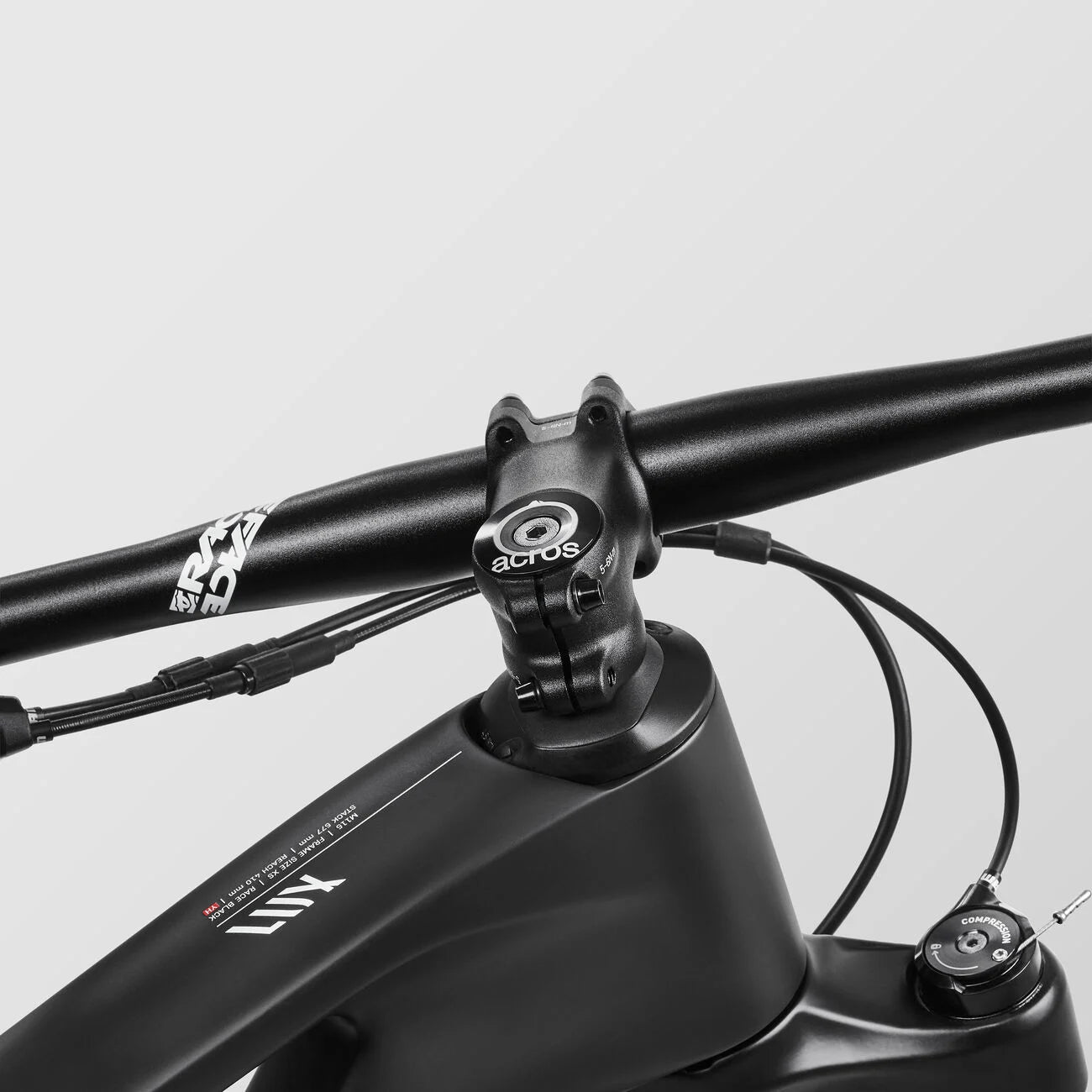

Impact Protection Unit 2.0
Our latest IPU – short for Impact Protection Unit – is perfectly integrated into the frame at the headset and protects the top tube from over-rotating handlebars in the event of a crash. The system doesn’t affect the bike’s manoeuvrability – you can still turn the bars far enough to nail the tightest switchbacks on the course.
Follow the pros
Ride like your Canyon heroes on a bike that was designed for the pros and ridden by you. Become the next XC star like Loana Lecomte and Luca Schwarzbauer on this lightweight frame that comes in an accessible package thanks to a clever build that allows the bike to progress with your skills.
Engineered for young heroes
Smaller riders have big ambitions, so we've used the exact same construction techniques and materials that feature on the bikes ridden at the world's top races. Delivering the perfect fit for aspiring riders to build speed, this bike puts them in control and in charge.
Components
FRAME
Frame
- Canyon Lux World Cup CF
- Lightweight full-suspension carbon XC frame, featuring the World Championship-winning design DNA of the flagship Lux World Cup CFR.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
Rear Shock
- RockShox SIDLuxe Select+ Remote
- Weight: 294 g

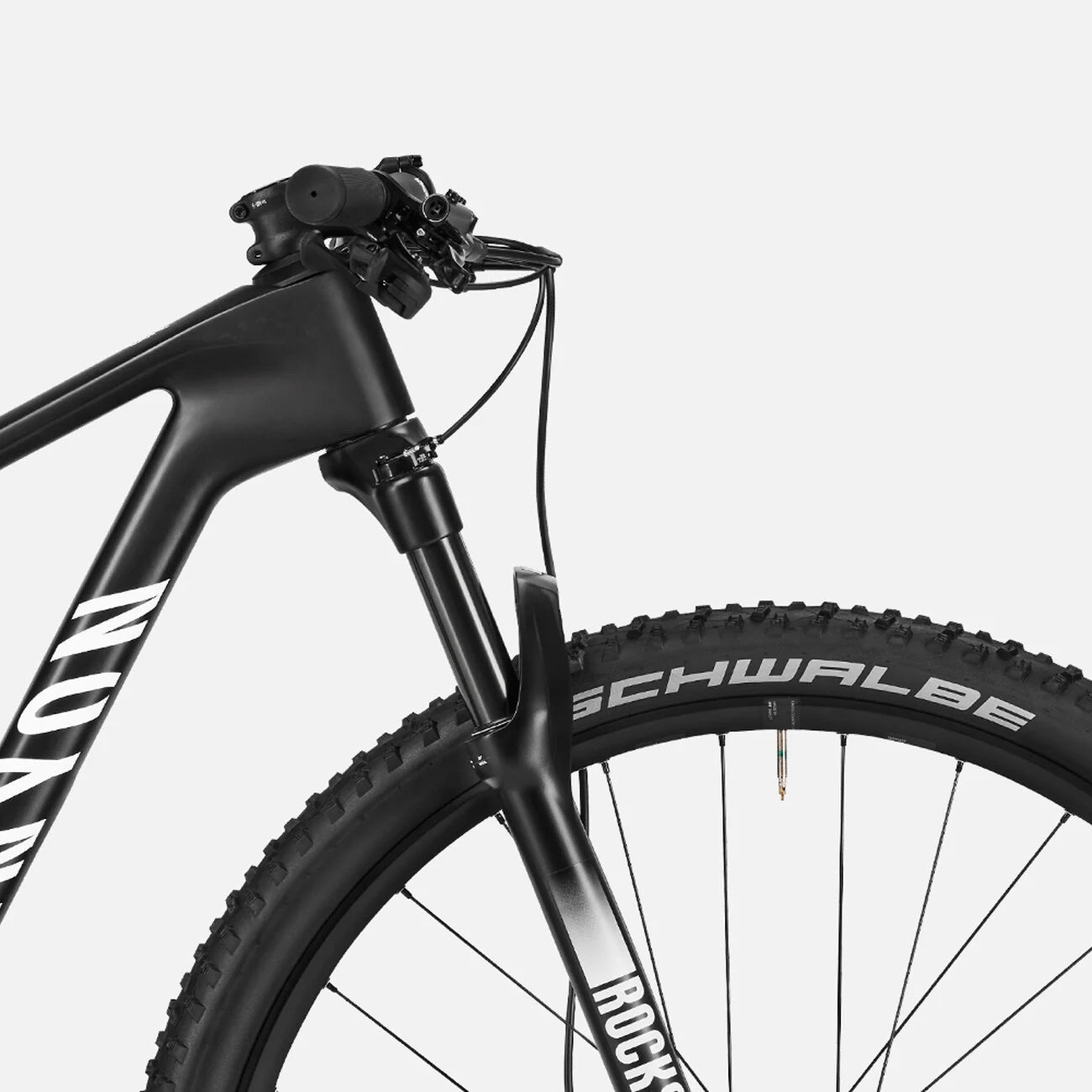

Suspension Fork
- RockShox Recon RL Remote
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 2.50 kg
Seat Clamp
- Canyon G5
DRIVETRAIN
Rear Derailleur
- Shimano Deore M6100
- Cage length: long
- Weight: 317 g
Shift Lever
- Shimano Deore M6100 12s
- Weight: 139 g
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51 12S
Crank
- RaceFace Ride
- Number of chainrings: 1
Bottom bracket
- RaceFace Bottom Bracket
- Bottom bracket standard: PF 92
Chain
- Shimano CN-M6100
BRAKES
Disc Brake
- Shimano MT200
Disc Brake
- Shimano MT200
Brake Rotor
- Shimano RT26
- Size: 160 mm
WHEELS
Wheel
- DT Swiss LN XC
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Rim material: Aluminium
- Weight: 976 g
Wheel
- DT Swiss LN XC
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Rim material: Aluminium
- Weight: 1.10 kg
Tyre
- Schwalbe Rocket Ron 2.25''
- Width: 2.25"
Thru Axle
- Canyon Quixle Trough Axle QR 174x12
- Axle dimension: 12x148 mm
COCKPIT
Stem
- Canyon Iridium
- Fork steer tube diameter: 1 1/8"
Handlebar
- RaceFace Ride Flatbar
- Width: 700 mm
Grips
- Canyon push-on Grips
SEAT
Saddle
- Selle Italia Model X
- Gender: Unisex
- Weight: 315 g
Seatpost
- RaceFace Ride
- Clamp diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 295 g
GEOMETRY & DIMENSIONS
