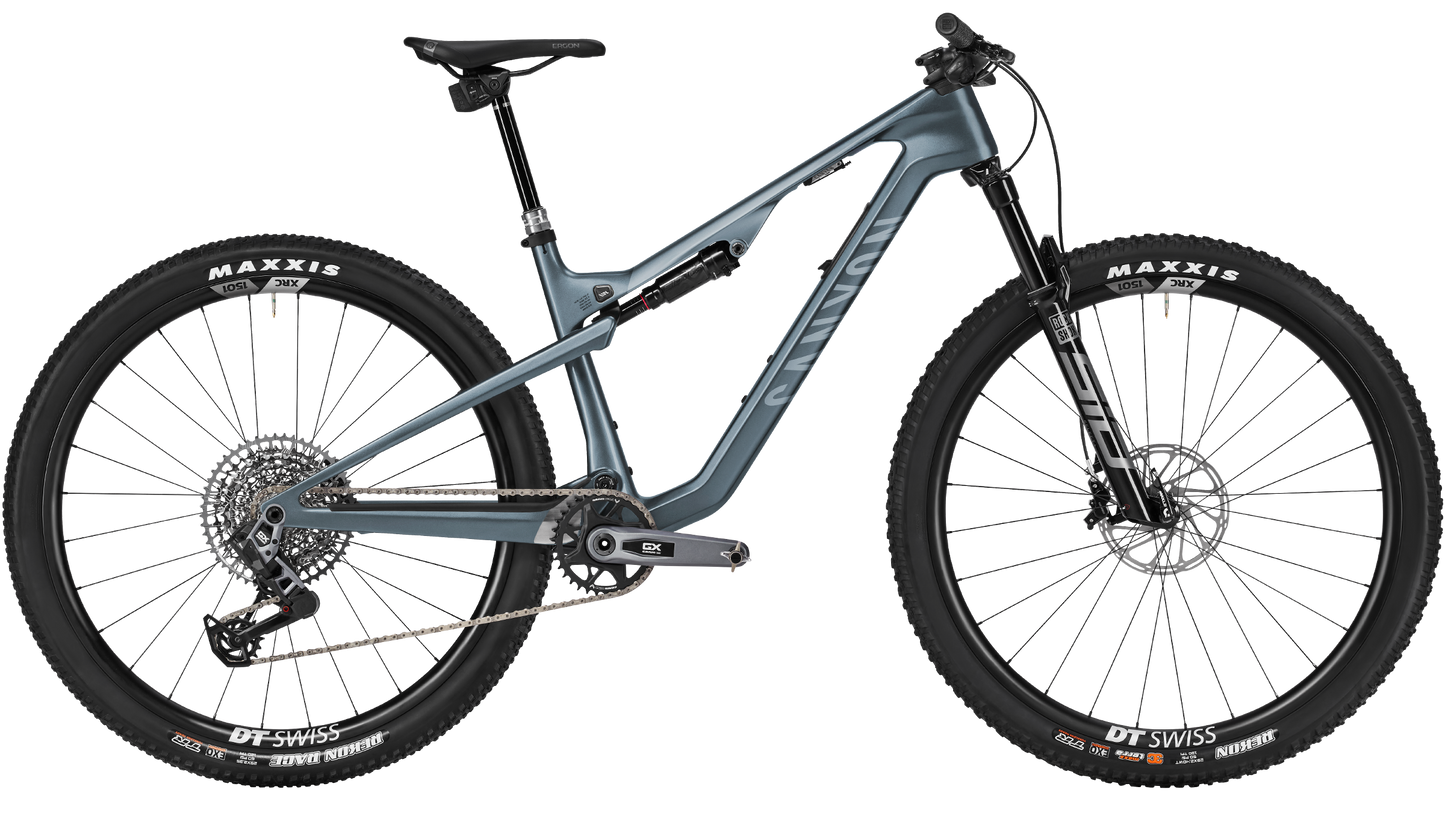

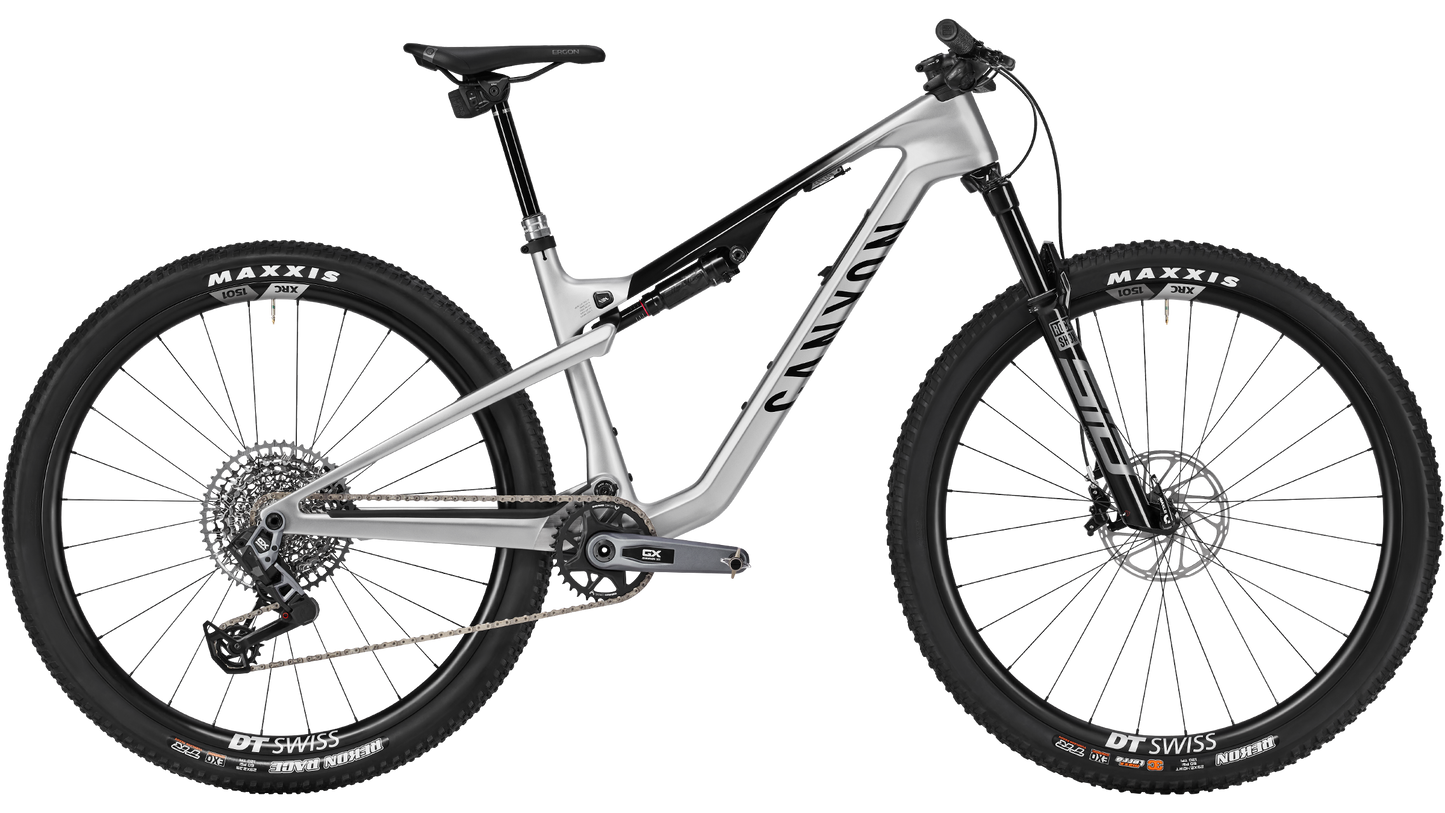

LUX TRAIL CF 9
LUX TRAIL CF 9
Win on Sunday, shred on Monday. Combining wireless SRAM shifting with DT Swiss carbon wheels and frame-integrated storage, the Lux Trail CF 9 is race fast, and trail tough.
SRAM GX Eagle AXS Transmission, Rock Shox SID Select+ Remote
- Front Fork Travel: 120 mm
- Weight: 12.45 kg

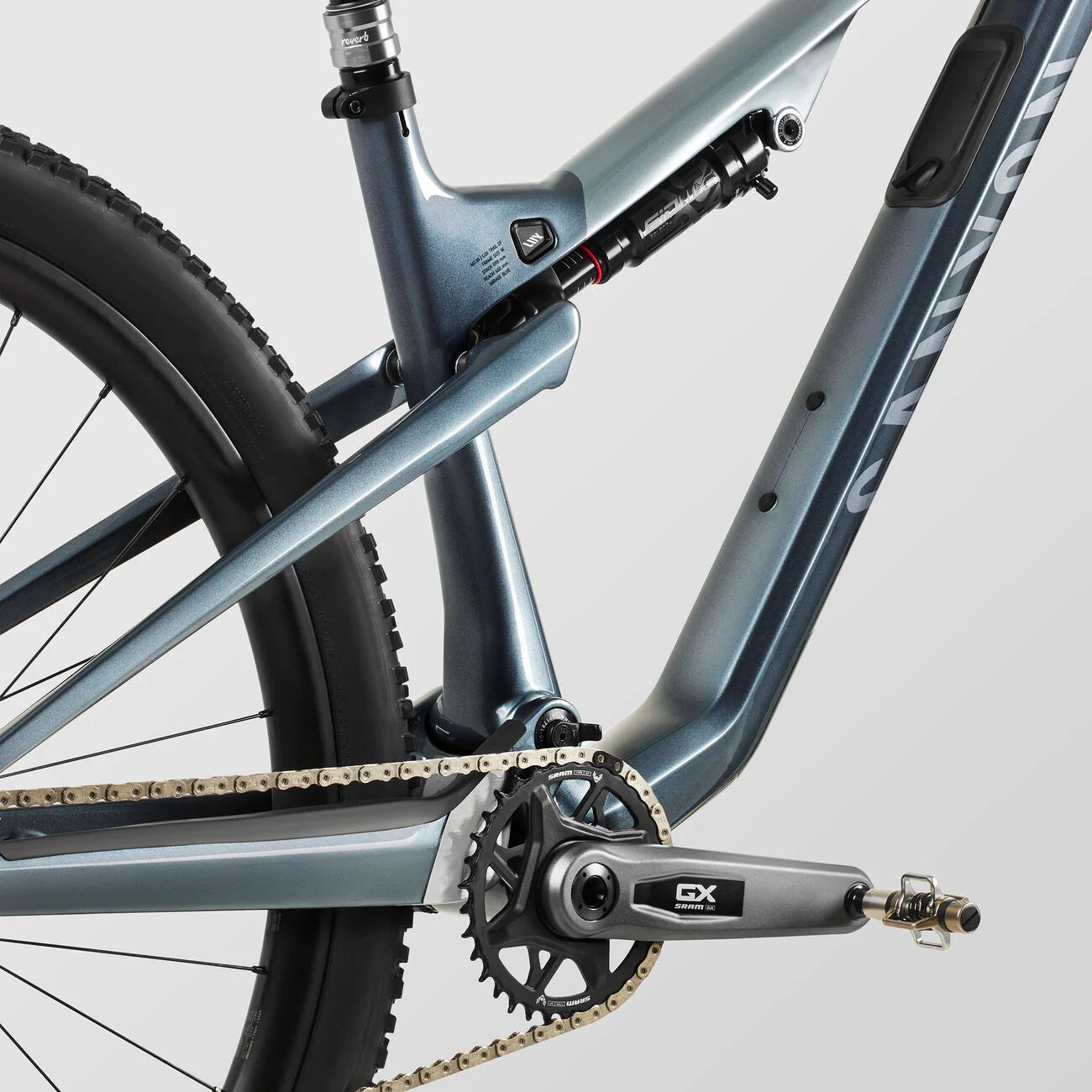

Total control linkage
Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.

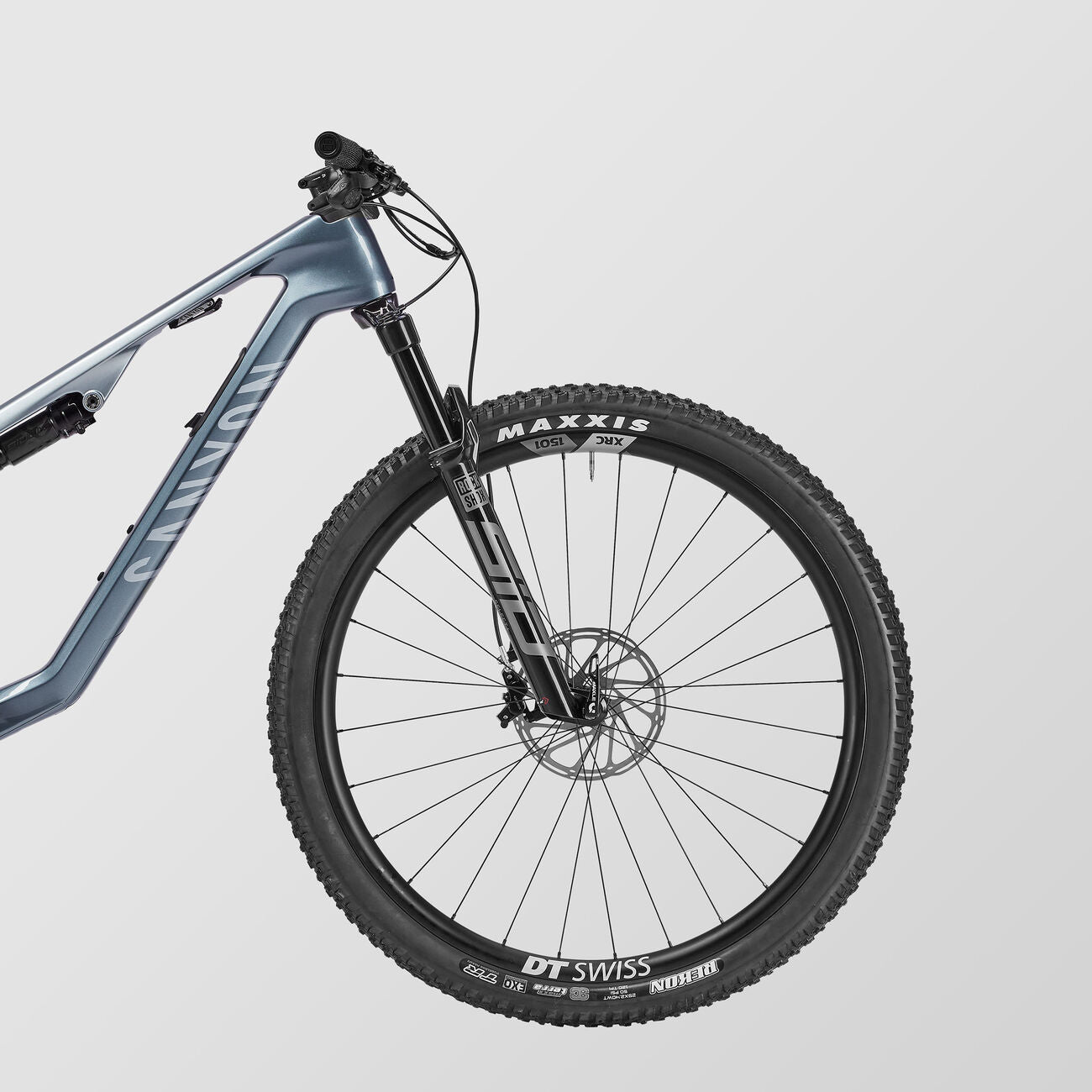

The right angles
We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.

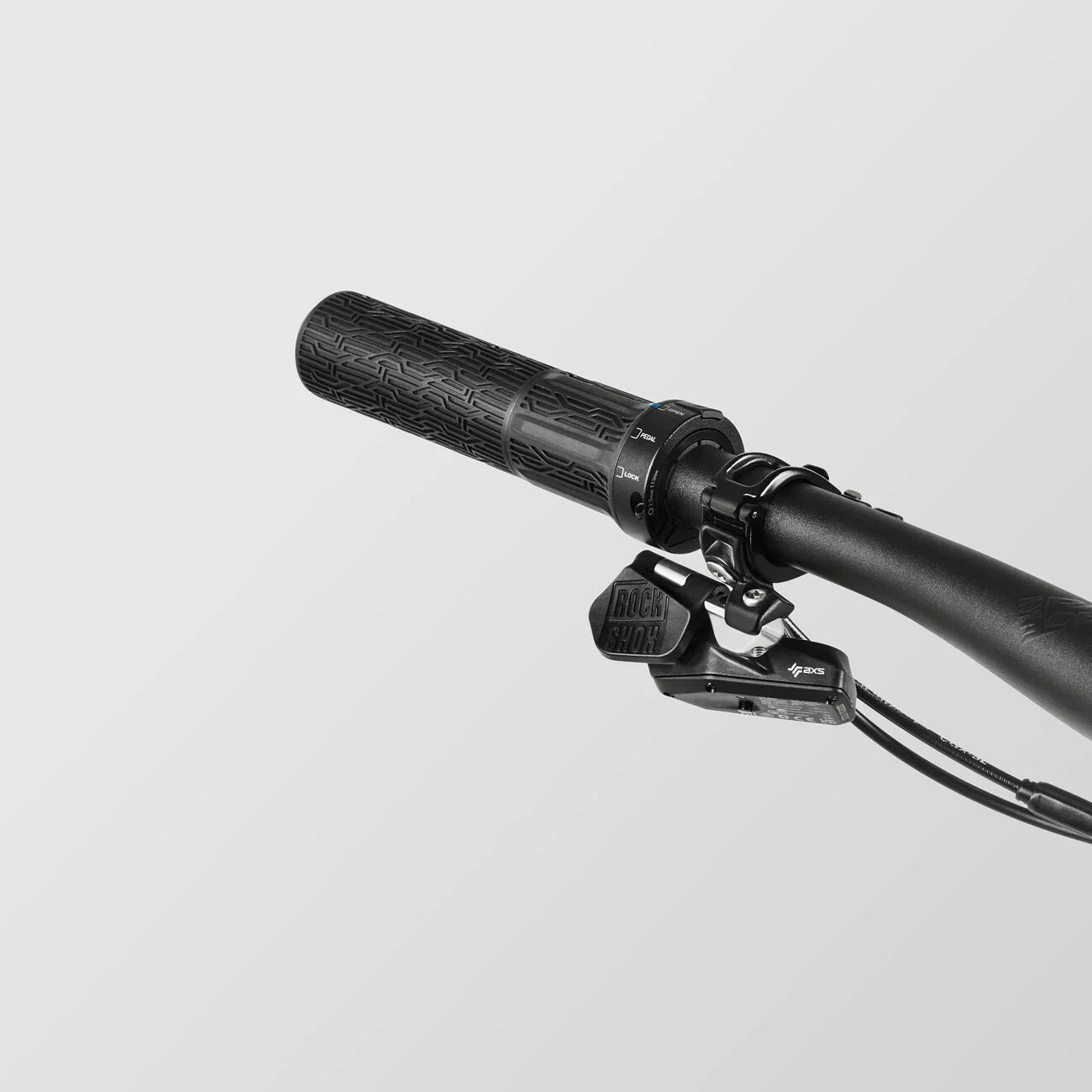

Remote lockout suspension
Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

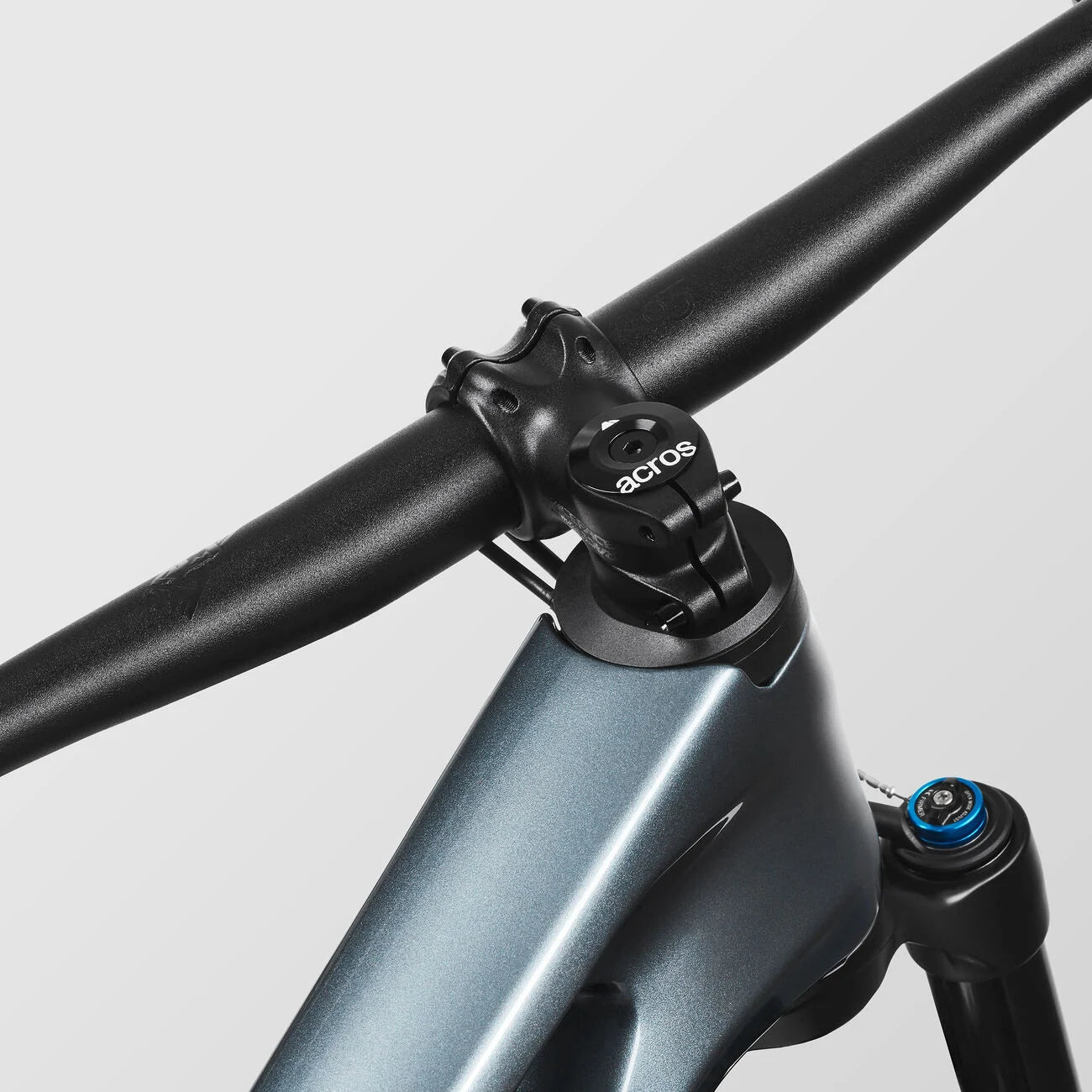

Proper frame protection
Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.

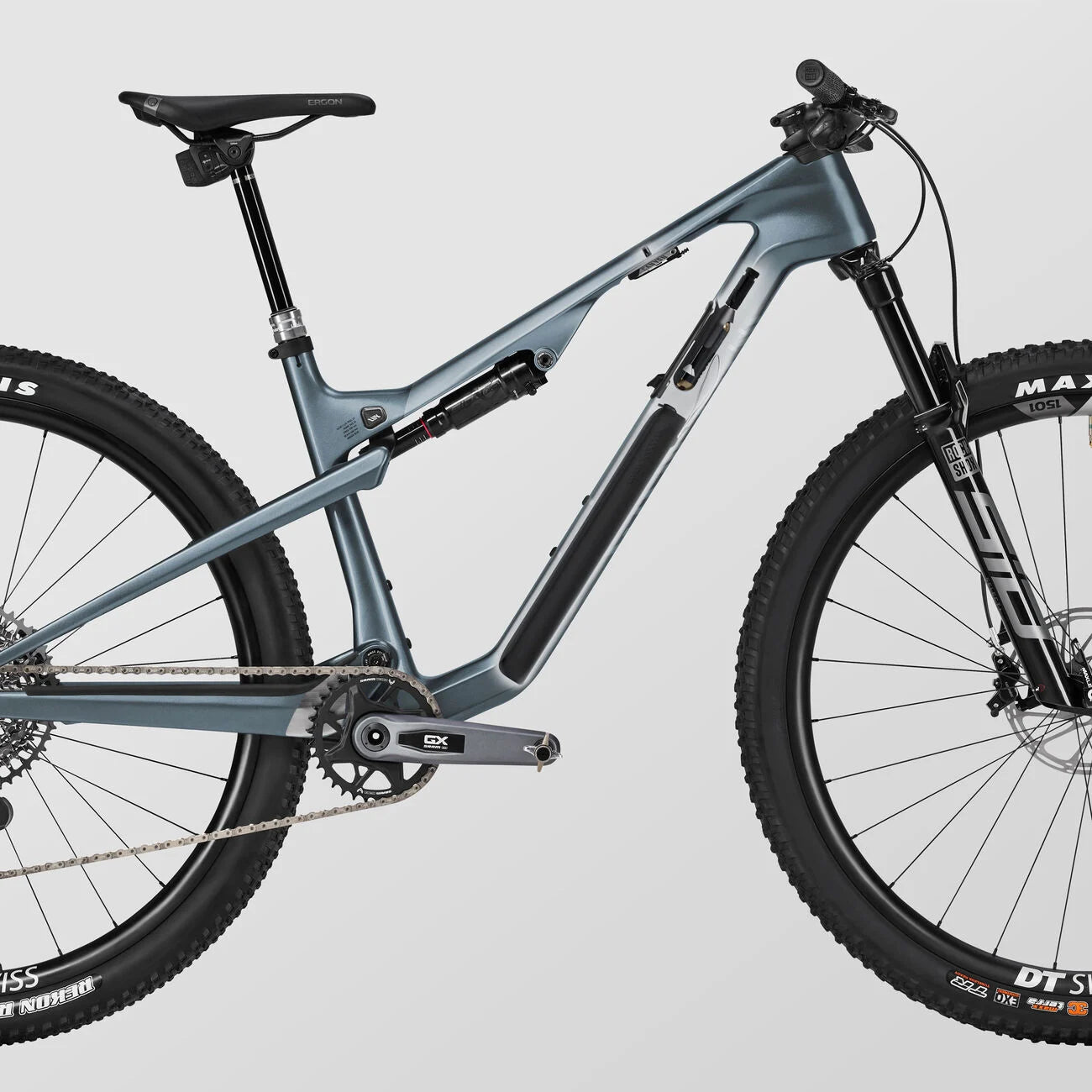

Clever storage
The fix is always within reach on the Lux Trail. Store a mini-tool in the top tube and Canyon Sahmurai Sword Plug Set in the bar ends for fast fixes.

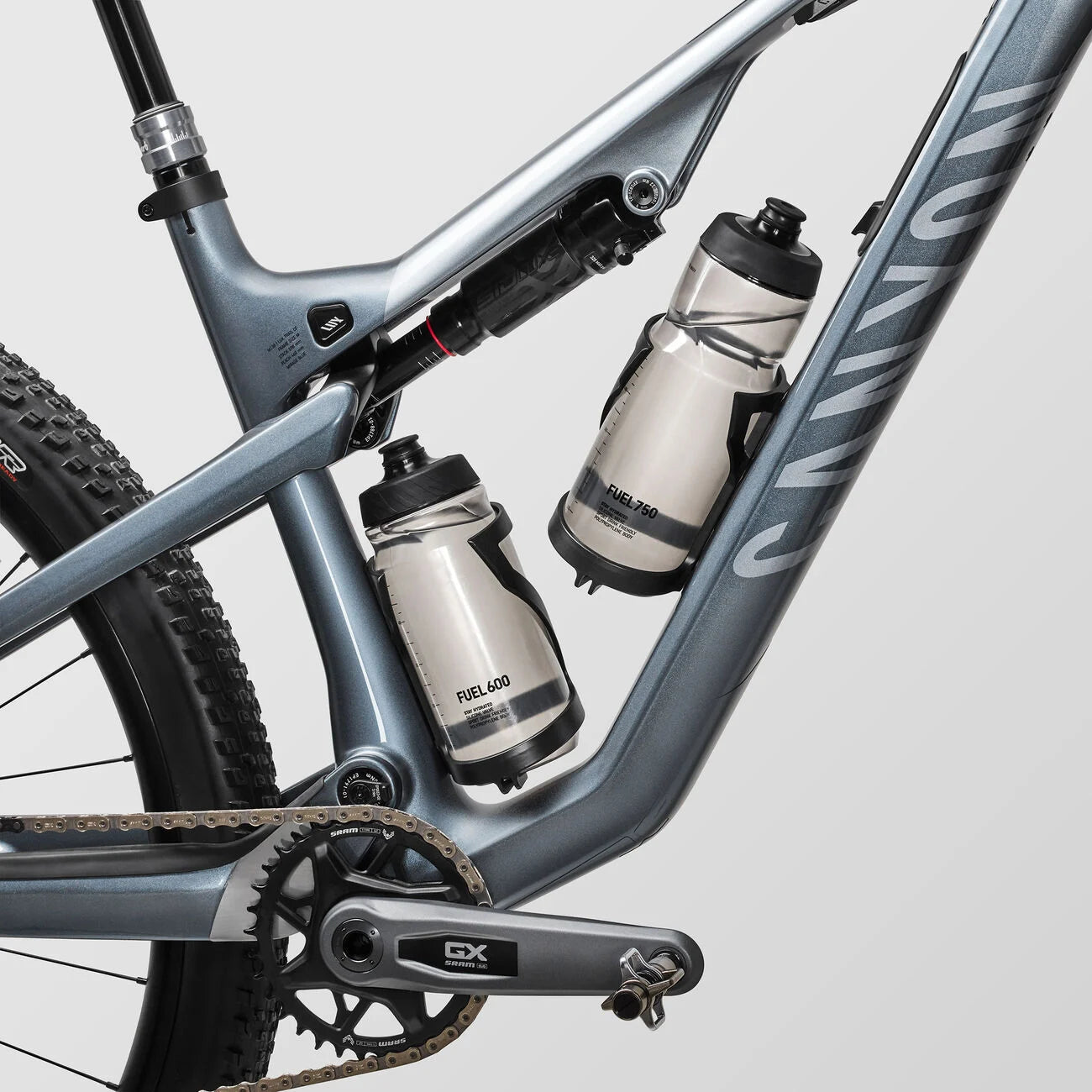

Drink more water
Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.
Components
FRAME
Frame
- Canyon Lux Trail CF
- A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
Rear Shock
- Rock Shox SIDLuxe Select+ Remote
Suspension Fork

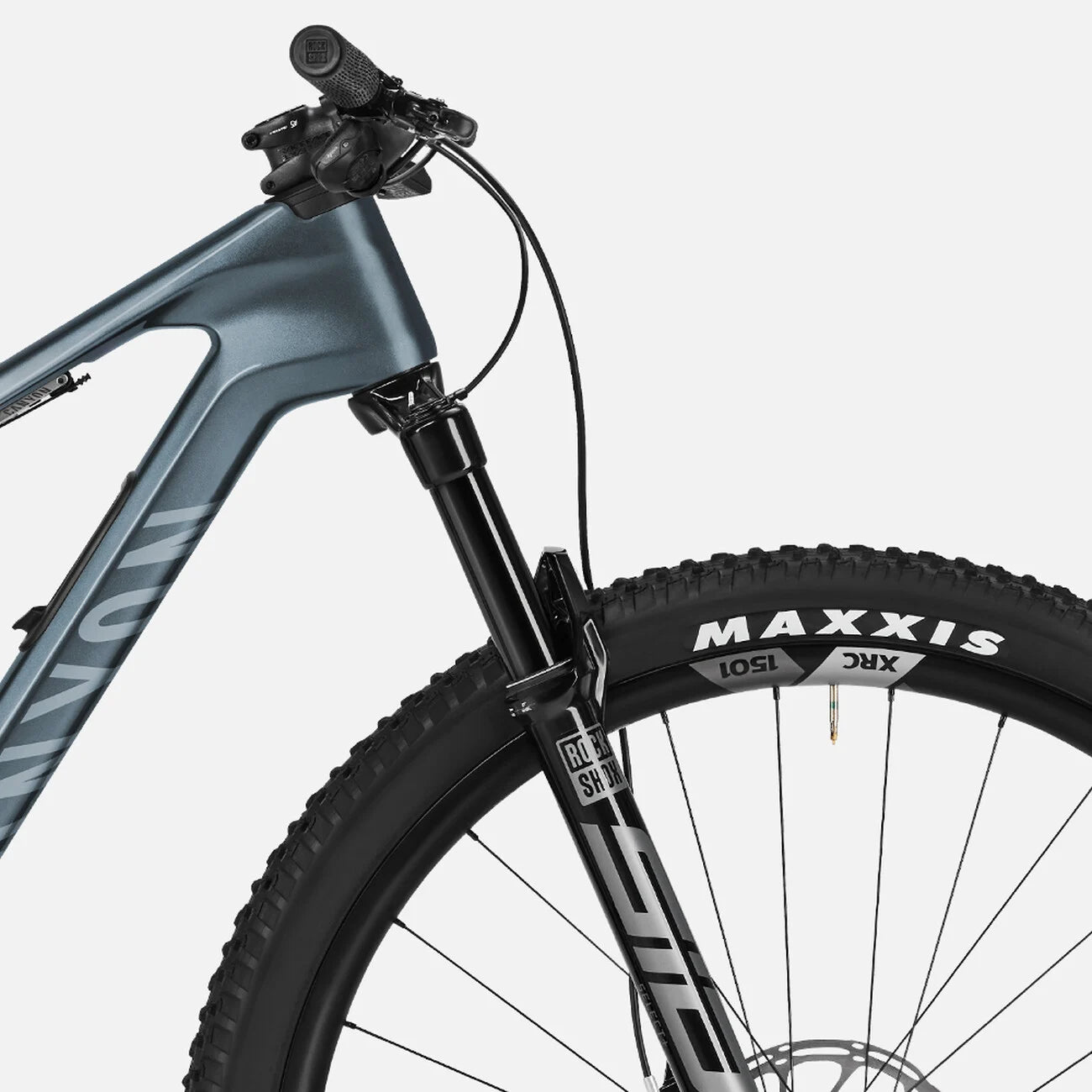

- Rock Shox SID Select+ Remote
- Axle dimension: 15x110 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1.56 kg
DRIVETRAIN
Battery
- SRAM Powerpack
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight: 462 g
Shift Lever
- SRAM AXS Pod
Shift Lever
- SRAM AXS POD Bridge
Cassette
- SRAM XS 1275
- Number of sprockets: 12
Crank
- SRAM GX Eagle
- Number of chainrings: 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 5 g
Chain
- SRAM GX Eagle Transmission
BRAKES
Disc Brake
- SRAM Level Silver Stealth 4 Piston
- Number of pistons: 4
Disc Brake
- SRAM Level Silver Stealth 2 Piston
- Number of pistons: 2
Brake Rotor
- SRAM Centerline Rounded
- Size: 160 mm
- Weight: 113 g
Brake Rotor
- SRAM Centerline Rounded
- Size: 180 mm
- Weight: 168 g
WHEELS
Wheel
- DT Swiss XRC 1501 Spline S12
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 728 g
Wheel
- DT Swiss XRC 1501 Spline S12
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Weight: 816 g
Tyre
- Maxxis Rekon 3C Exo 2.4
- Width: 2.4"
Tyre
- Maxxis Rekon Race Dual Exo 2.35
- Width: 2.35"
Thru Axle
- Canyon Quixle Trough Axle QR 174x12
- Axle dimension: 12x148 mm
COCKPIT
Stem
- Race Face Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- Race Face Ride Riserbar
- Clamping diameter: 35,0 mm
- Width: 760 mm
- Rise: 10 mm
SEAT
Saddle
- Ergon SM10 Pro
- Gender: Male
- Weight: 270 g
Seatpost
- Rock Shox Reverb AXS
- Clamp diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 710 g
Seat Clamp
- Canyon G5
GEOMETRY & DIMENSIONS
