LUX TRAIL CF 8

LUX TRAIL CF 8

With its long reach, flat steering angle, wide-rim wheels, and 120 mm of travel, this is an outstanding down-country bike that climbs quick and delivers plenty descending capability too.

Shimano DEORE XT M8100, FOX 34 SC Performance Elite

  • Front Fork Travel: 120 mm
  • Weight: 12.48 kg

Regular price R 133,000.00
Regular price Sale price R 133,000.00
Sale Sold out
Taxes included.

included: Canyon pricing in South Africa includes all courier costs from Germany, import duties, customs costs, handling fees and a permanent sa technical support team. Your bike will be delivered to your door or to one of our service centres.

sales and exchange rate: Please note that the above pricing is subject to change. quotations may vary due to sudden exchange rate fluctuations, price increases or discounts offered by Canyon Global. Final pricing on order.

Color
View full details

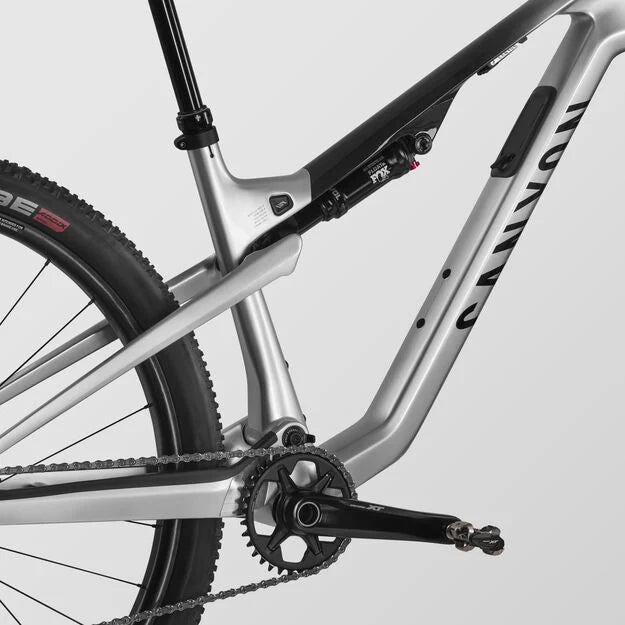

Total control linkage

Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.

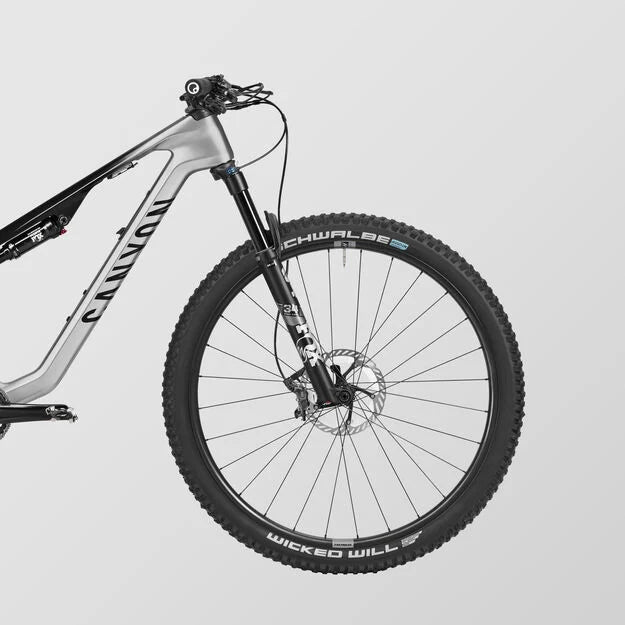

The right angles

We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.

Remote lockout suspension

Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

Proper frame protection

Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.

Clever storage

The fix is always within reach on the Lux Trail. Store a mini-tool in the top tube and Canyon Sahmurai Sword Plug Set in the bar ends for fast fixes.

Drink more water

Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.

Components

FRAME

Frame

  • Canyon Lux Trail CF
  • A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
  • Axle dimension: 12x148 mm
  • Material: Carbon (CF)

Rear Shock

  • FOX Float SL Performance Elite Remote

Suspension Fork

  • FOX 34 SC Performance Elite
  • Axle dimension: 15x110 mm
  • Stanchion Diameter: 34 mm
  • Travel: 120 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"
  • Weight: 1.52 kg

DRIVETRAIN

Rear Derailleur

  • Shimano DEORE XT M8100
  • Cage length: long
  • Weight: 286 g

Shift Lever

  • Shimano DEORE XT M8100
  • Weight: 130 g

Cassette

  • Shimano XTR CS-M9101 12s 10-51
  • Number of sprockets: 12
  • Range: 10-51 12S

Crank

  • Shimano DEORE XT M8120
  • Number of chainrings: 1

Bottom bracket

  • Shimano MT800
  • Bottom bracket standard: BSA 68/73
  • Weight: 100 g

Chain

  • Shimano CN-M8100 12s

BRAKES

Disc Brake

  • Shimano Deore XT M8100
  • Number of pistons: 2

Disc Brake

  • Shimano M8110
  • Number of pistons: 2

Brake Rotor

  • Shimano DEORE XT MT800
  • Size: 180 mm
  • Weight: 100 g

Brake Rotor

  • Shimano DEORE XT MT800
  • Size: 160 mm
  • Weight: 123 g

WHEELS

Wheel

  • DT Swiss XRC 1700 Spline
  • Axle dimension: 15x110 mm
  • Rotor mount: Center Lock
  • Weight: 791 g

Wheel

  • DT Swiss XRC 1700 Spline S12
  • Axle dimension: 12x148 mm
  • Rotor mount: Center Lock
  • Weight: 888 g

Tyre

  • Schwalbe Racing Ralph SG TLE EVO 2.35"
  • Width: 2.35"

Tyre

  • Schwalbe Wicked Will SR TLE EVO 2.4"
  • Width: 2.4"

Thru Axle

  • Canyon Quixle Trough Axle QR 174x12
  • Axle dimension: 12x148 mm

COCKPIT

Stem

  • Race Face Ride
  • Fork steer tube diameter: 1 1/8"
  • Clamping diameter: 35,0 mm

Handlebar

  • Race Face Ride Riserbar
  • Clamping diameter: 35,0 mm
  • Width: 760 mm
  • Rise: 10 mm

Grips

  • Ergon GXR

SEAT

Saddle

  • Ergon SM10 Sport
  • Gender: Male
  • Weight: 305 g

Seatpost

  • FOX Transfer SL Performance Elite
  • Clamp diameter: 31,6 mm
  • Material: Aluminium (AL)
  • Weight: 437 g

Seat Clamp

  • Canyon G5

GEOMETRY & DIMENSIONS
