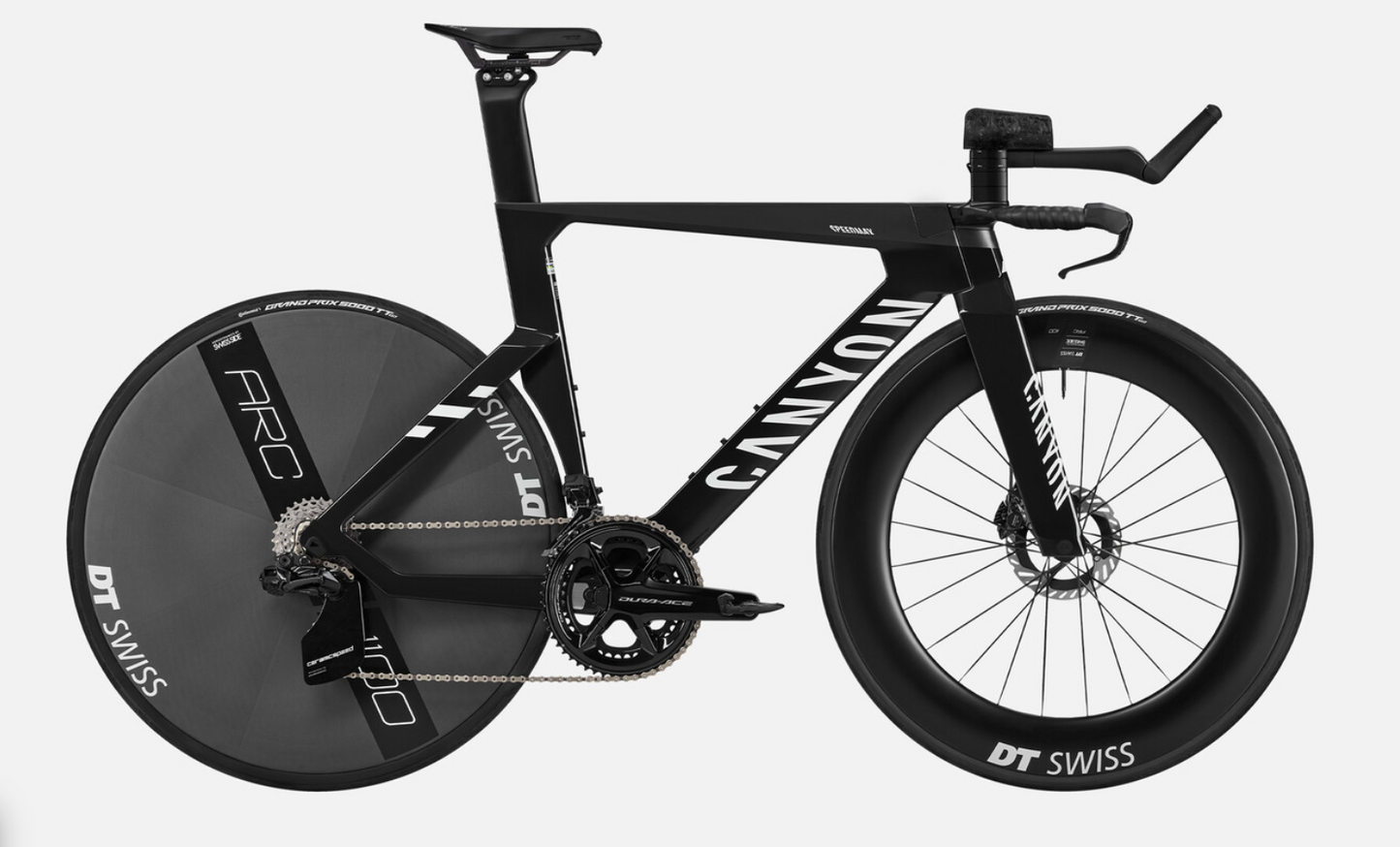

SPEEDMAX CFR TT
SPEEDMAX CFR TT
Time triallists can also benefit from the Speedmax CFR’s World Championship-winning speed. 100% UCI compliant and fully adapted for time trialling – when seconds count, nothing comes close.
- Material: Carbon (CFR)
- Weight: 8.70 kg

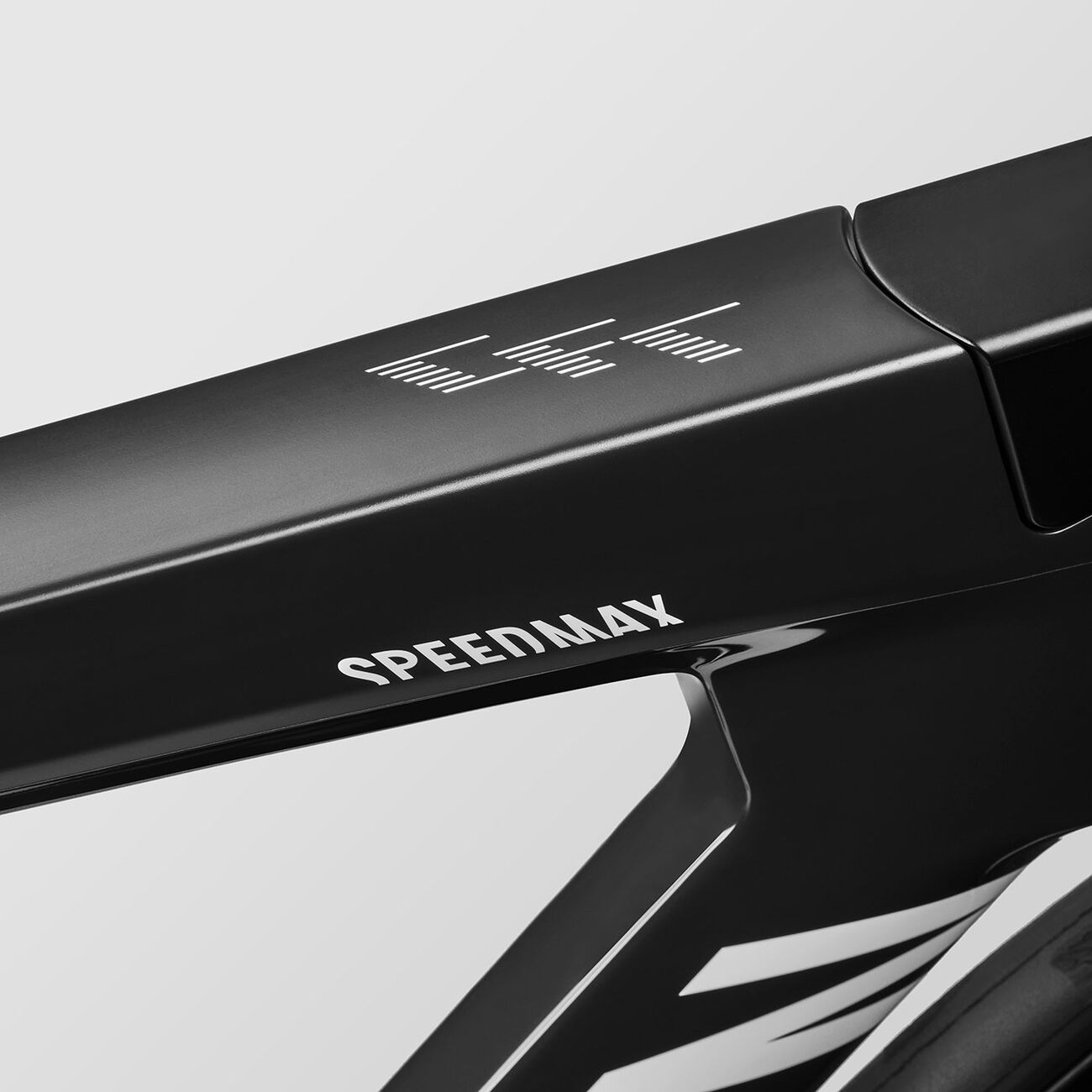

Premium CFR finish
CFR stands for the best of the best – both in terms of performance and optics. With special decals, dynamic CFR branding, and a premium finish only found on CFR models, this bike is unmatched by anything else out there on the course.

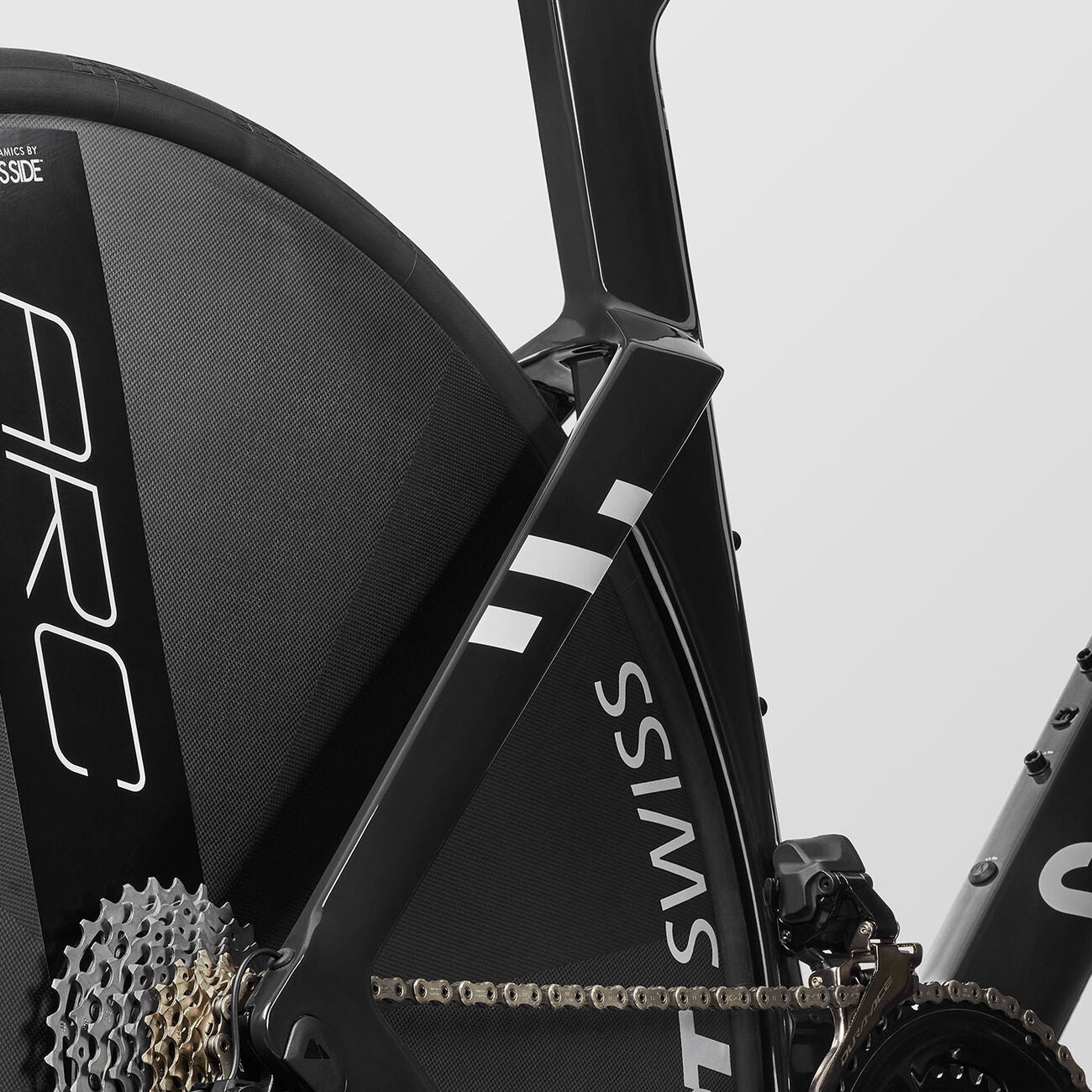

Aerodynamic seatstays
With their wing-like profile, the seatstays of the Speedmax don’t just look the part, they are also super aero thanks to their CFD-optimised design. And with their premium CFR branding, there’s no mistaking that this frame is the very best that Canyon have to offer.

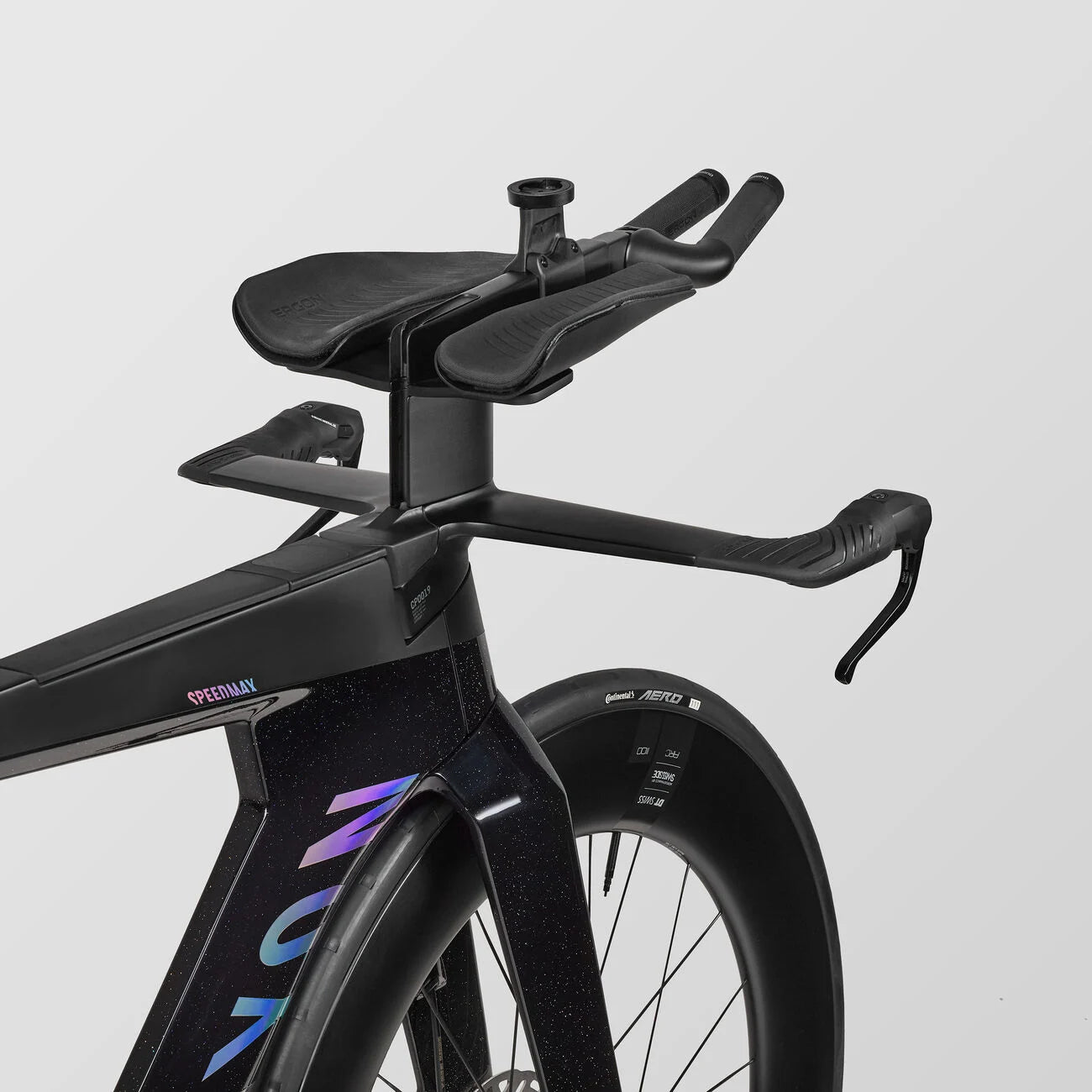

Adjustable cockpit
This highly adjustable, high-end cockpit comes supplied with a fitting kit, so you can adjust your fit to perfection. The premium grips deliver performance, comfort, and aesthetics in equal measure, damping vibrations and giving you plenty hand grip in wet and dry conditions alike.

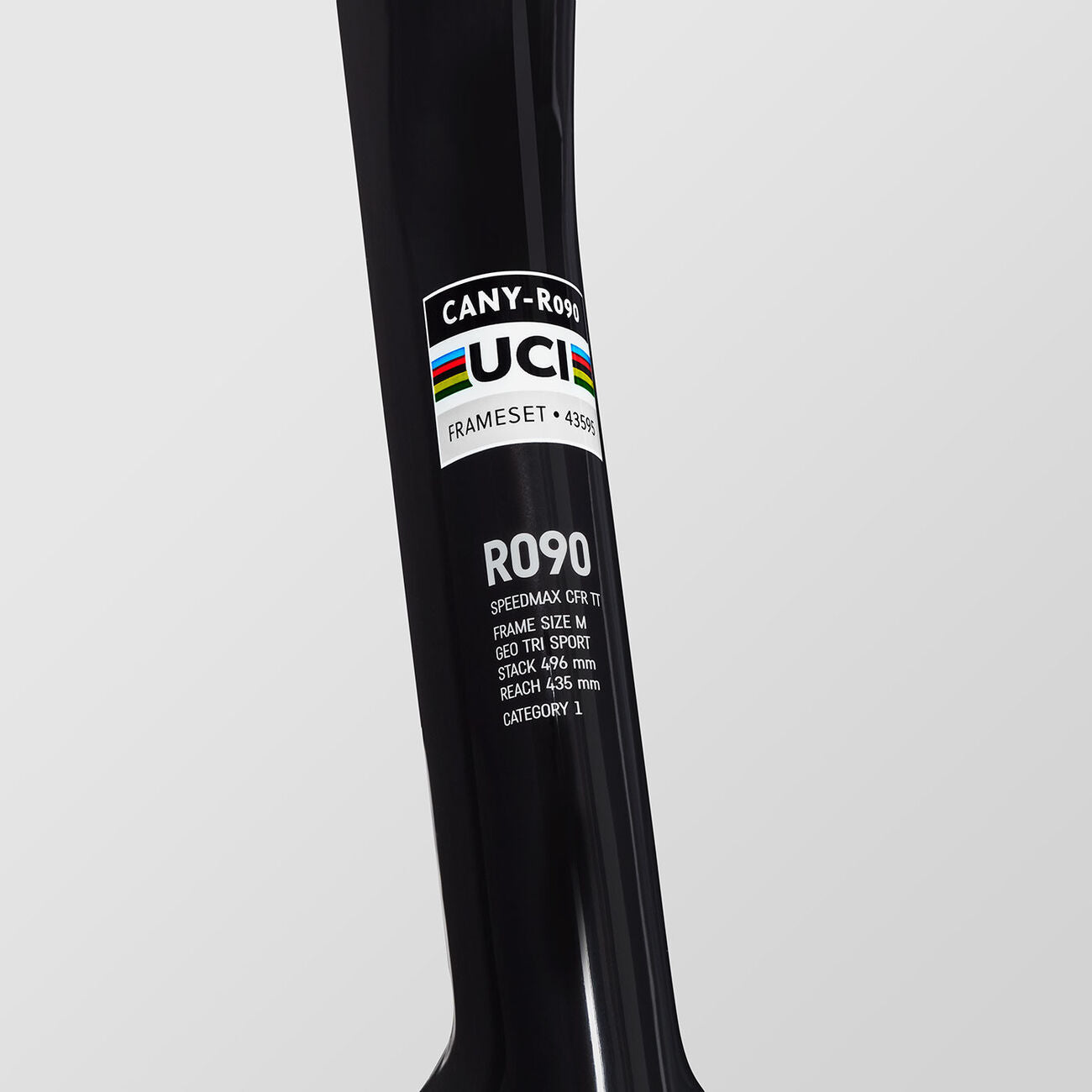

Fully UCI approved and WorldTour proven
Geometry, tube dimensions, length-to-width ratio: this bike pushes the limits of aero design all while remaining fully within the UCI regulations. World Tour-proven, this is the bike our pros choose when it’s time to fight the clock.

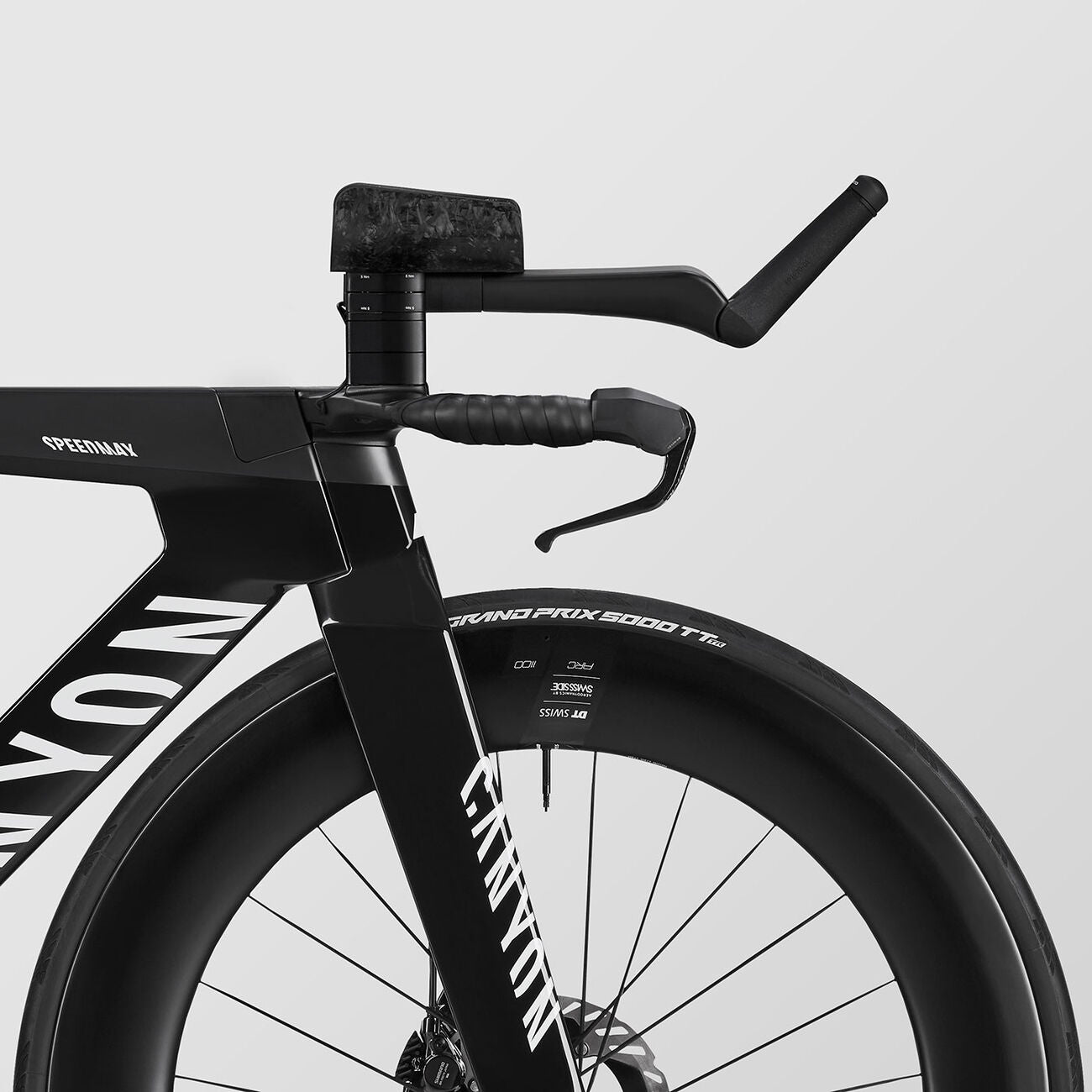

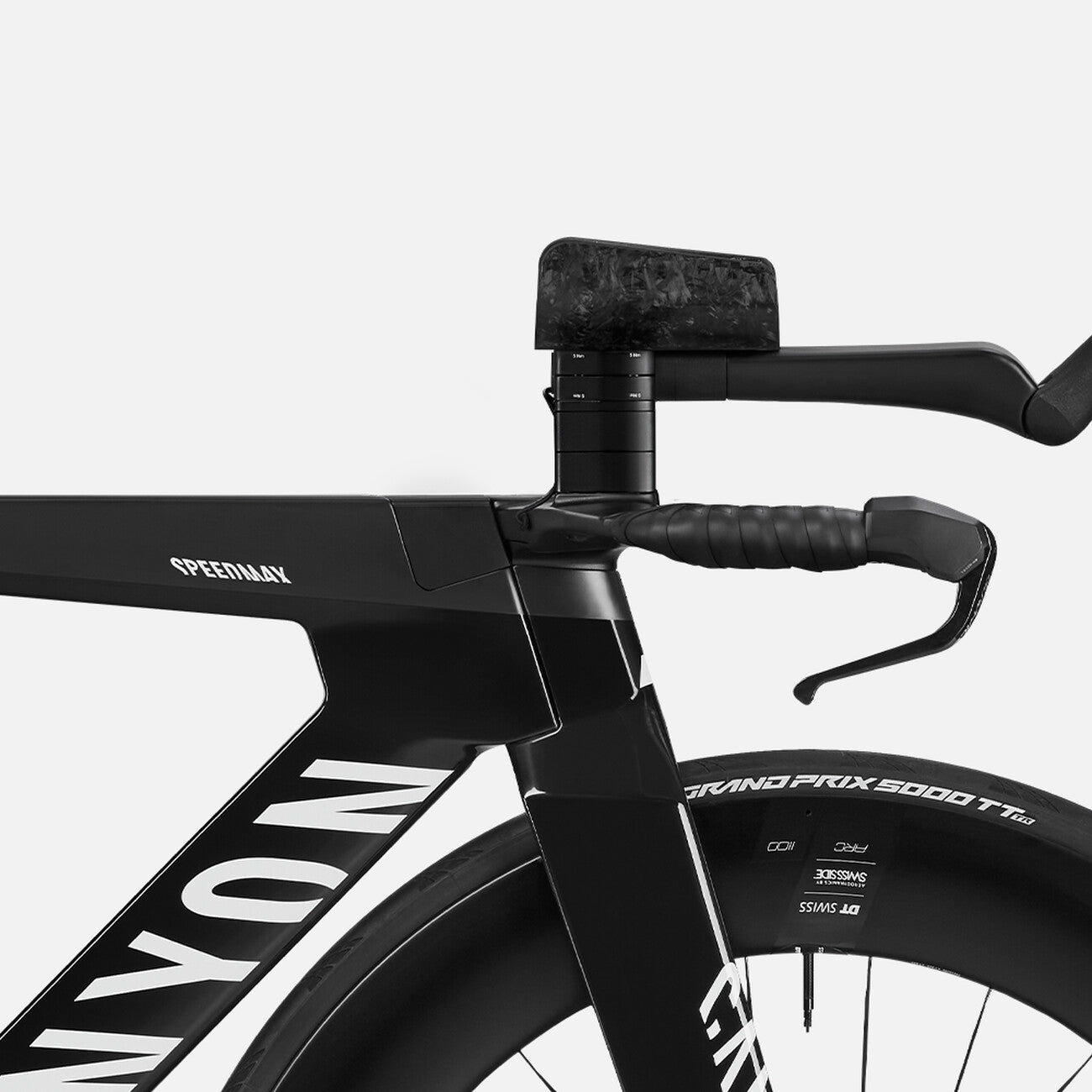

Canyon Pro TT Extension System
We specially optimised this advanced cockpit for Time Trialling – for the ultimate in aerodynamics and comfort, it features ergonomic adjustable extensions and grips. And for maximum stability and optimal control, the carbon armrests have an enlarged contact area too.
World champion winning performance
Ridden to world championship victory by Chloe Dygert, no other bike comes close. 100% UCI compliant, this time trial bike meets the very highest standards of riders who have their sights set on the podium.
Singular focus on speed
When every fraction of a second counts, our pro riders rely on the Speedmax CFR TT. With its advanced aerodynamics and supreme performance, this bike is world-class fast.
Components
FRAME
Frame
- Canyon Speedmax CFR TT Disc
- Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. UCI-legal design.
- Weight: 1030 g (size M)
Fork
- Canyon FK0079 CF Disc
- UCI-legal deep-profile fork. Shaped and tested by our partner Swiss Side with use of extensive computational fluid dynamics analysis.
- Fork steer tube diameter: 1 1/4"
- Tyre Clearance: 30 mm
- Material: Carbon (CF)
- Weight: 370 g
Seat Clamp
- Canyon GP0209-01 Seatclamp
DRIVETRAIN
Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano Dura-Ace Di2 R9250, 12-speed
- Cage length: long
- Weight: 215 g
Front Derailleur
- Shimano Dura-Ace Di2 R9250
- Weight: 96 g
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 40 g
Cassette
- Shimano Dura-Ace R9200, 12-speed, 11-30
- Number of sprockets: 12
- Range: 11-30
Crank
- Shimano Dura-Ace Di2 R9200 Powermeter
- Number of chainrings: 2
Bottom bracket
- Ceramicspeed BB86 Coated
- Weight: 77 g
Chain
- Shimano CN-M9100 12s
BRAKES
Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180
- Weight: 263 g
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180
- Weight: 264 g
Brake Rotor
- Shimano RT-CL900
- Size: 160 mm
WHEELS
Wheel
- DT Swiss ARC 1100 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 80 mm
- Rim material: Carbon
- Weight: 820 g
Wheel
- DT Swiss ARC 1100 Disc, SH11
- Rotor mount: Center Lock
- Rim material: Carbon
- Weight: 1.07 kg
Tyre
- Continental GP5000 TT TR
- Width: 25mm
- Weight: 220 g
Tyre
- Continental GP5000 TT TR
- Width: 28mm
- Weight: 245 g
Thru Axle
- DT Swiss through axle with Lever
- Axle dimension: 12x100 mm
Thru Axle
- DT Swiss through axle w/o Lever
- Axle dimension: 12x142 mm
COCKPIT
Stem
- Canyon V19 Short
- Aluminium stem specially designed for use Canyon Speedmax bikes.
- Length: 65 mm
- Weight: 204 g
Handlebar
- Canyon HB0054 Basebar flat
- Time trial-specific handlebar with optimum aerodynamics, comfort, and adjustability. The narrow 390 mm basebar reduces the bike’s frontal area and is designed using CFD analysis to work together optimally with the frameset.
- Weight: 275 g.
Aero Bar
- Canyon Pro Armpad Set
Aero Bar
- Canyon Pro Armpad Hook Set
Aero Bar
- Canyon PRO Armrest Set
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: Black
Grips
- Canyon Grip V01 Right Round
Grips
- Canyon Grip V01 Left Round
SEAT
Saddle
- Fizik Transiro R1
- Weight: 240 g
Seatpost
- Canyon SP0048 Aero Seatpost
- Speedmax time trial seatpost, deep profile, large adjustment range, UCI compliant.
- Weight: 300 g
GEOMETRY & DIMENSIONS
