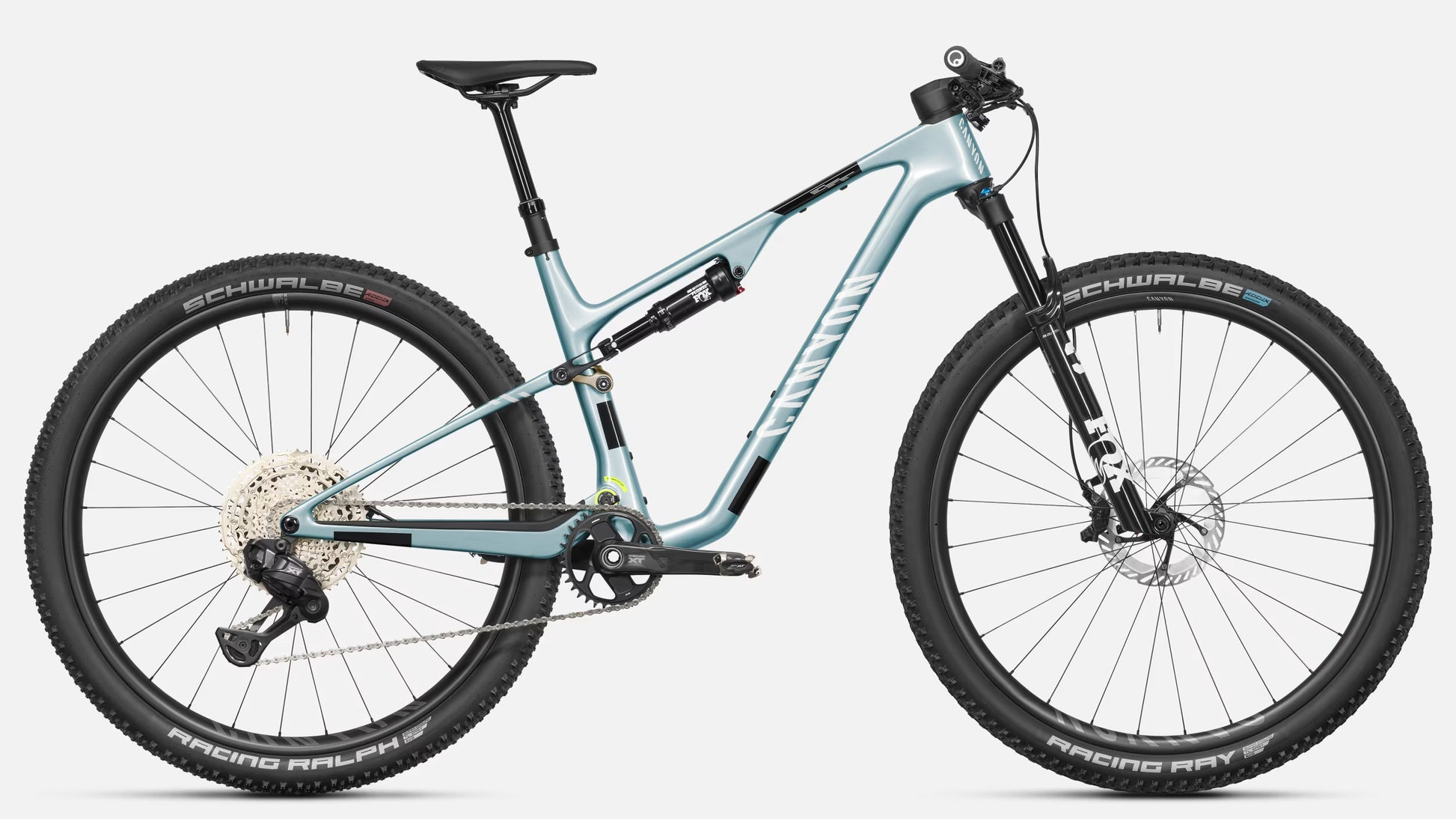

LUX WORLD CUP CFR XT Di2 - Medium - CFR Mint - NEW
LUX WORLD CUP CFR XT Di2 - Medium - CFR Mint - NEW
Located at Canyoncafē Pretoria.
- Ultralight yet capable, CFR-grade carbon frame
- Designed in collaboration with top pros
- Modern geometry increases speed and control
- Adjustable anti-squat flip chip
- Shimano XT wireless drivetrain
-
- Front Fork Travel: 120 mm
- Weight: 11.06 kg
Condition: This bike is brand new.
Financing
Financing
Canyon Bicycles South Africa has partnered with Yonda Bike Finance to offer you the best bicycle finance options in the country. With the backing of major South African banks, we provide competitive interest rates and affordable repayments.
Our quick pre-approval process takes just 30 seconds, delivering instant results. Alternatively, you can proceed directly to the full finance application.
Contact us to buy this bike
Contact us to buy this bike
- Use our chat function
- Or email: pretoria(at)canyoncafe.co.za
- Or call Canyoncafē Pretoria

Remarkably light. Insanely fast.
At 1,480 grams, the Lux World Cup CFR boasts one of the lightest full-suspension frame to date—with no compromise in stiffness, durability, or control. Less mass plus more control equals more speed.

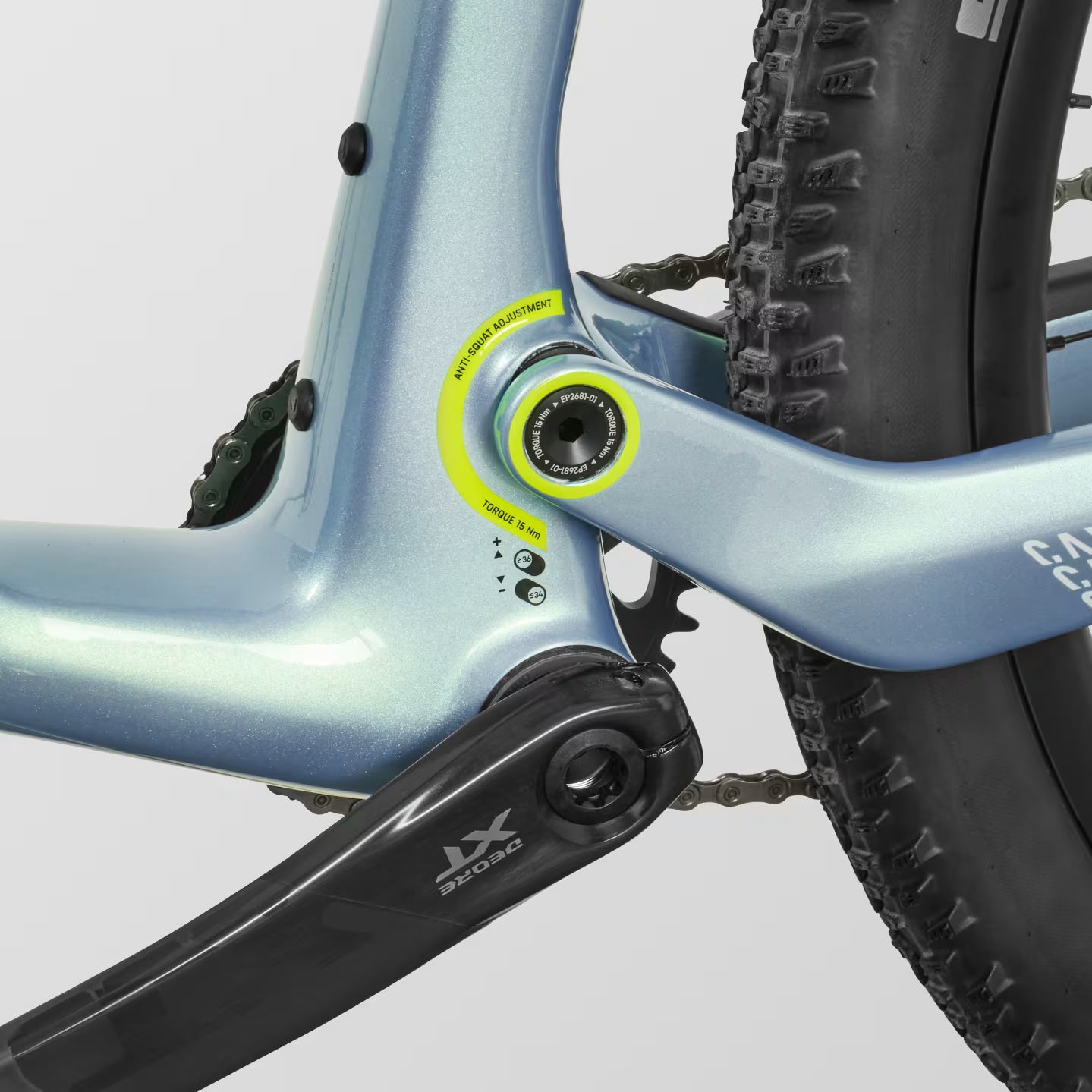

The Quick Chip makes you faster
Our innovative, adjustable anti-squat flip chip (or “Quick Chip”) lets you fine tune the Lux World Cup CFR’s pedalling efficiency to match your terrain, ride style, or race strategy.
More capable. Faster than ever.
With more suspension travel, more progressive kinematics, and a modern, race-focused geometry, Lux World Cup CFR dominates the most technical World Cup courses.
Race-winning details

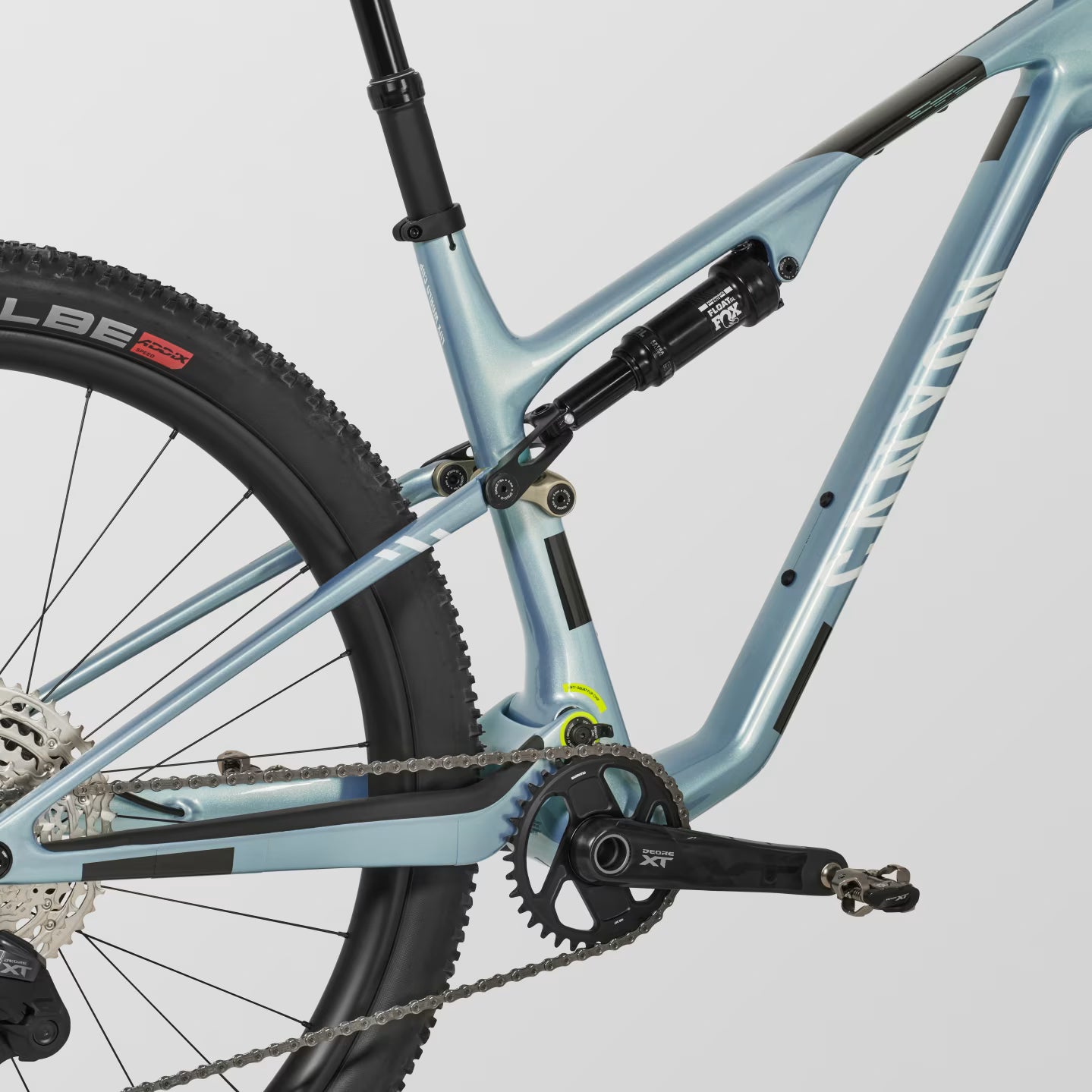

It’s the little details that turn a fast bike into a winning one. The optimized rocker kinematics and ultra-light flex stays deliver the perfect balance of efficiency and traction, especially during technical climbs where races are often won or lost.
Built to last
Durable, reliable, and hassle free. We partnered with the world’s best World Cup mechanics to ensure that every interface and feature on this bike is durable and easy to maintain. It’s as flawless in the workshop as it is on the racecourse.

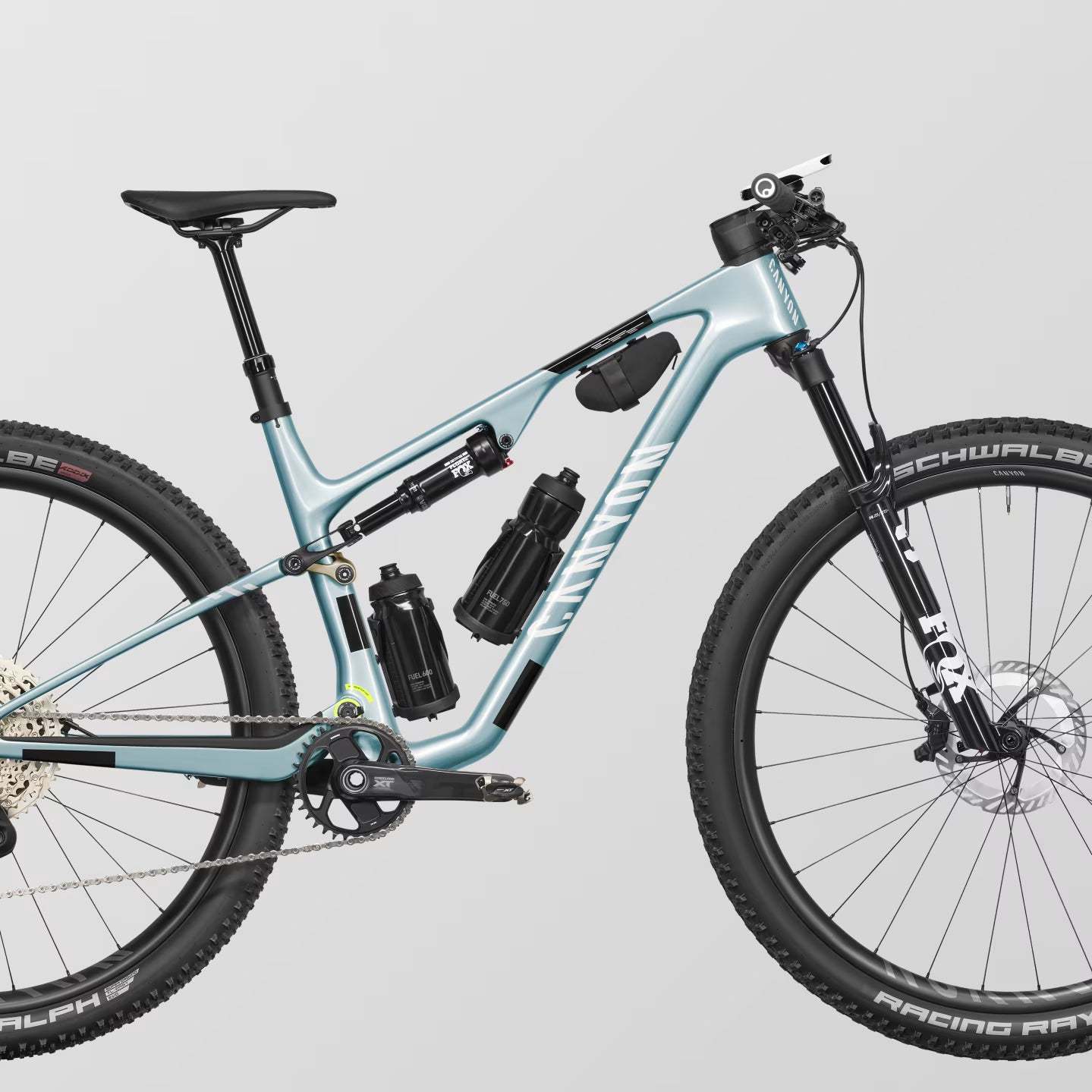

Everything you need. Always in reach
The Lux World Cup CFR sports top-tube rivets for a frame-mounted tool bag and space for two large water bottles. It’s smart, race-focused hydration and storage. Always accessible. Always secure.
Accessories shown here are sold separately.
Components
FRAME

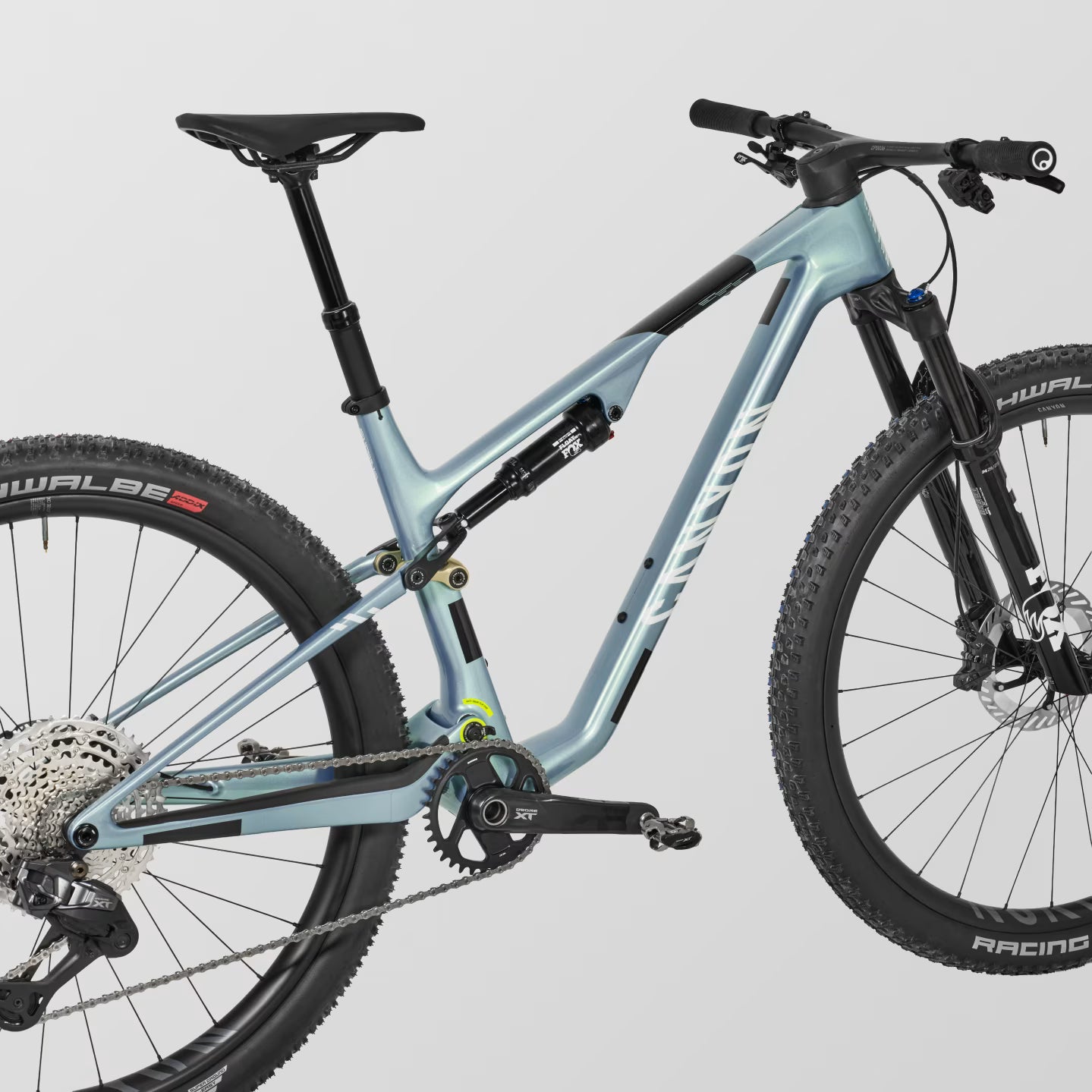

Frame
- Canyon Lux WC CFR
- Axle dimension 12x148 mm
- Material Carbon (CFR)
- Weight 1,480 g
Rear Shock
- FOX Float SL Performance Elite
- Weight 295 g

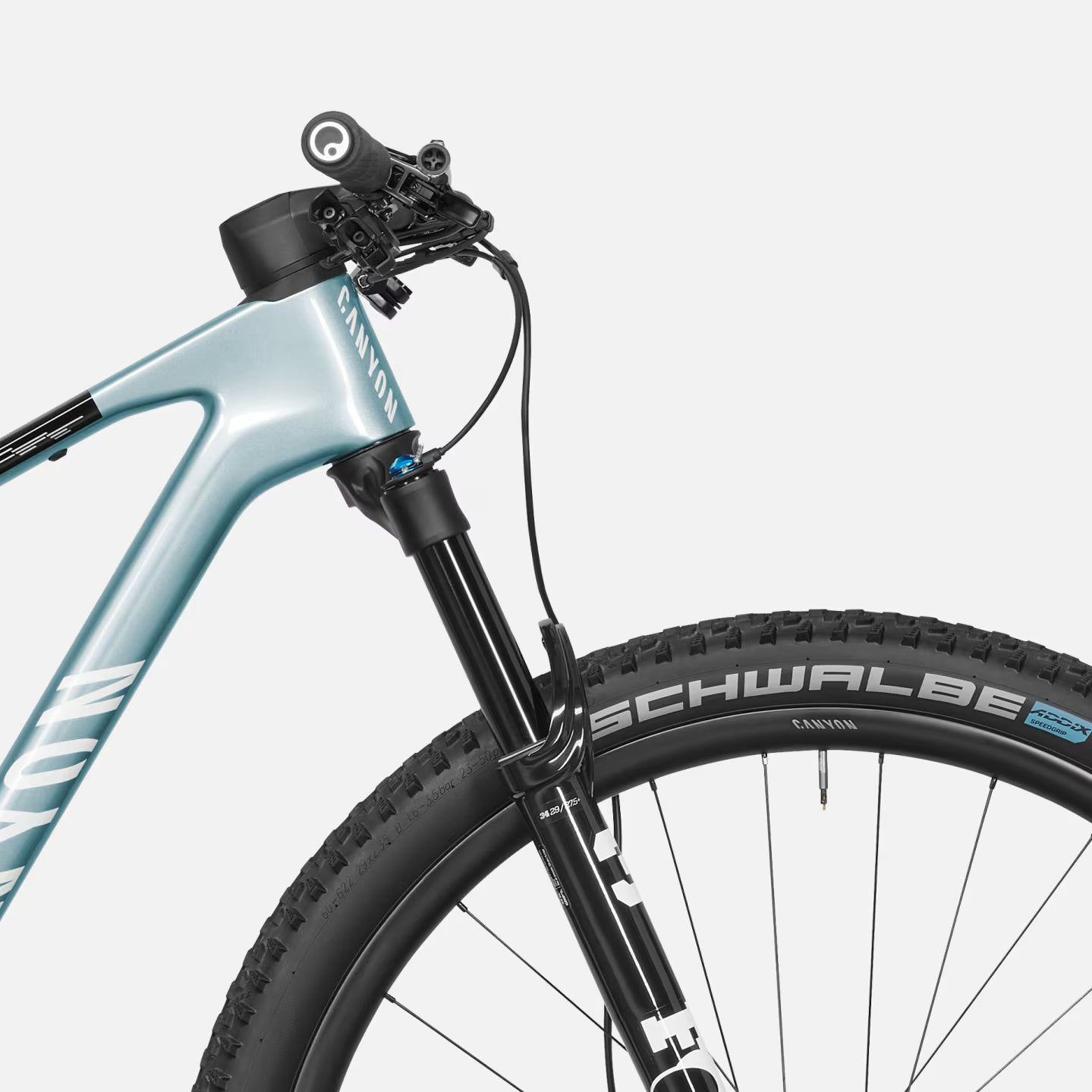

Suspension Fork
- FOX 34 SL Performance Elite
- Axle dimension 15x110 mm
- Stanchion Diameter 34 mm
- Travel 120 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Weight 1,520 g
DRIVETRAIN
Battery
- Shimano BT-DN320
Rear Derailleur
- Shimano XT Di2
- Cage length long
- Weight 450 g
Shift Lever
- Shimano XT Di2
Cassette
- Shimano M6200
- Number of sprockets 12
- Range 10-51
Crank
- Shimano FC-M8200
- Number of chainrings 1
Bottom bracket
- Shimano Pressfit BB71
- Bottom bracket standard PF 89,5/92
- Weight 71 g
Chain
- Shimano Deore M6100
BRAKES
Disc Brake
- Shimano Deore XT M8220
- Number of pistons 4
Disc Brake
- Shimano BR-M8200
- Number of pistons 2
Brake Rotor
- Shimano Ultegra RT-CL800
- Size 160 mm
- Weigh t122 g
Brake Rotor
- SRAM Centerline Rounded
- Size 180 mm
- Weight 145 g
WHEELS
Wheel
- Canyon XC 30 CF
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Carbon
- Weight 730 g
Wheel
- Canyon XC 30 CF
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Carbon
- Weight 730 g
Tyre
- Schwalbe Racing Ray SR TLE
- Width 2.25"
- Weight 755 g
Tyre
- Schwalbe Racing Ralph SR TLE EVO 2.35"
- Width 2.35"
- Weight 732 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
COCKPIT

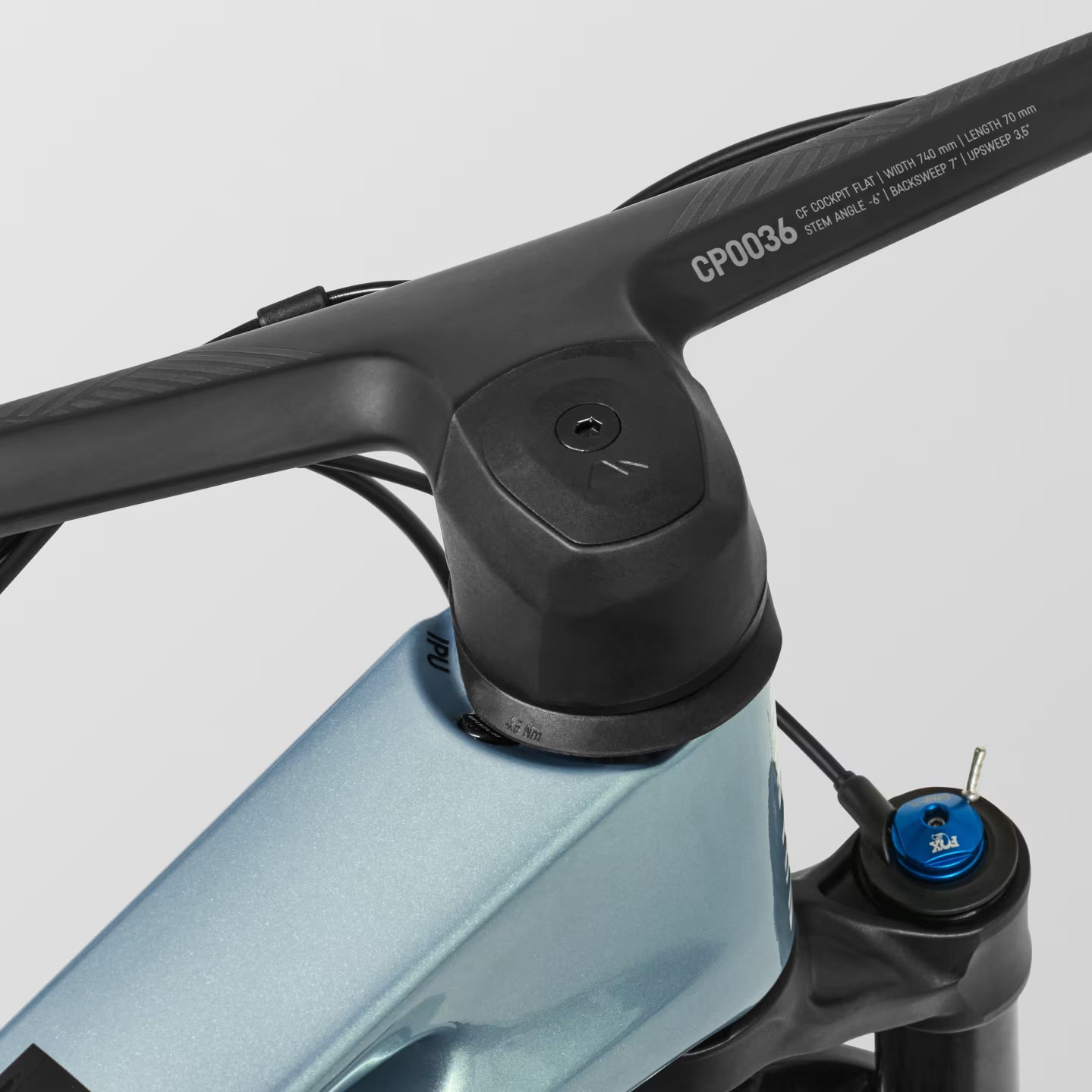

Cockpit
- Canyon CP0036
- Superlight carbon cockpit. With semi-integrated cable routing and high-grip surface in the bar centre.
- Material Carbon (CF)
- Weight 272 g
Grips
- Ergon GXR
SEAT
Saddle
- Ergon SPR20 NEO TiNox
- Gender Unisex
Seatpost
- Canyon SP0081
- Seatpost diameter 31,6 mm
- Material Aluminium (AL)
- Weight 542 g
