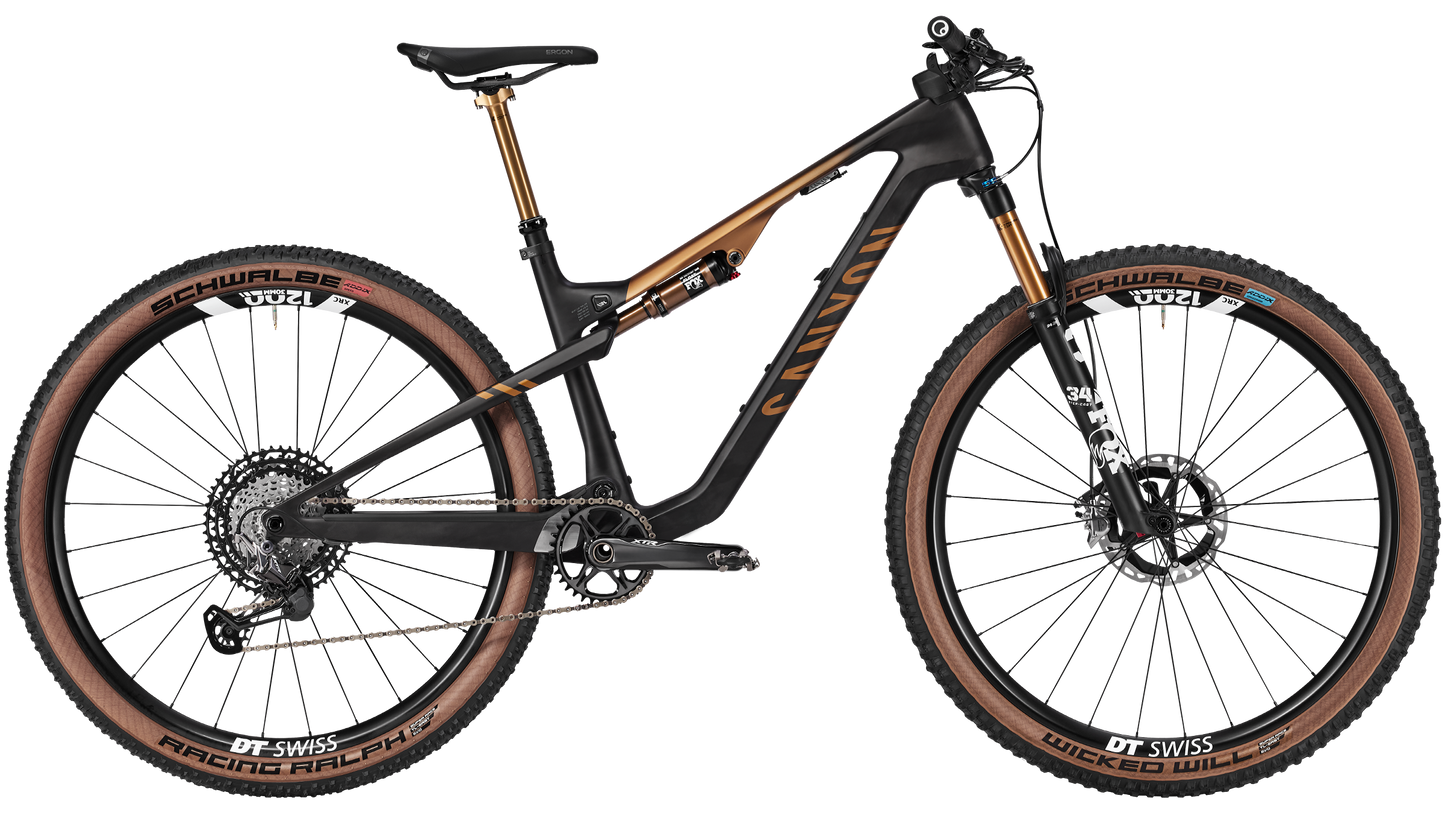

LUX TRAIL CFR
LUX TRAIL CFR
From shredding to racing, the Lux Trail CFR does it all at the very highest level, with its advanced CFR frame, legendary Shimano XTR shifting, and premium FOX Factory suspension.
Shimano XTR, 12-speed, FOX 34 Stepcast Factory Remote
- Front Fork Travel: 120 mm
- Weight: 11.25 kg

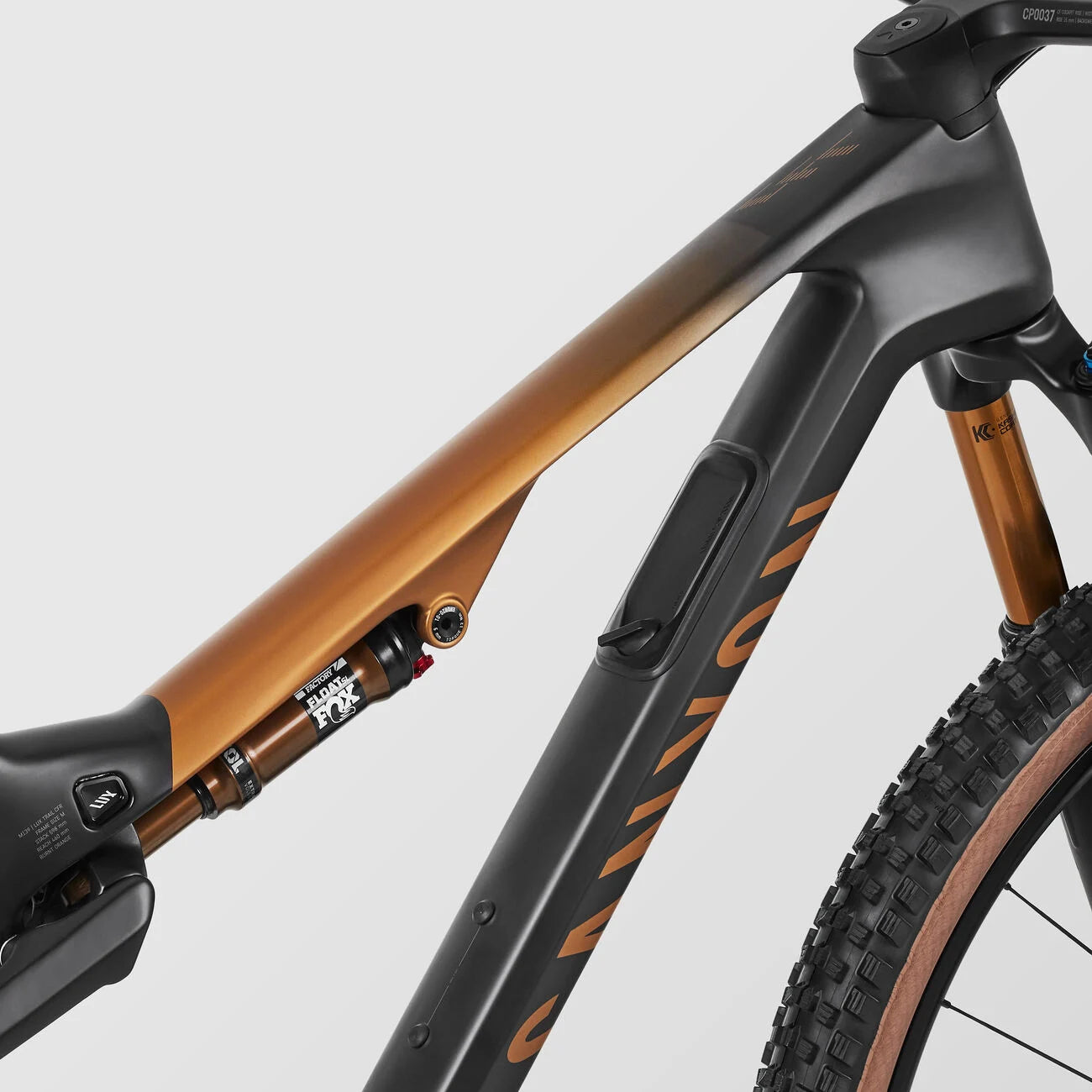

Formidable CFR frame
This is carbon without compromise. The super lightweight and relentlessly tough CFR frame is the epitome of industry-leading carbon engineering. Feature-packed medium frames weigh only 1,999.6 g, making the Lux Trail one of the lightest on the market – it's a work of art.
Total control linkage
Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.

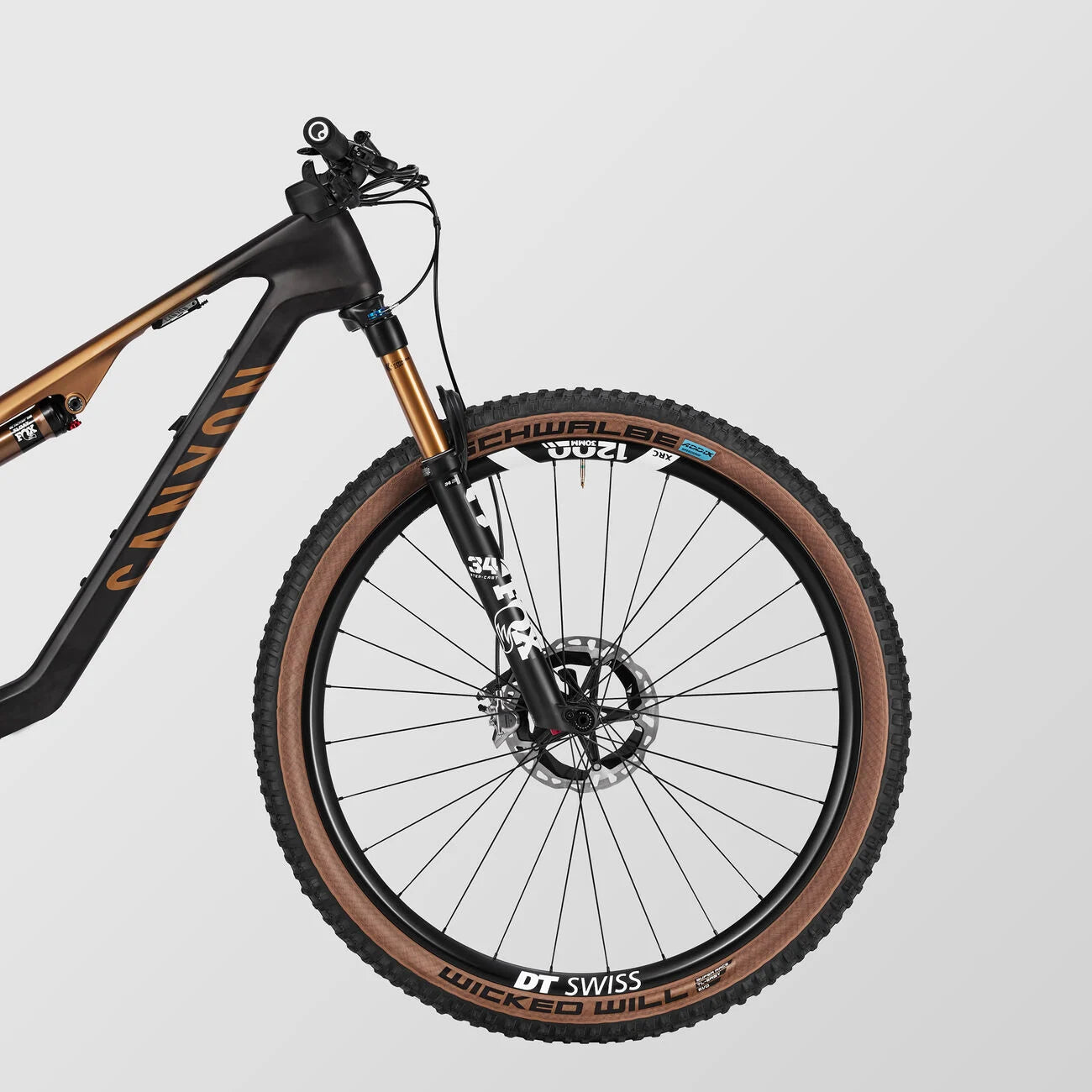

The right angles
We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.
Remote lockout suspension
Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

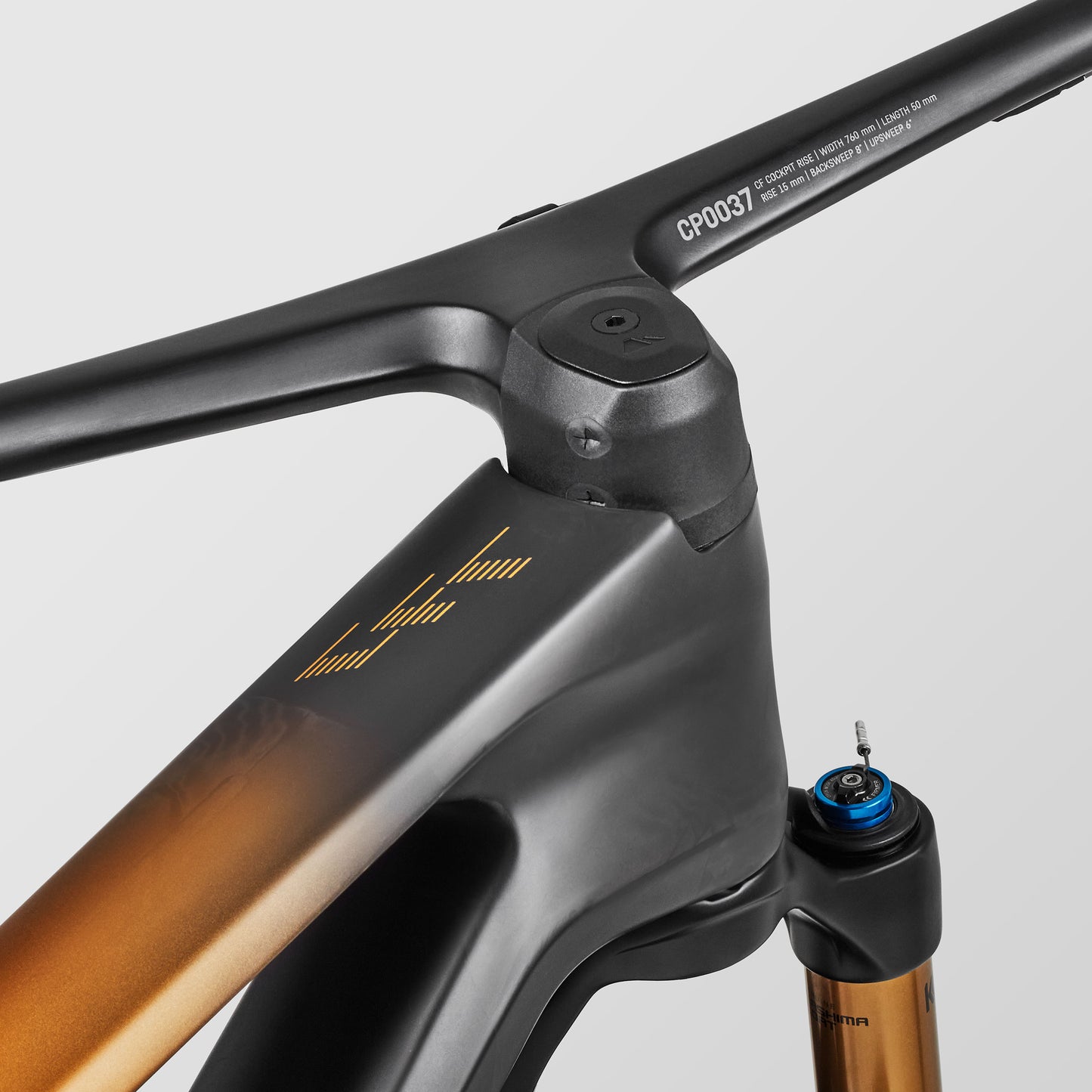

Proper frame protection
Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.
Clever storage
The fix is always within reach on the Lux Trail. Store a mini-tool in the top tube and Canyon Sahmurai Sword Plug Set in the bar ends for fast fixes.

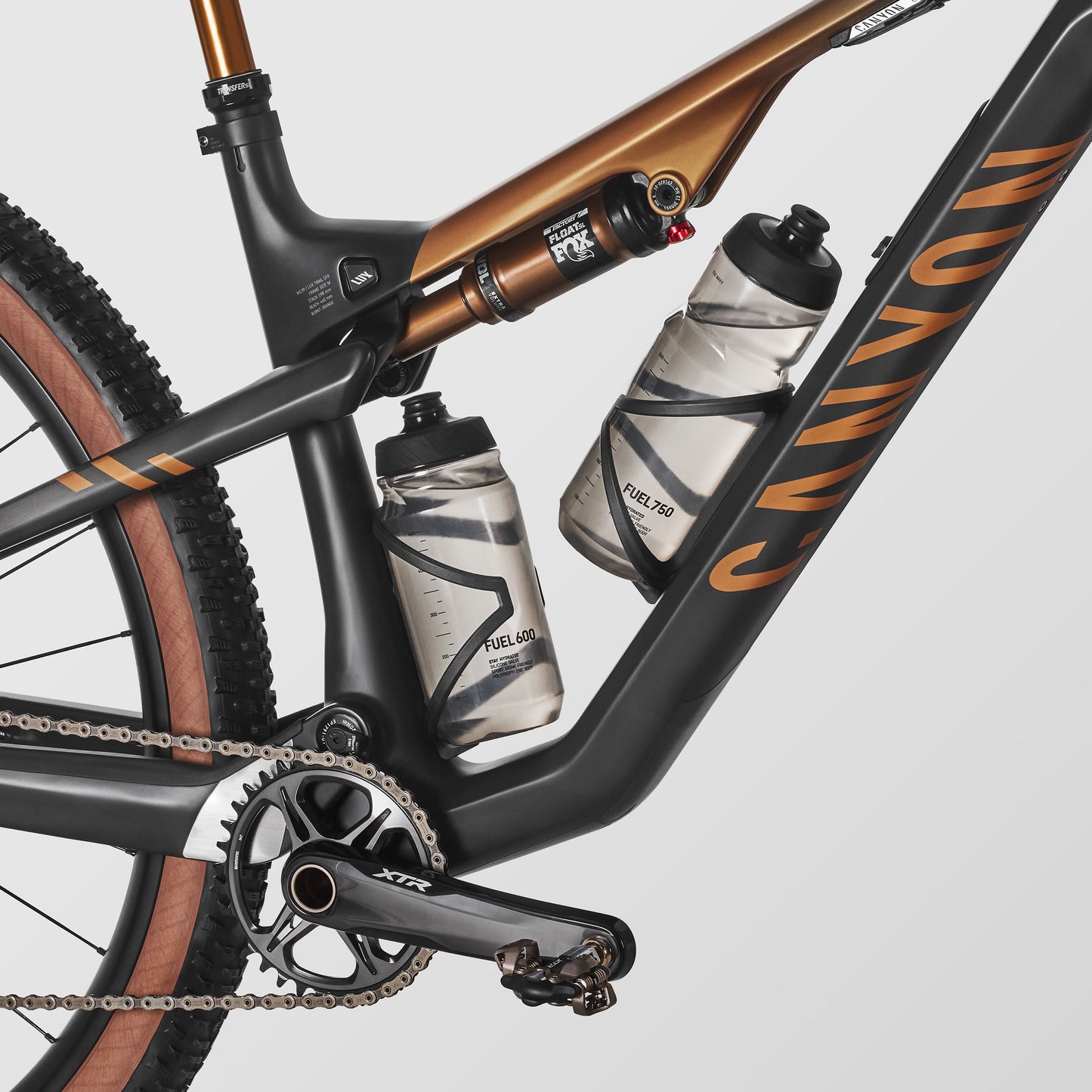

Drink more water
Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.
Components
FRAME
Frame
- Canyon Lux Trail CFR
- Superlight, pro-level CFR build of the ultra-capable Lux Trail down-country bike, delivering the highest levels of climbing efficiency and descending performance.
- Axle dimension: 12x148 mm
- Material: Carbon (CFR)
Rear Shock
- FOX Float SL Factory Remote
Suspension Fork
- FOX 34 Stepcast Factory Remote
- Axle dimension: 15x110 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1.52 kg
Seat Clamp
- Canyon GP0368-01 Seat clamp
DRIVETRAIN
Rear Derailleur
- Shimano XTR, 12-speed
- Cage length: long
- Weight: 230 g
Shift Lever
- Shimano XTR, 12-speed
- Weight: 131 g
Cassette
- Shimano XTR CS-M9101 12s 10-51
- Number of sprockets: 12
- Range: 10-51 12S
Crank
- Shimano XTR M9125 34T
- Number of chainrings: 1
Bottom bracket
- Shimano BSA BB93
- Bottom bracket standard: BSA 68/73
Chain
- Shimano M9100 XTR Chain
- SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
BRAKES
Disc Brake
- Shimano XTR
- Number of pistons: 2
Disc Brake
- Shimano M9110
- Number of pistons: 2
Brake Rotor
- Shimano RT-MT900, 180mm
- Size: 180 mm
- Weight: 146 g
Brake Rotor
- Shimano RT-MT900
- Size: 160 mm
- Weight: 122 g
WHEELS
Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 799 g
Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 679 g
Tyre
- Schwalbe Racing Ralph SR TLE EVO 2.35"
- Width: 2.35"
Tyre
- Schwalbe Wicked Will SR TLE EVO 2.4"
- Width: 2.4"
Thru Axle
- Canyon Quixle Trough Axle QR 174x12
- Axle dimension: 12x148 mm
COCKPIT
Cockpit
- Canyon CP0037
- Material: Carbon (CF)
Grips
- Ergon GXR
SEAT
Saddle
- Ergon SM10 Pro
- Gender: Male
- Weight: 235 g
Seatpost
- FOX Transfer SL Factory
- Clamp diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 421 g
