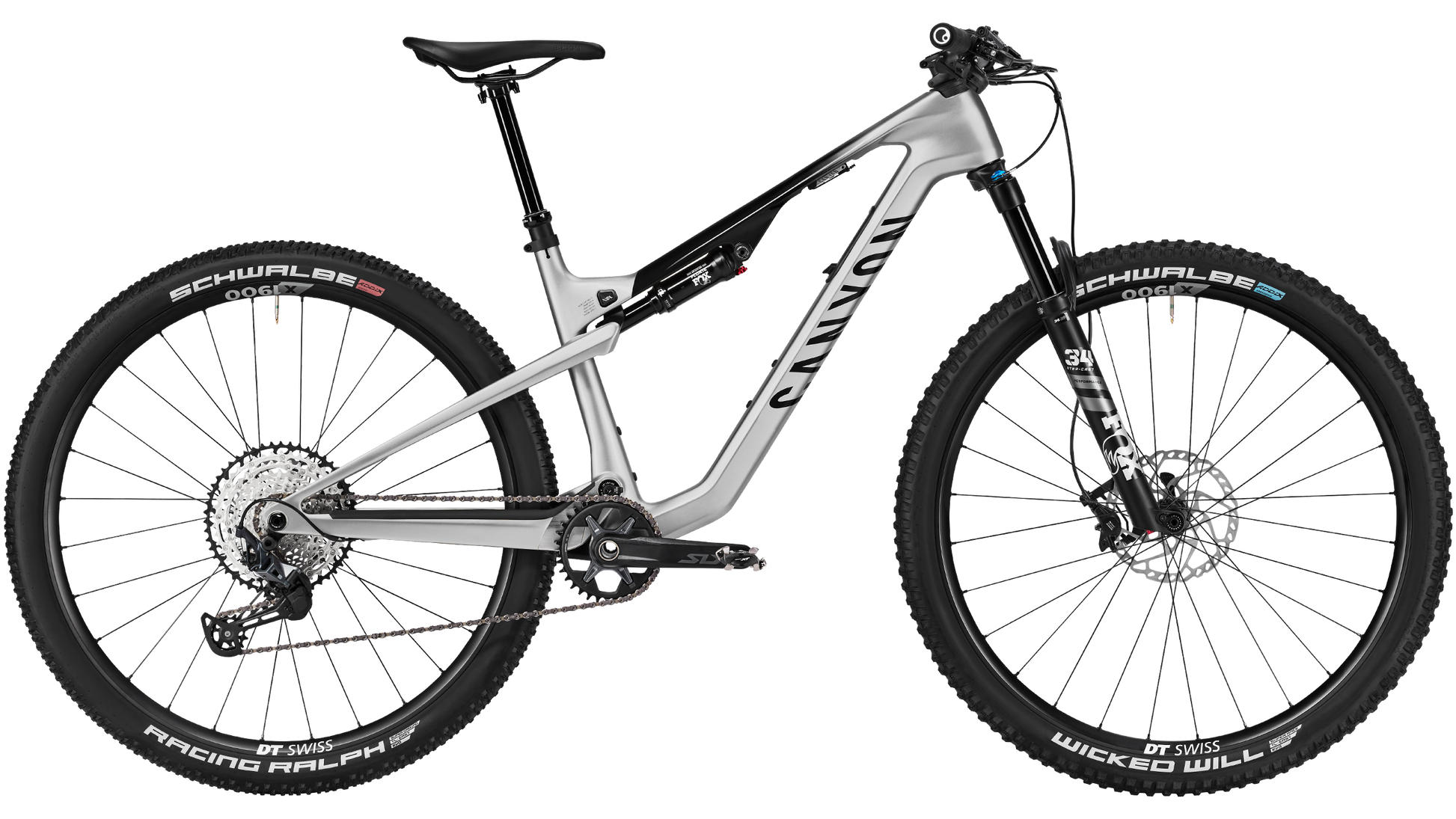

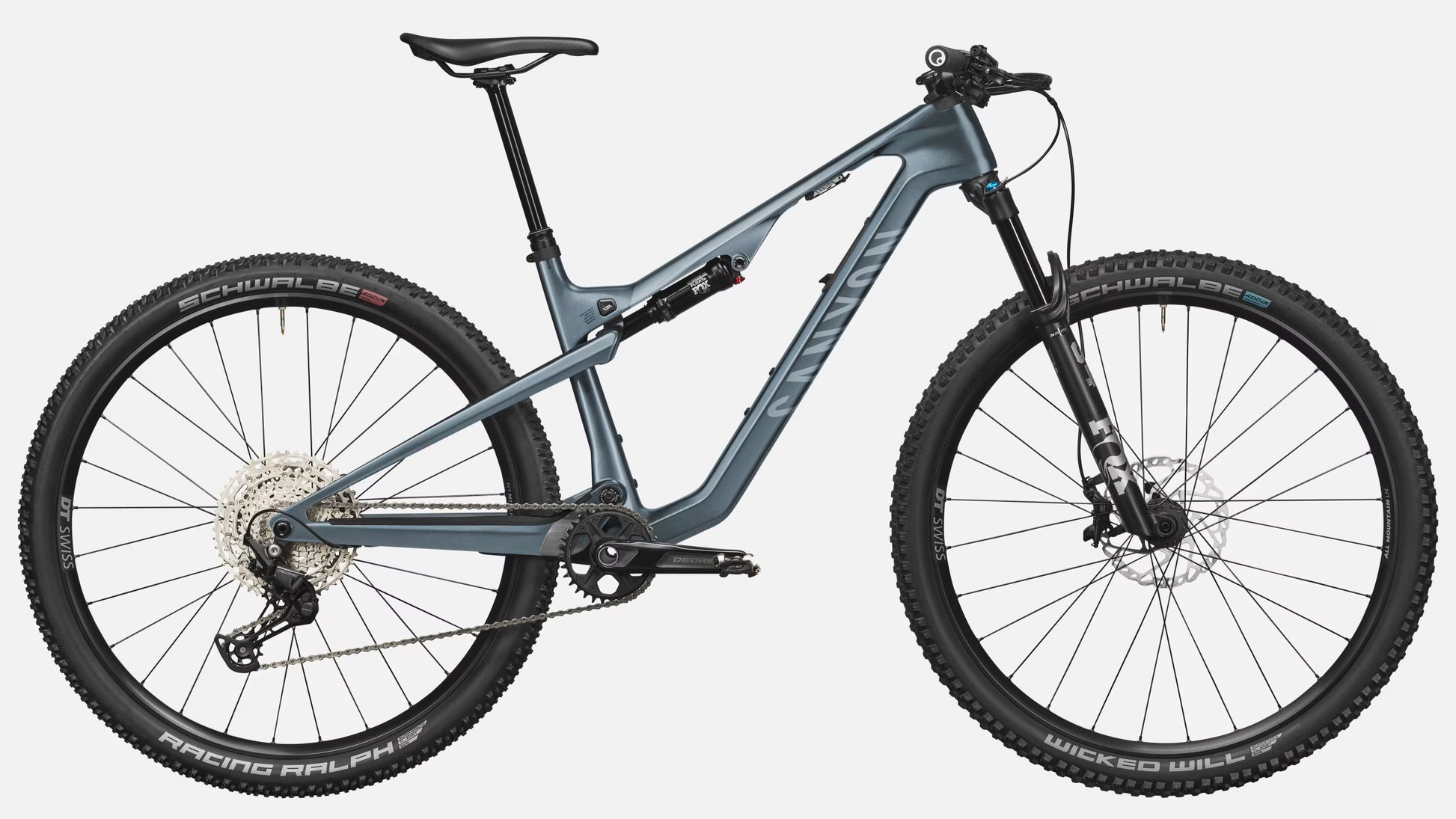

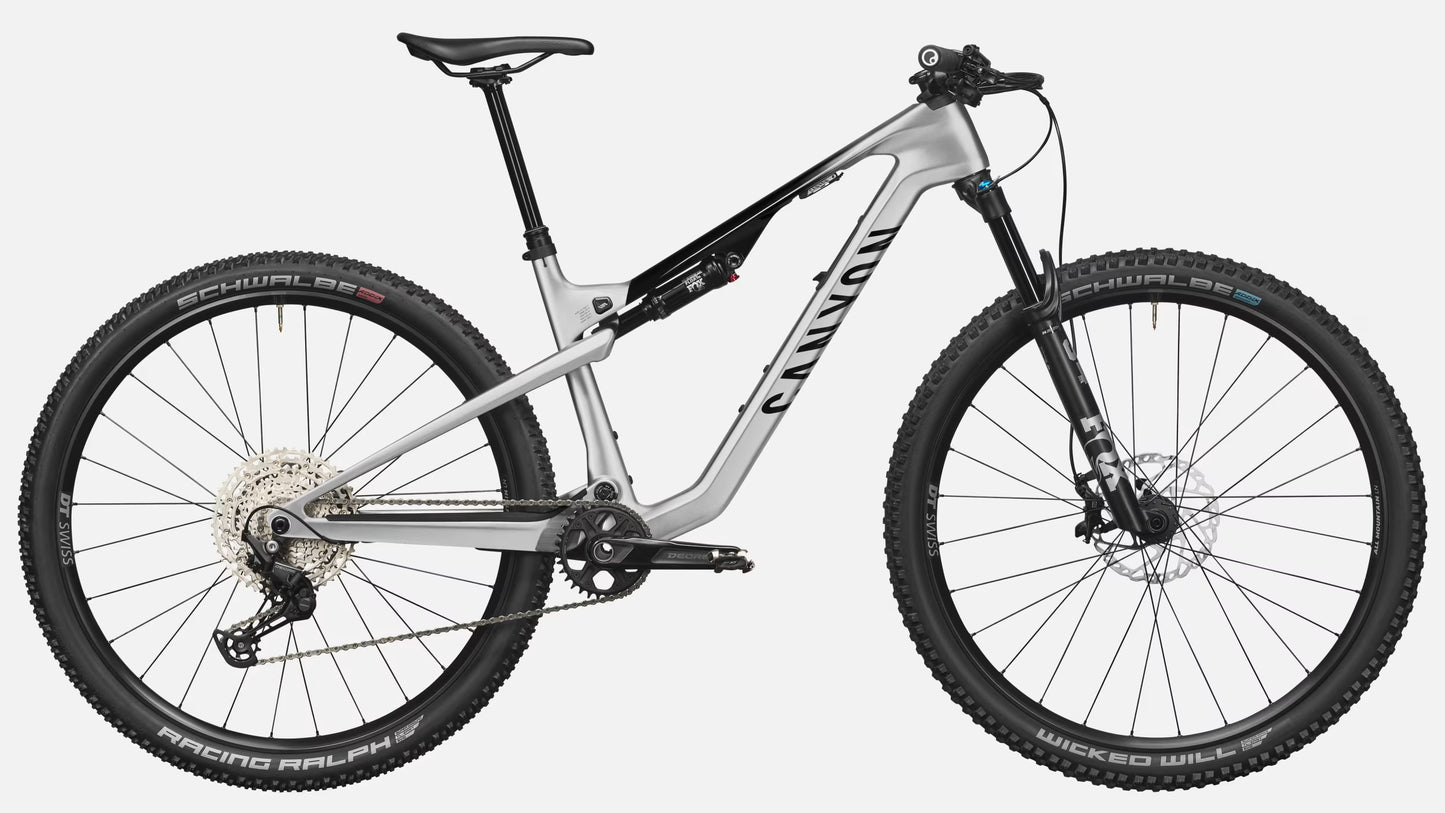

LUX TRAIL CF 7
LUX TRAIL CF 7
Cover big ground fast with this rapid, efficient down-country bike. Featuring high-end FOX suspension and dropper post, fast-rolling DT Swiss wheels, and frame-integrated storage.
Shimano SLX M7100, FOX 34 Stepcast Performance 3-Pos Remote
- Front Fork Travel: 120 mm
- Weight: 12.90 kg

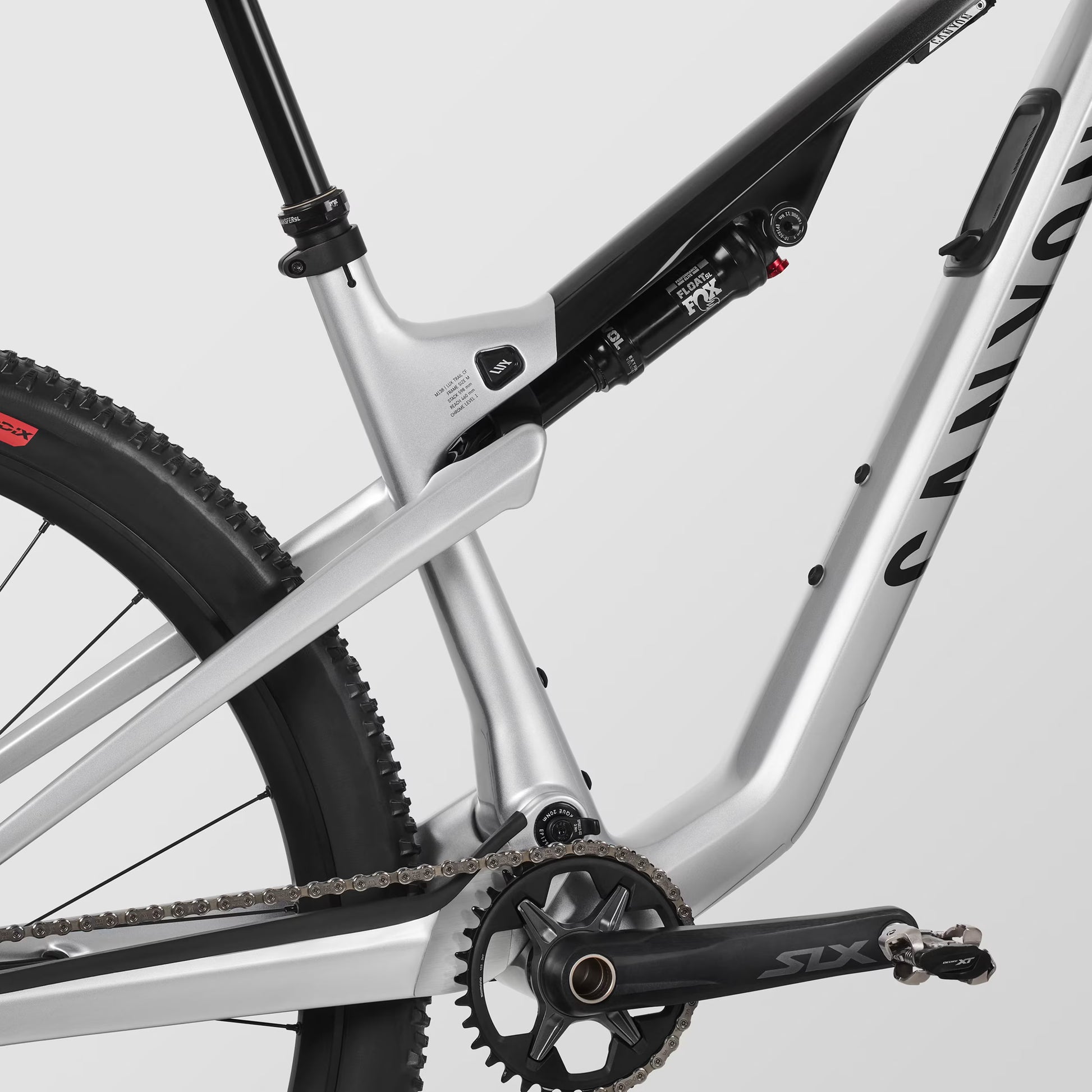

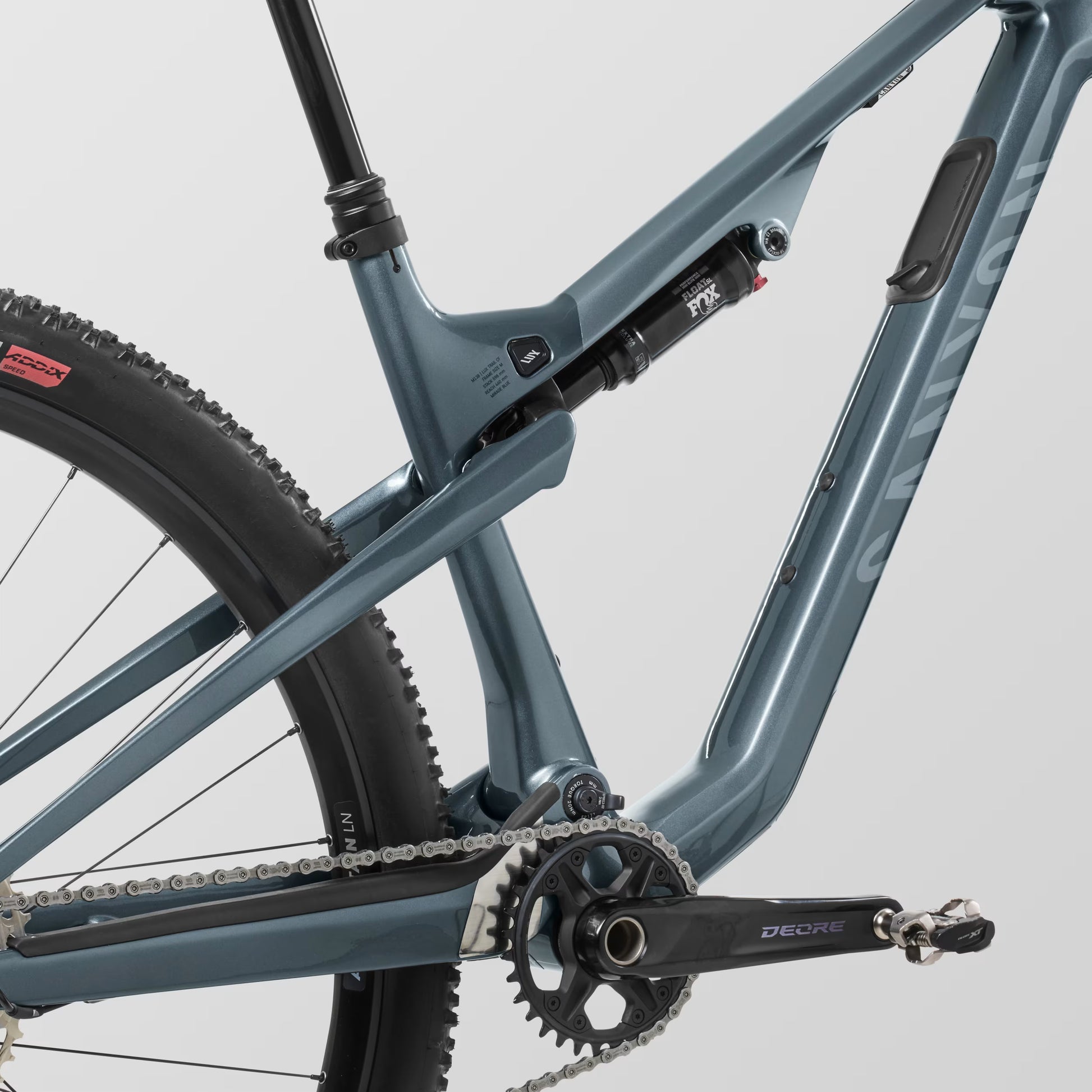

Total control linkage
Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.

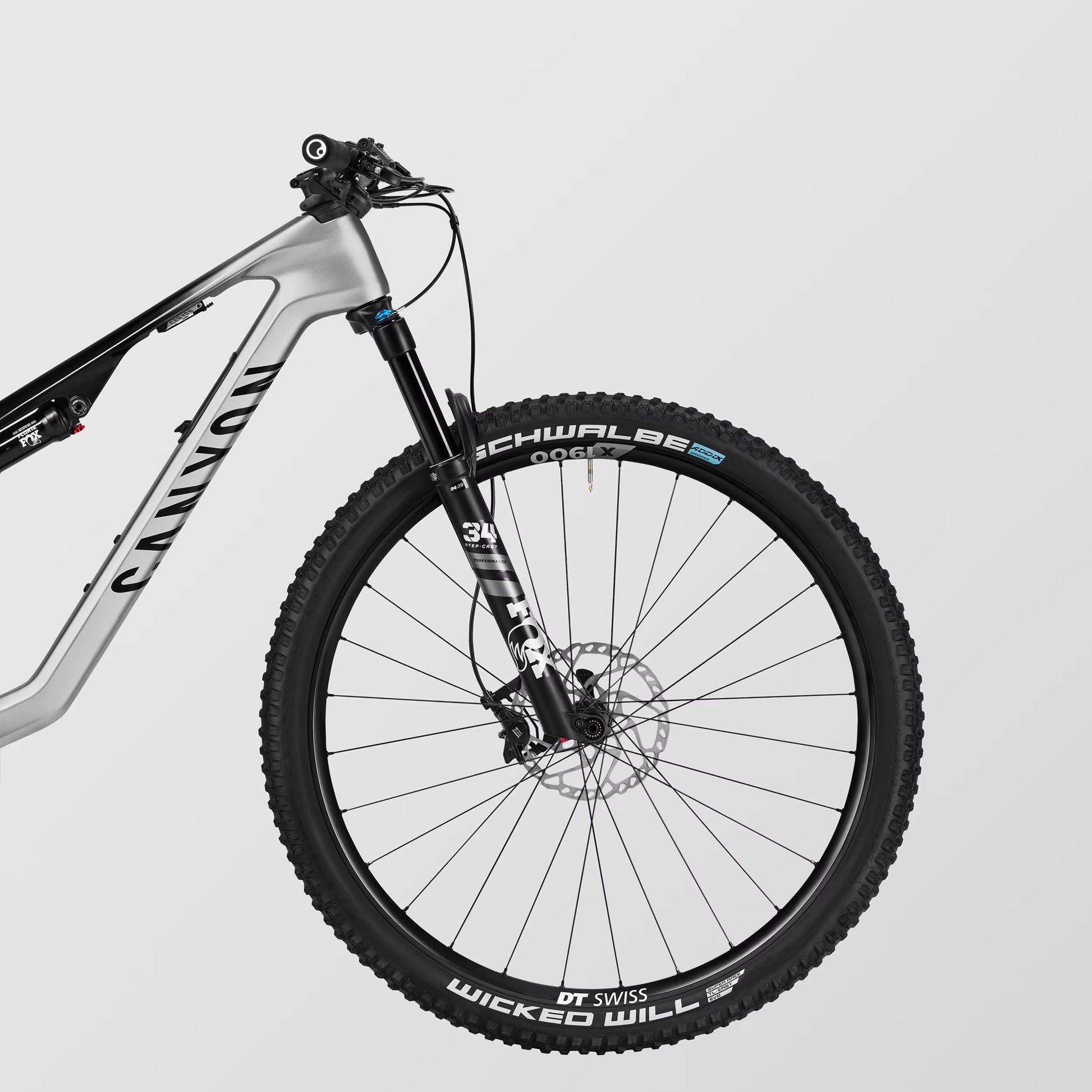

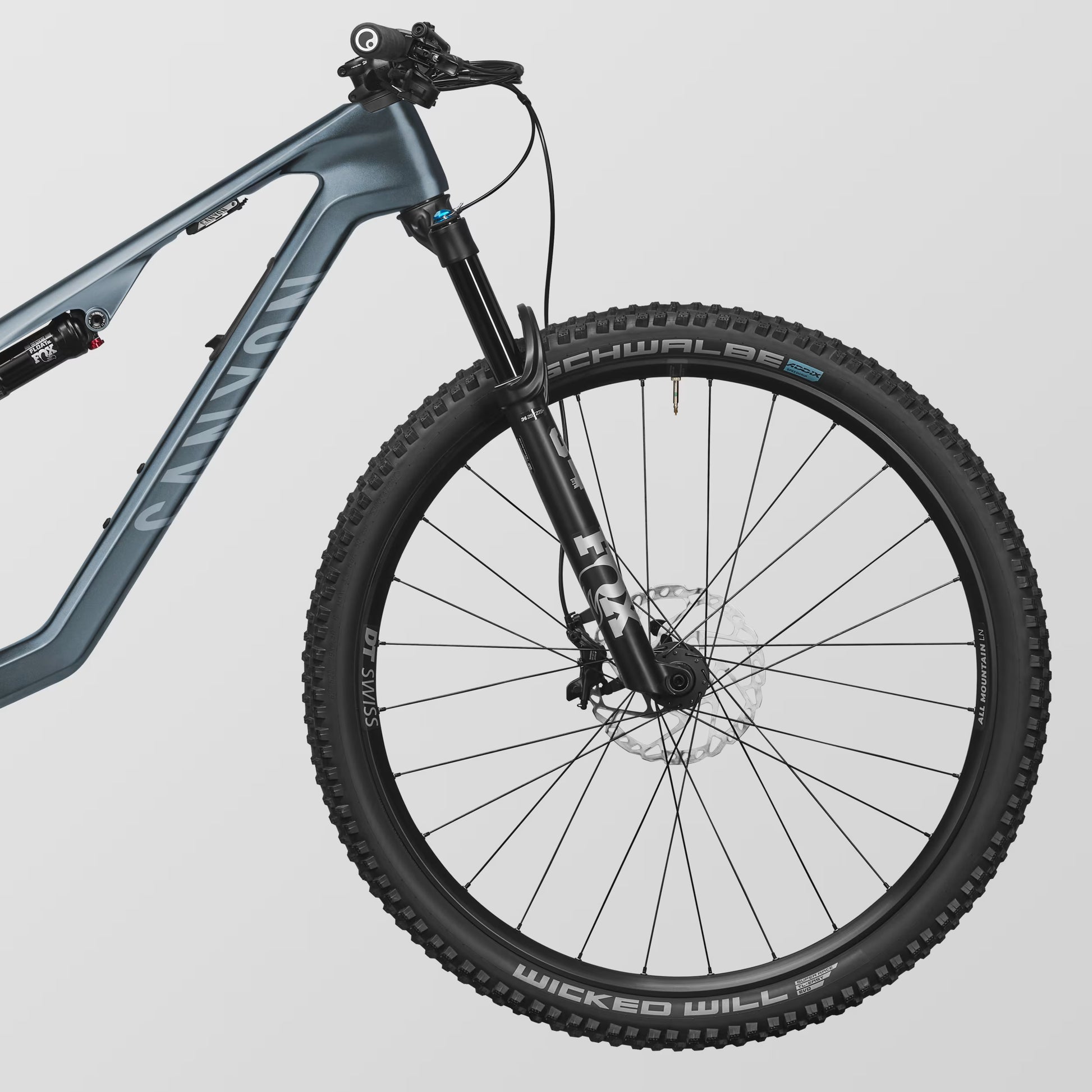

The right angles
We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.

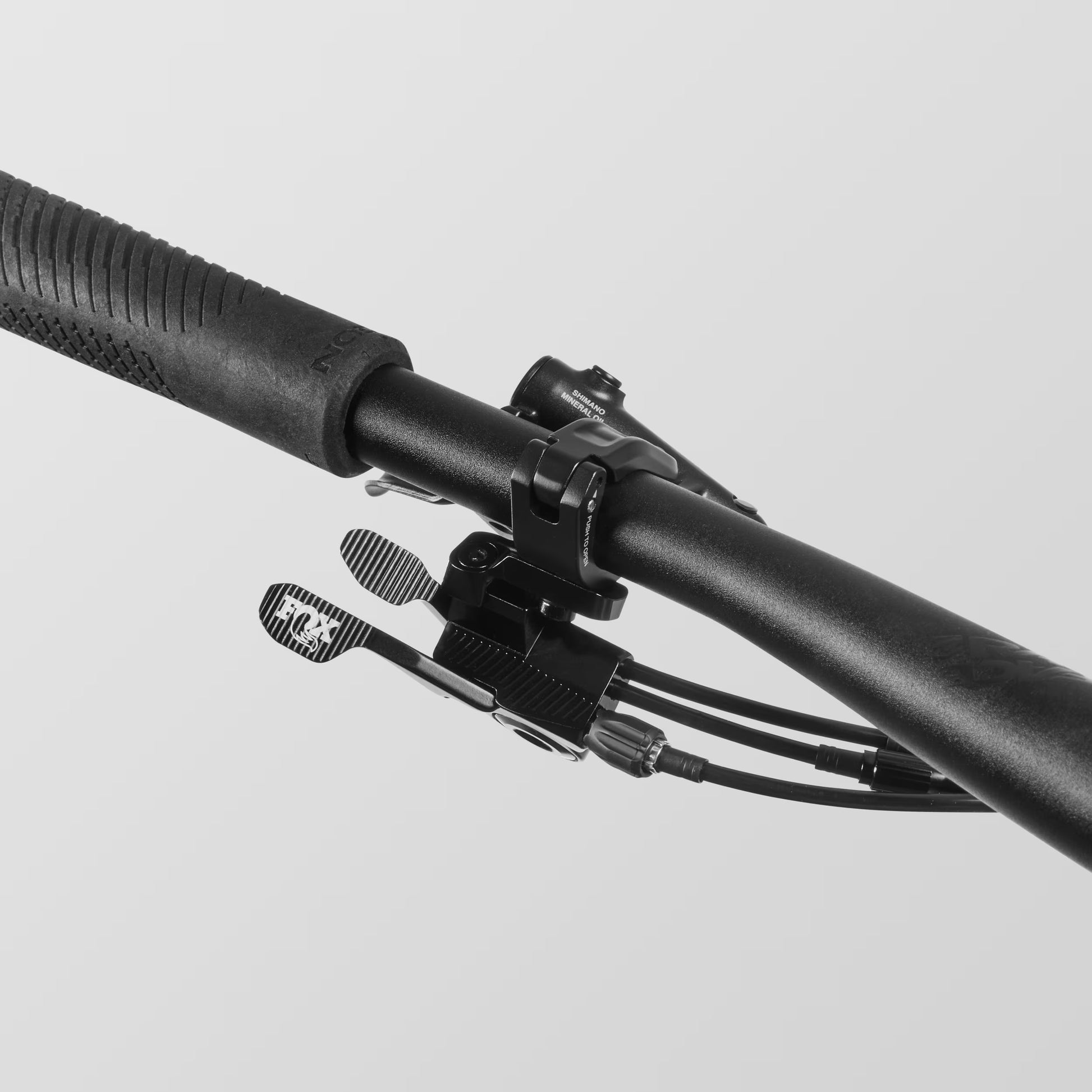

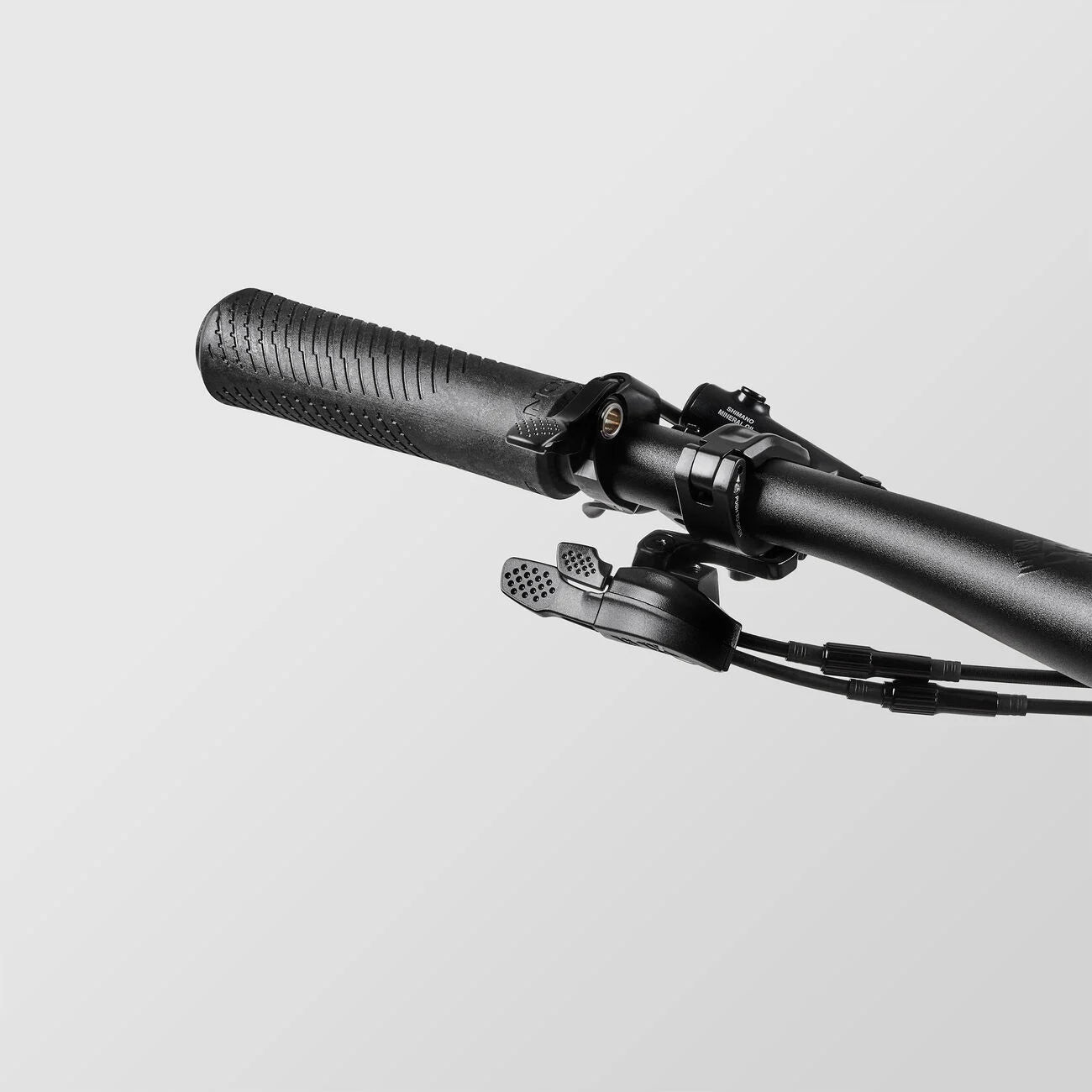

Remote lockout suspension
Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

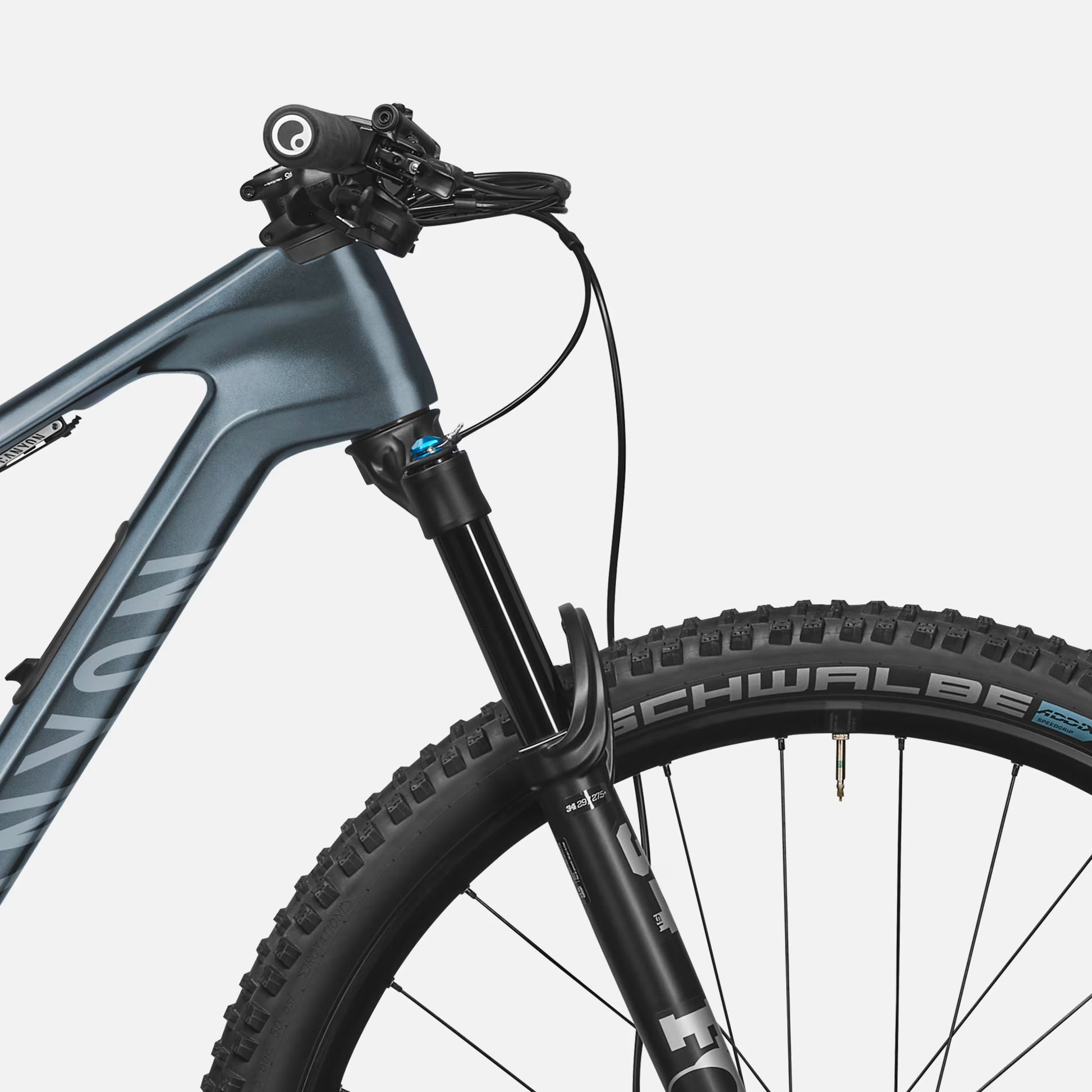

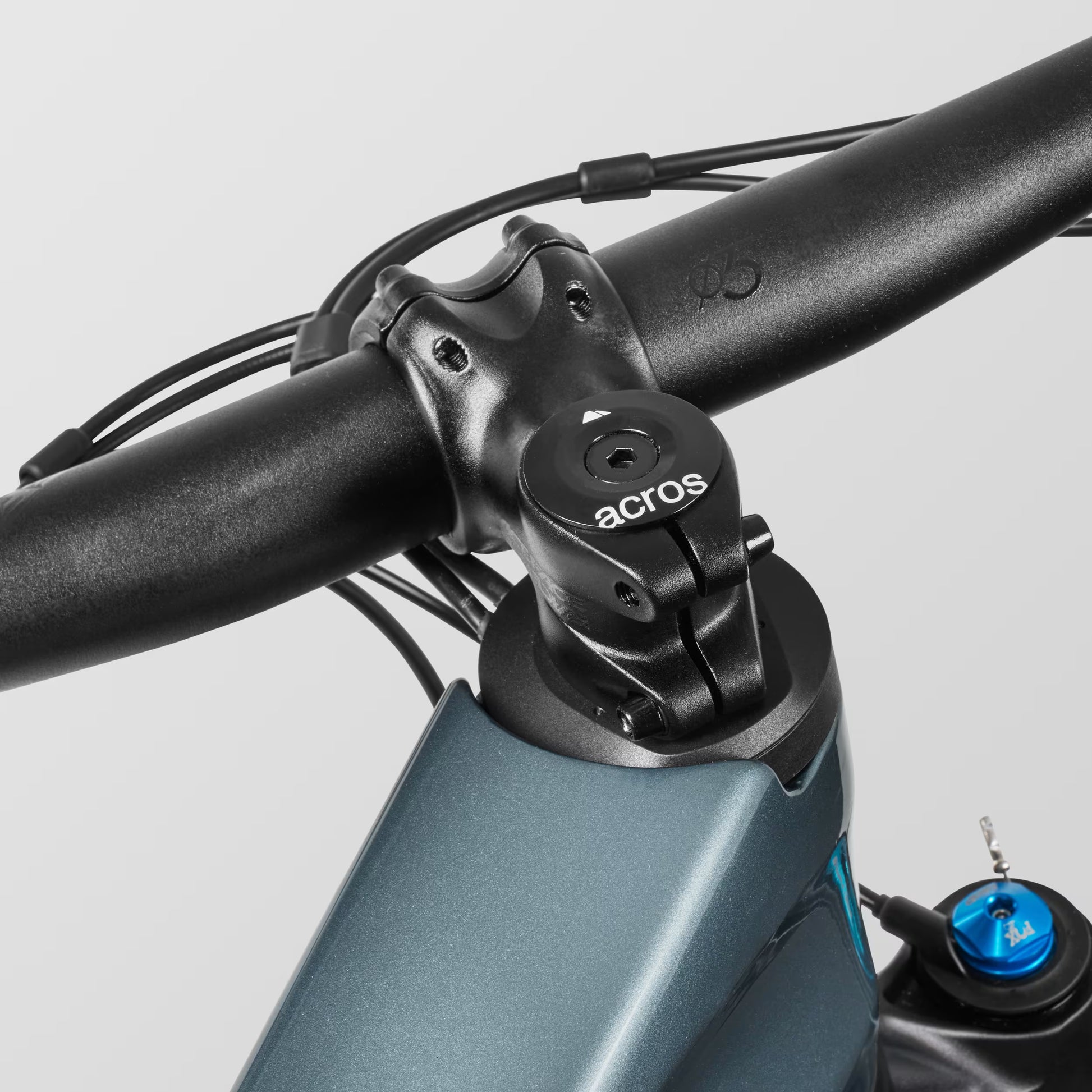

Proper frame protection
Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.

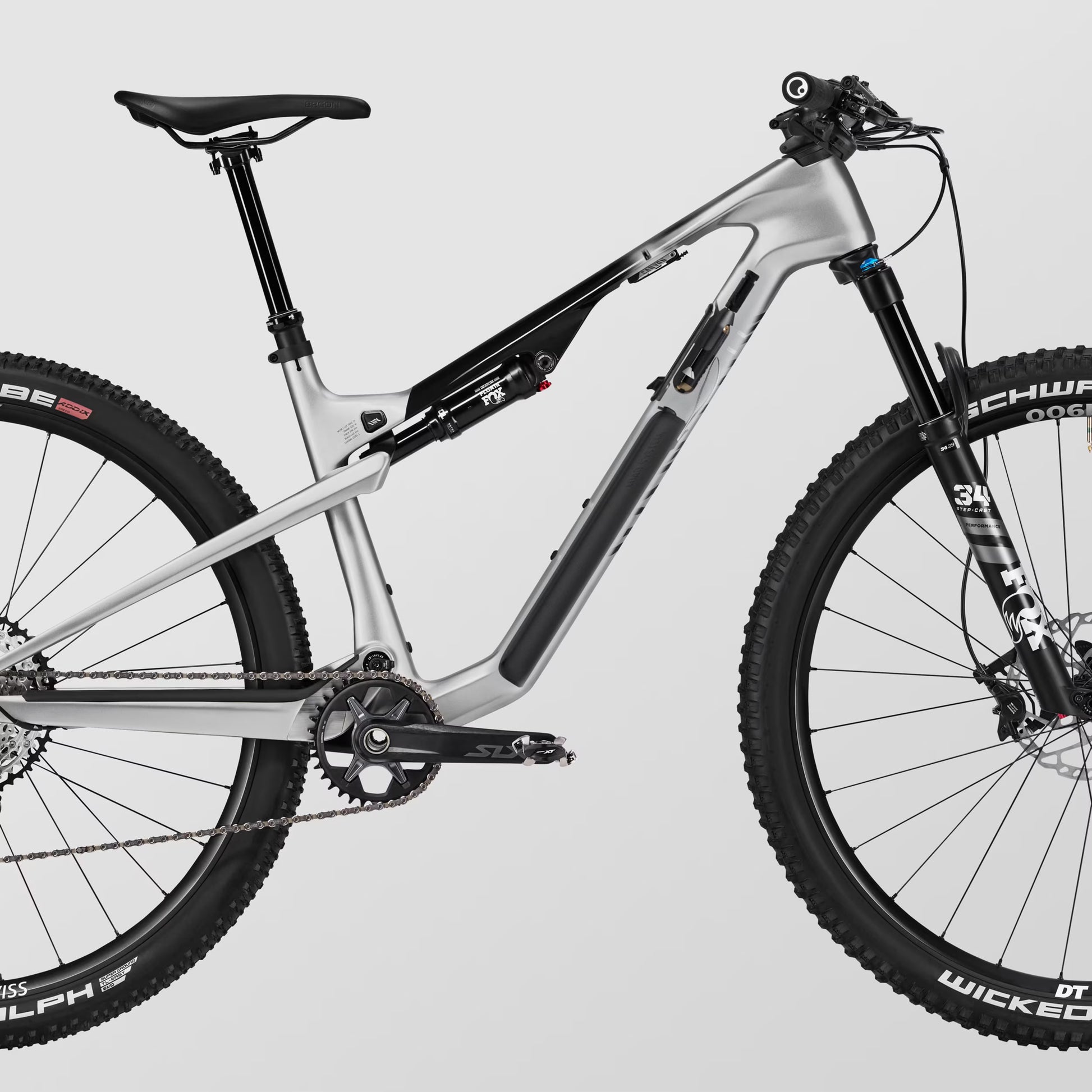

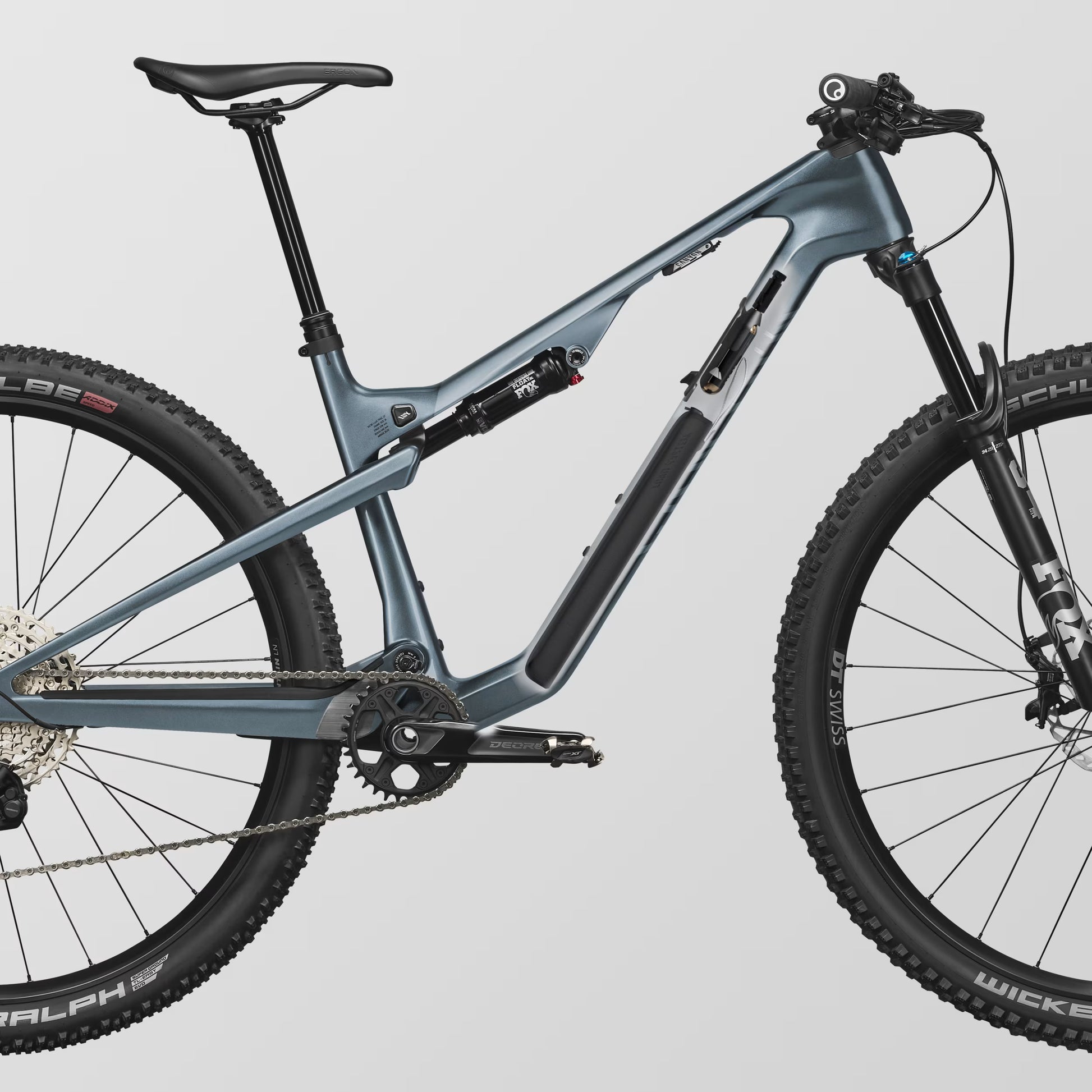

Clever storage
The fix is always within reach on the Lux Trail. Store a mini-tool in the top tube and Canyon Sahmurai Sword Plug Set in the bar ends for fast fixes.

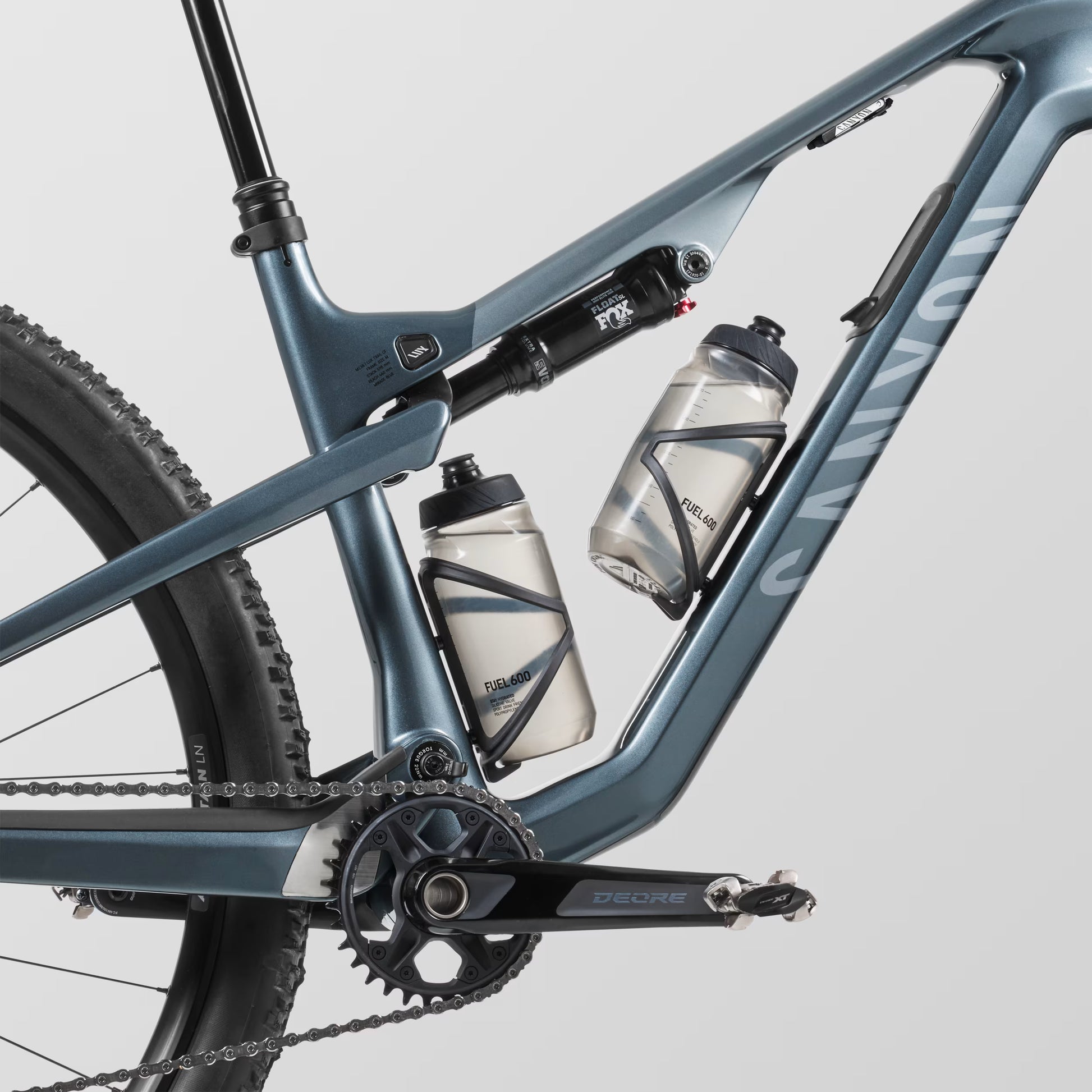

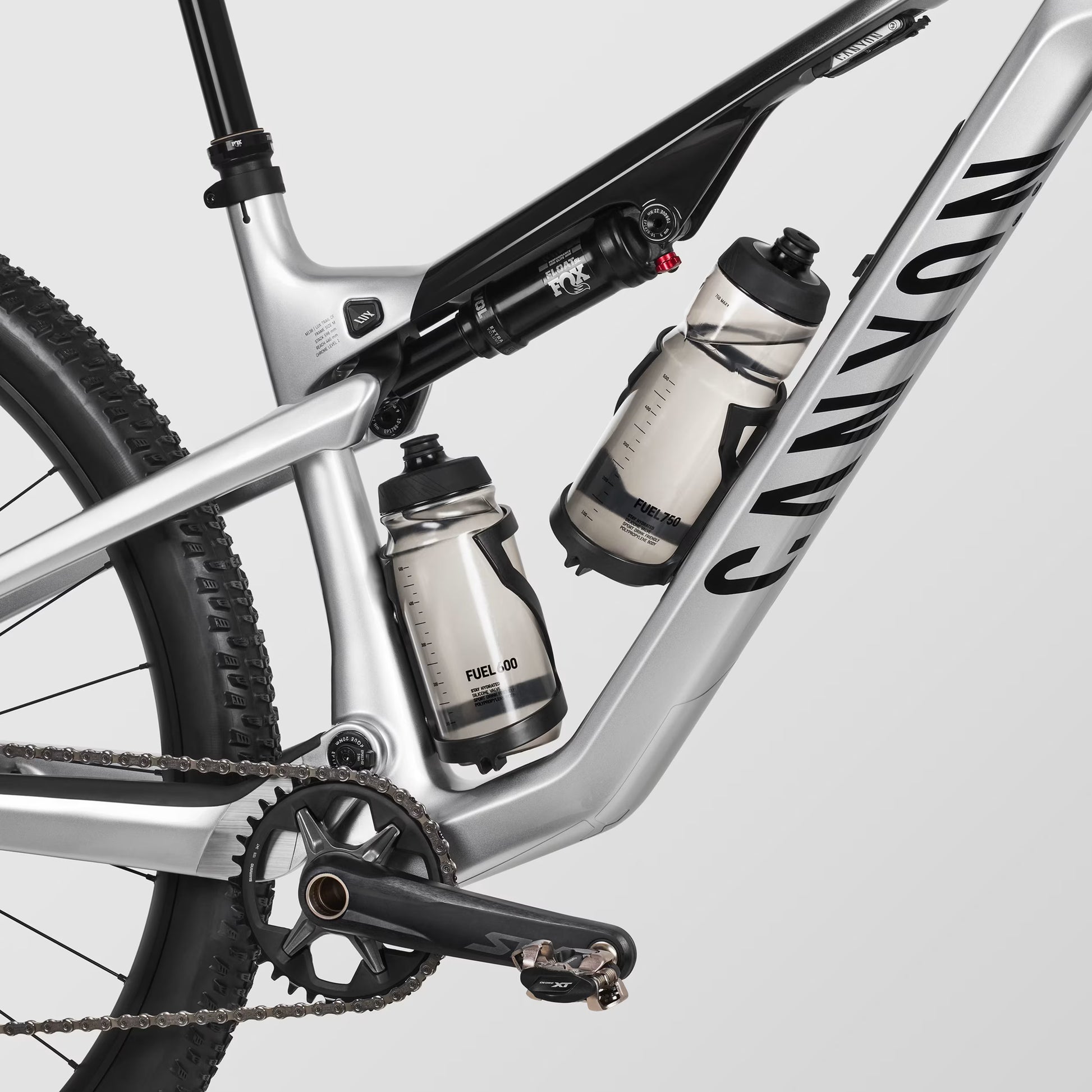

Drink more water
Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.
Components
FRAME
Frame
- Frame
- Canyon Lux Trail CF
- A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
Rear Shock
- FOX Float SL Performance Elite Remote

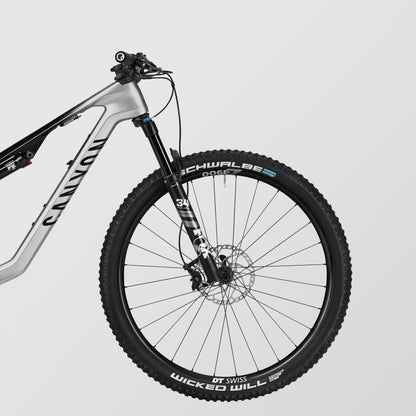

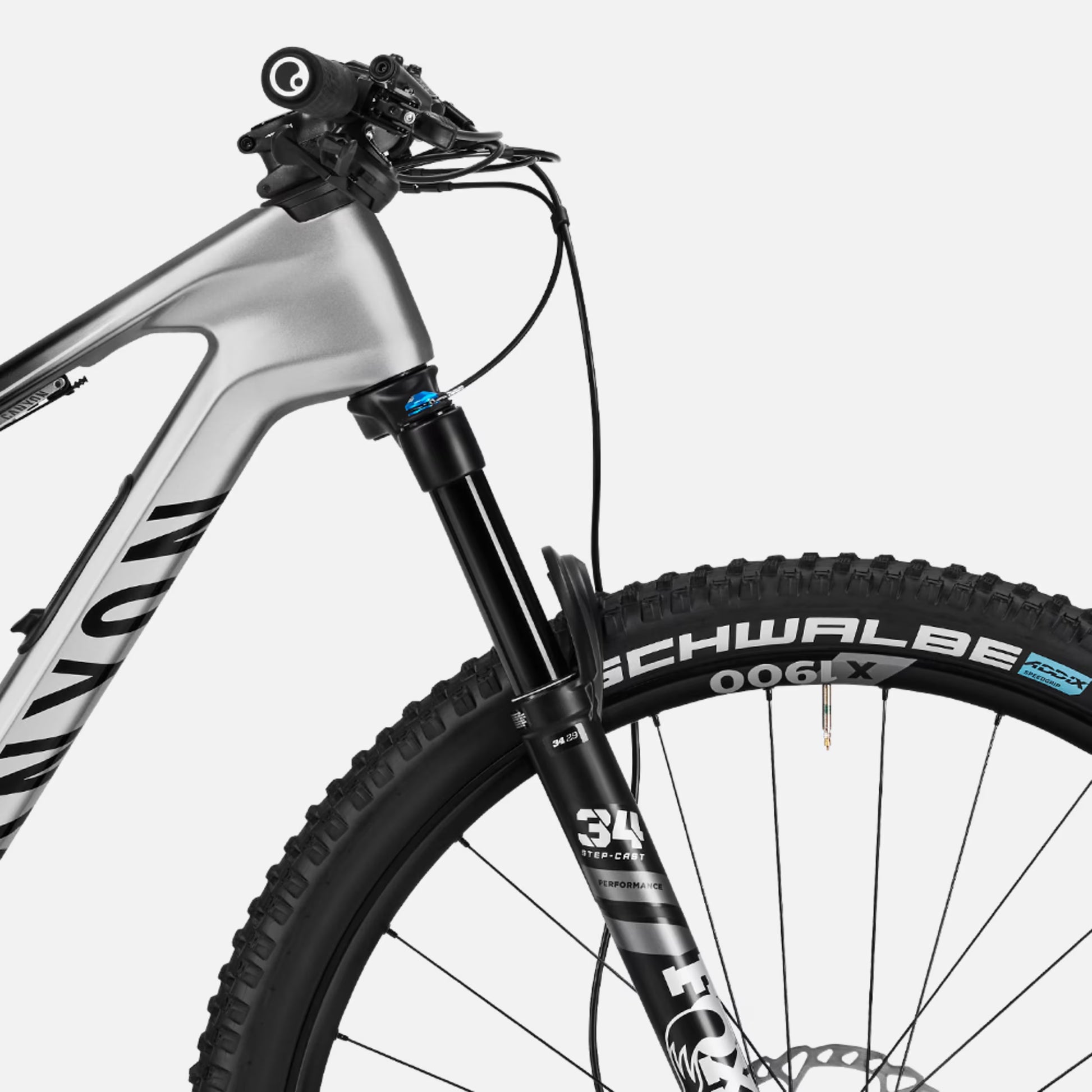

Suspension Fork
- FOX 34 Stepcast Performance 3-Pos Remote
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Weight: 1.52 kg
DRIVETRAIN
Rear Derailleur
- Shimano SLX M7100
- Cage length: long
- Weight: 286 g
Shift Lever
- Shimano SLX M7100
- Weight: 143 g
Cassette
- Shimano SLX M7100
- Number of sprockets: 12
- Range: 10-51 12S
Crank
- Shimano SLX M7120
- Number of chainrings: 1
Bottom bracket
- Shimano MT800
- Bottom bracket standard: BSA 68/73
- Weight: 100 g
Chain
- Shimano CN-M7100 12s
BRAKES
Disc Brake
- Shimano SLX M7100
- Number of pistons: 2
Disc Brake
- Shimano M7110
- Number of pistons: 2
Brake Rotor
- Shimano RT66 160
- Size: 160 mm
- Weight: 110 g
Brake Rotor
- Shimano RT66 180
- Size: 180 mm
- Weight: 140 g
WHEELS
Wheel
- DT Swiss X 1900 Spline
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 960 g
Wheel
- DT Swiss X 1900 Spline
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Weight: 1.08 kg
Tyre
- Schwalbe Racing Ralph SG TLE EVO 2.35"
- Width: 2.35"
Tyre
- Schwalbe Wicked Will SR TLE EVO 2.4"
- Width: 2.4"
Thru Axle
- Canyon Quixle Trough Axle QR 174x12
- Axle dimension: 12x148 mm

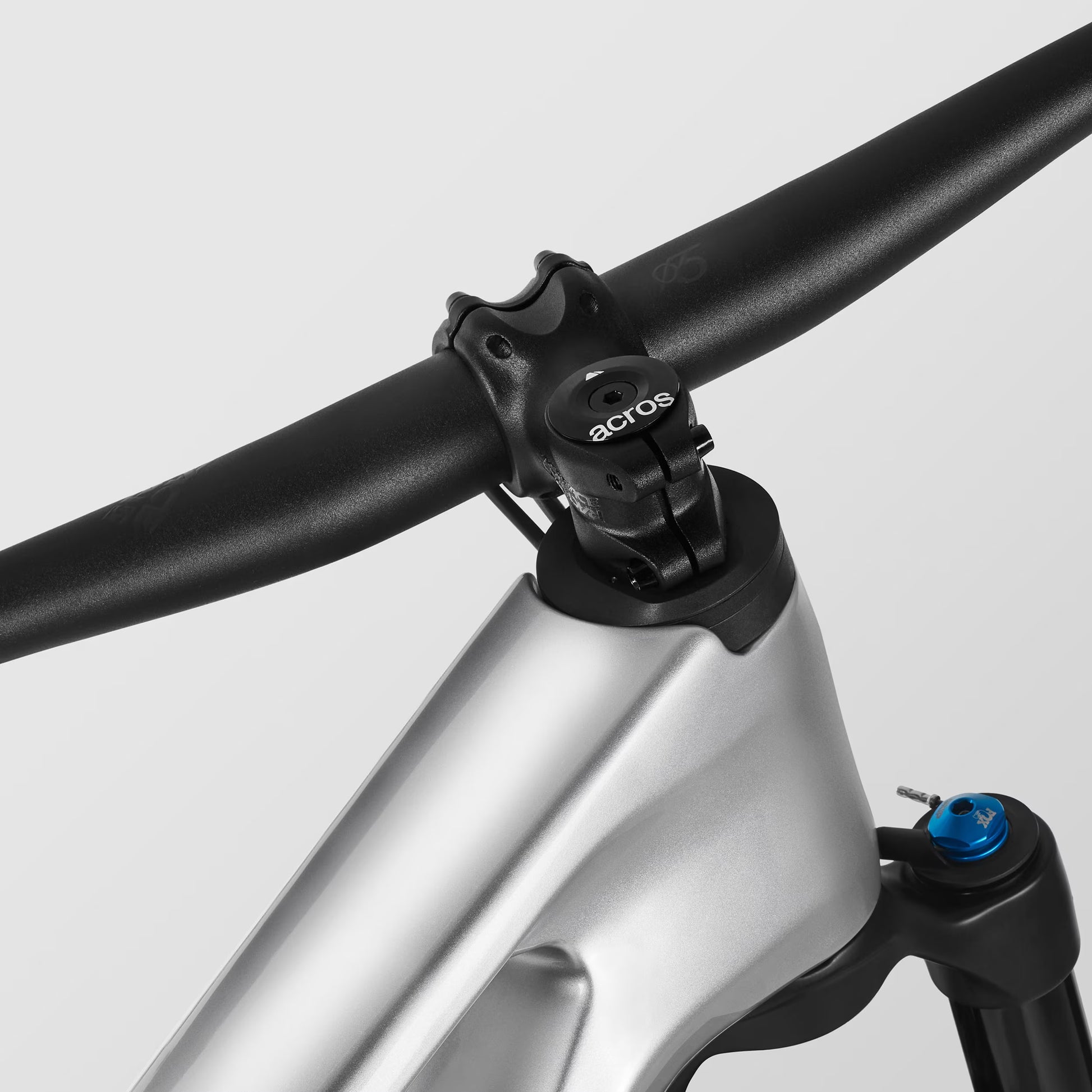

COCKPIT
Stem
- Race Face Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- Race Face Ride Riserbar
- Clamping diameter: 35,0 mm
- Width: 760 mm
- Rise: 10 mm
Grips
- Ergon GXR
SEAT
Saddle
- Ergon SM10 Sport
- Gender: Male
- Weight: 305 g
Seatpost
- FOX Transfer SL Performance Elite
- Clamp diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 437 g
Seat Clamp
- Canyon G5
GEOMETRY & DIMENSIONS
