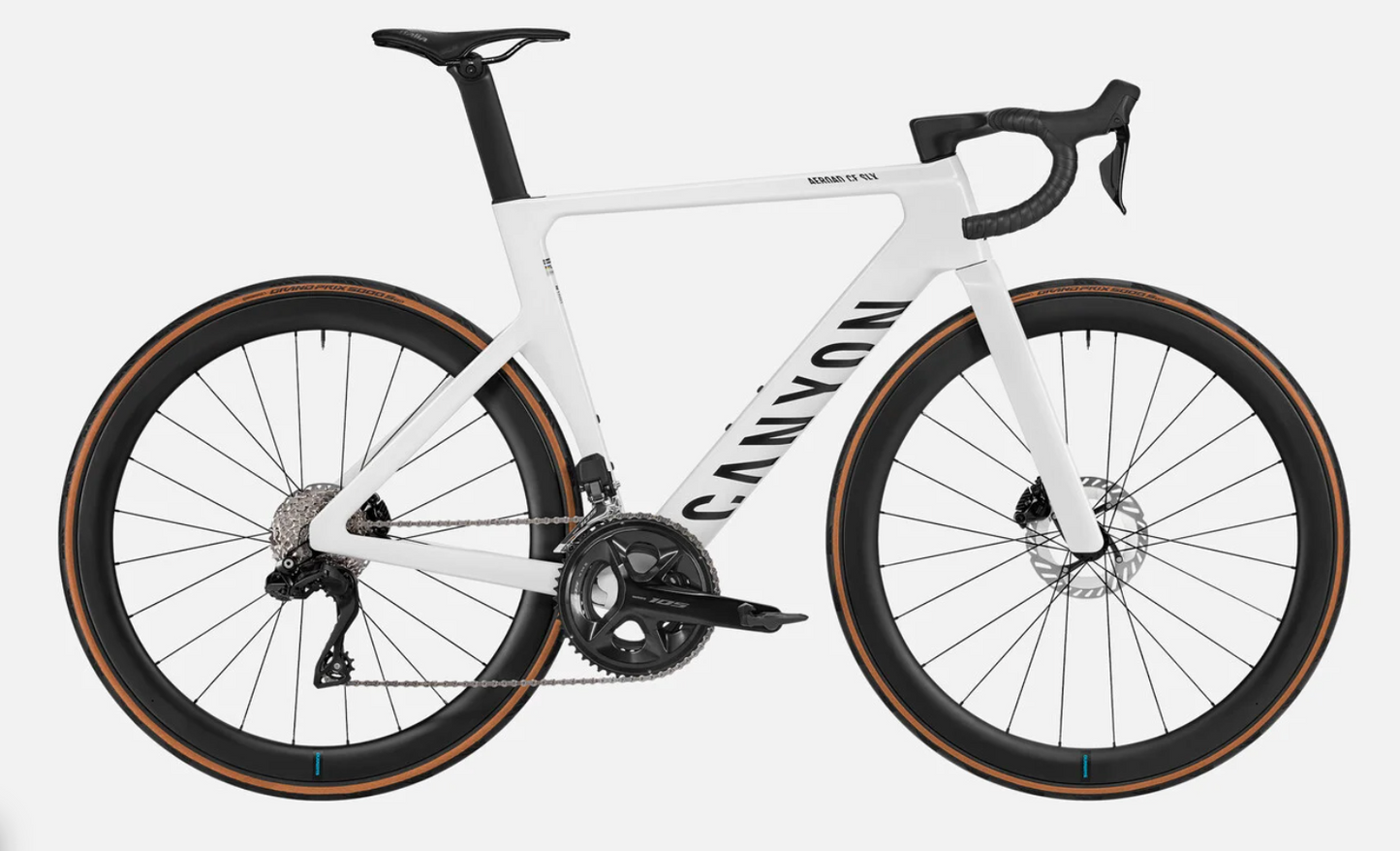

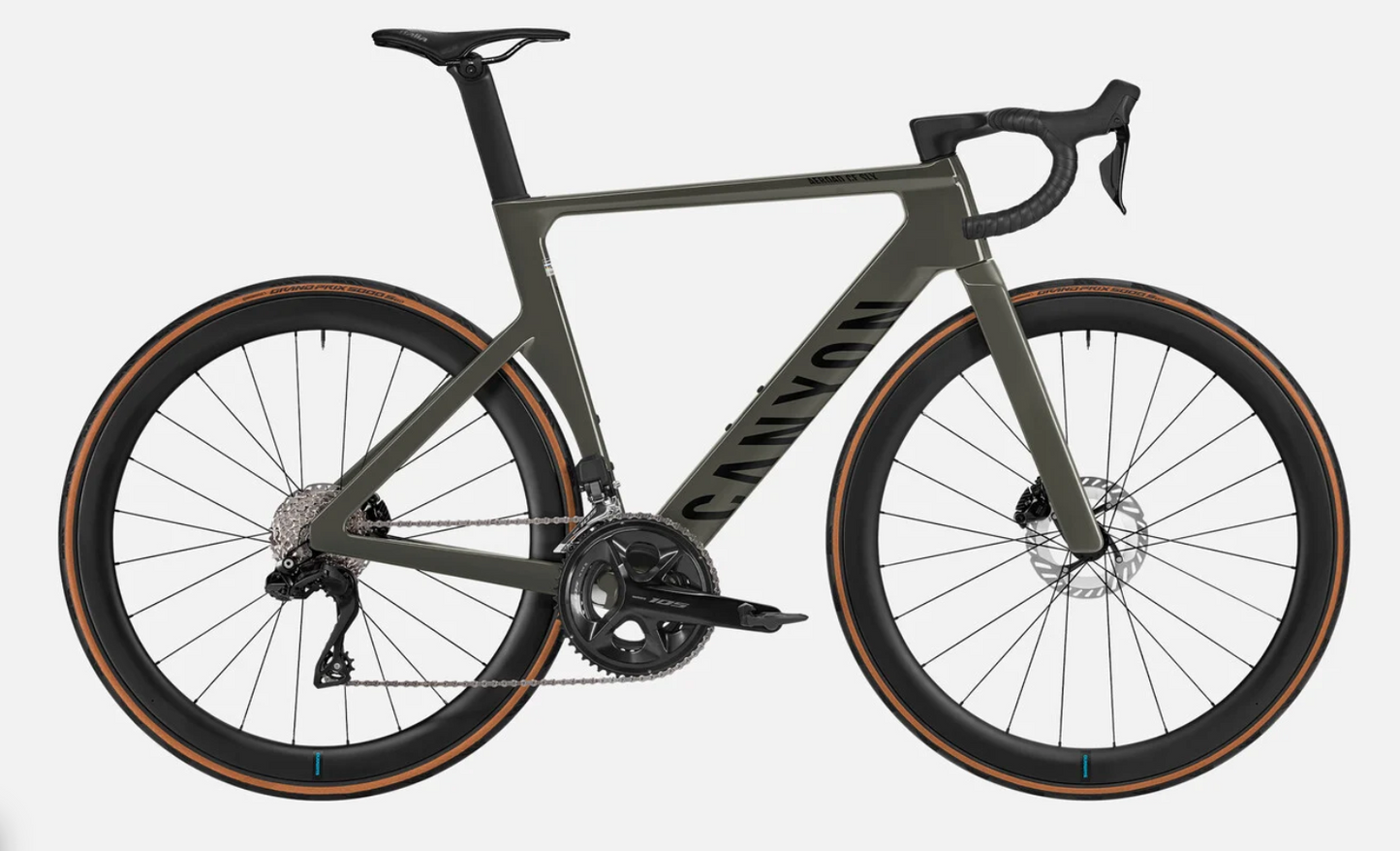

AEROAD CF SLX 7 Di2 C46
AEROAD CF SLX 7 Di2 C46
Combining the ultra-efficient, superlight Aeroad CF SLX frame with wind-cheating Shimano carbon wheels and Shimano's famous Di2 electronic shifting tech, this aero bike is ready to race.
Shimano 105 Di2 RD-R7150 12s, Shimano WH-RS710 C46 TL
- Weight: 7.88 kg
- Material: Carbon (CF)
Peloton performance
With the same peloton-leading aerodynamics as the flagship Aeroad CFR, the Aeroad CF SLX is one of the world’s most efficient race bikes and a true aerodynamic masterpiece. To deliver the stiffness-to-weight levels that high-level racing demands, Aeroad CF SLX frames are constructed using a new, advanced carbon layup – generating performance on a par with the World Championship-winning previous-generation Aeroad CFR.
PACE - Performance Adaptive Cockpit Ecosystem
From more upright and comfortable to low and aero, switch between cockpit setups in minutes using the Aeroad's interchangeable drops. As standard, the Aeroad uses the more balanced Classic Drops – with narrower Aero Drops available as an aftermarket extra for a slammed, compact, pro-inspired riding position with a longer effective reach. Swaps take a matter of minutes with the Aeroad's integrated TX25 emergency bit.
A versatile, adjustable carbon cockpit
As well as interchangeable drops, our groundbreaking CP0048 Aerocockpit places a wide range of fine fit adjustments and gear integration options in your hands. Dialling in your fit is precise and fast, with 20 mm of height and 50 mm of width adjustment with no cutting required. Plus, the new Gear Groove interface provides a solid platform for mounting a range of accessories quickly, from aero bars to computer mounts (available separately).
The benchmark of aero seatpost design
Comfort meets efficiency. Designed using advanced wind tunnel technology, the new Aeroad’s seatpost saves you watts for a free speed boost. Plus, it’s also simple to adjust so you can easily find your perfect riding position thanks to independent setback and tilt adjustment plus 100 mm of height adjust in sizes XS-2XL.
Silky-smooth, low-maintenance ceramic headset bearings
Spend more time on the road and less in the workshop. With improved seals and super-smooth premium ceramic bearings, the Aeroad's headset effectively keeps out water and dirt for beautifully smooth steering with almost zero maintenance. Even through the longest races in the harshest conditions, these seals are up to the task.
An integrated tool for all your adjustments
The Aeroad's removable through axle lever doubles up as a TX25 tool that fits almost every screw across the bike, and clips discreetly into the wheel when not in use. From adjusting your saddle height and tilt to changing your cockpit height and width, this single tool is everything you need to make dozens of adjustments and tune-ups on the road.Please note: the user is responsible for following the specified torque values when tightening bolts, which cannot be checked with the tool.
Components
FRAME
Frame
- Canyon Aeroad CF SLX
- Fourth-generation Aeroad frame uniting peloton-leading aerodynamics with an improved carbon layup for added robustness.
- Axle dimension: 12x142 mm
- Tyre clearance: 32 mm
- Material: Carbon (CF)
- Weight: 1.05 kg
Fork
- Canyon FK0137 CF Disc
- Aero fork shaped using advanced CFD technology. With hermetically sealed headset and titanium bearing seat for next-level durability and smoothness.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 32 mm
- Material: Carbon (CF)
- Weight: 416 g
DRIVETRAIN
Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano 105 Di2 RD-R7150 12s
- Weight: 302 g
Front Derailleur
- Shimano 105 Di2 FD-R7150
- Weight: 142 g
Cassette
- Shimano 105 R7100, 12-speed, 11-34T
- Number of sprockets: 12
- Range: 11-34
Crank
- Shimano 105 R7100 4iiii Precision Powermeter 3
- Number of chainrings: 2
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
Chain
- Shimano CN-M7100 12s
BRAKES
Shift-/ Brake Lever
- Shimano 105 Di2 R7170, 2-speed
- Number of pistons: 2
- Weight: 211 g
Shift-/ Brake Lever
- Shimano 105 Di2 R7170, 12-speed
- Number of pistons: 2
- Weight: 211 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 140 mm
- Weight: 97 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
- Weight: 120 g
WHEELS
Wheel
- Shimano WH-RS710 C46 TL
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 46 mm
- Inner width: 21 mm
- Rim material: Carbon
- Weight: 880 g
Wheel
- Shimano 105 RS 710 C46 TL
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 46 mm
- Free hub: Shimano Hyperglide HG
- Inner width: 21 mm
- Rim material: Carbon
- Weight: 930 g
Tyre
- Continental GP 5000 S TR
- Width: 25 mm
- Weight: 250 g
Tyre
- Continental GP 5000 S TR
- Width: 28mm
- Weight: 275 g
Thru Axle
- DT Swiss through axle w/o Lever
- Axle dimension: 12x142 mm
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
COCKPIT
Cockpit
- Canyon CP0048
- One-piece carbon cockpit with interchangeable drops, and 20 mm height and 50 mm width adjustment with no cutting required.
- Material: Carbon (CF)
- Weight: 457 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: Black
SEAT
Saddle
- Selle Italia SLR Boost Superflow S manganese
- Width: 130 mm
- Gender: Unisex
- Weight: 208 g
Seatpost
- Canyon SP0077
- Easy-adjust carbon seatpost. With a new clamp allowing independent setback and tilt adjustment.
- Material: Carbon (CF)
- Weight: 130 g
Seat Clamp
- Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails
