CUSTOMISE YOUR SPEEDMAX CFR

Which Speedmax can be customised?

The Speedmax CFR and CF SLX can be customised with a range of component and performance upgrades.

Part Speedmax CFR Speedmax CF SLX
Cockpit
Cockpit Reach & Stack
Aeromodule
Wheels
Crank Length
Cassette Range
Saddle
Seat Post

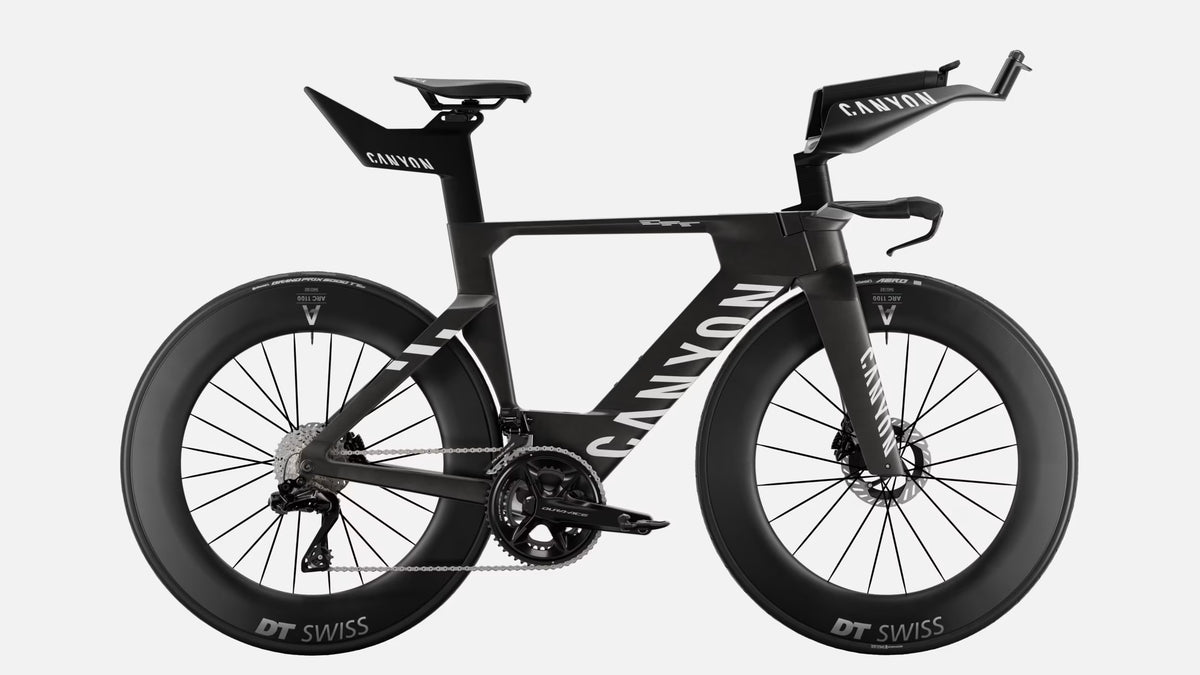

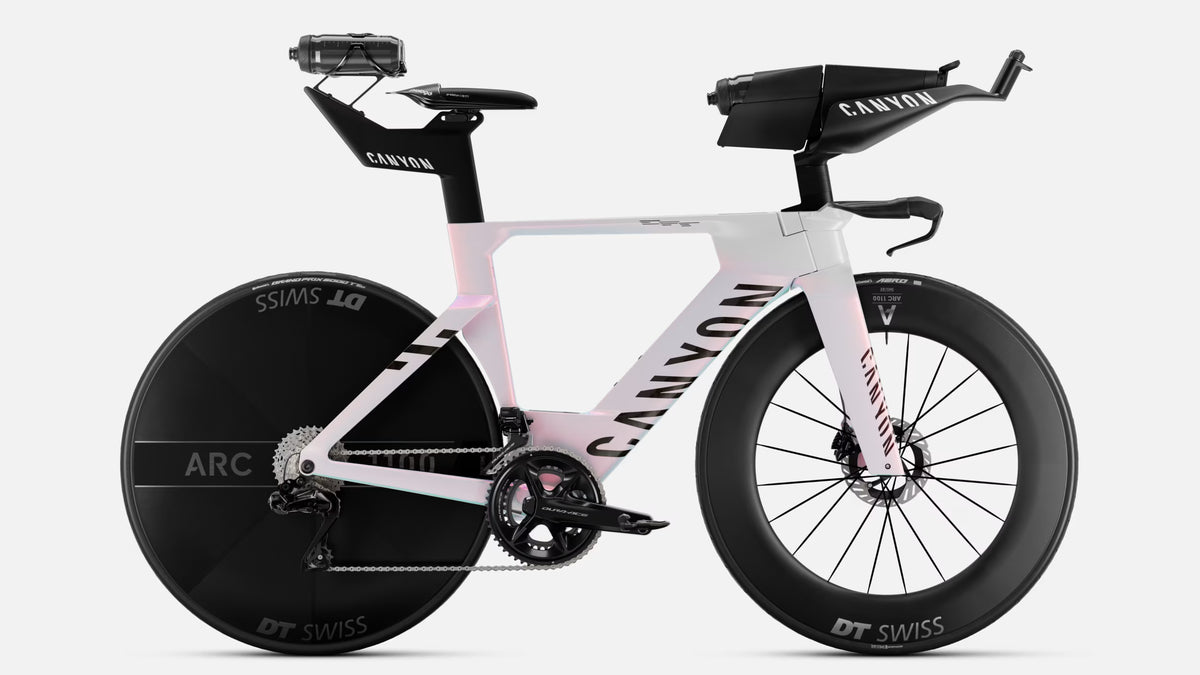

SPEEDMAX CFR

Every Speedmax CFR is individually manufactured according to specific order requirements.
A detailed overview of options and their respective pricing is outlined below. Please be advised that certain components may be subject to stock availability when the order is finalized.

  • Element Collection

  • Laminar Collection

    + R13'000

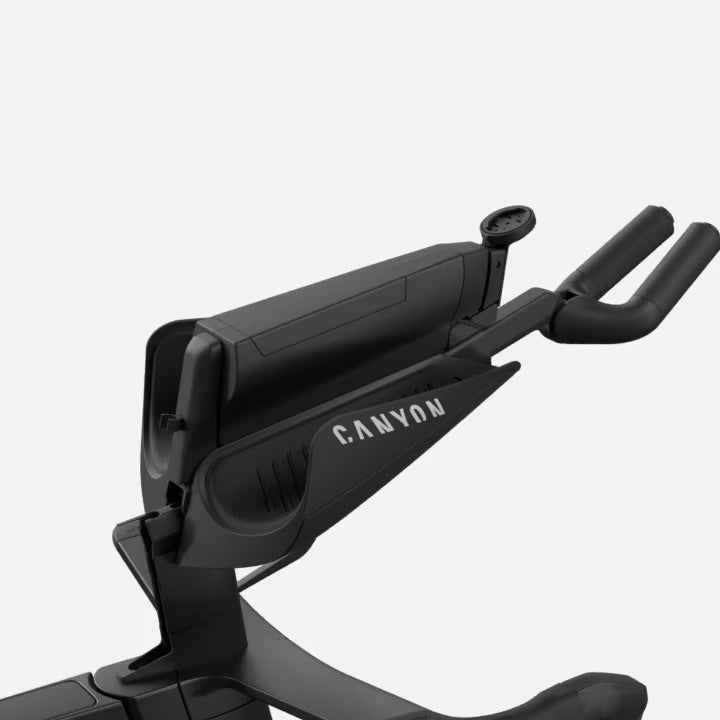

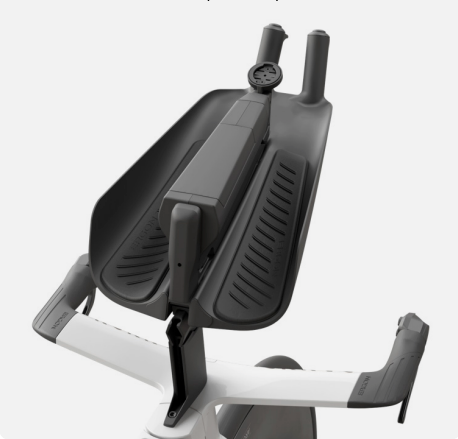

  • AeroShield

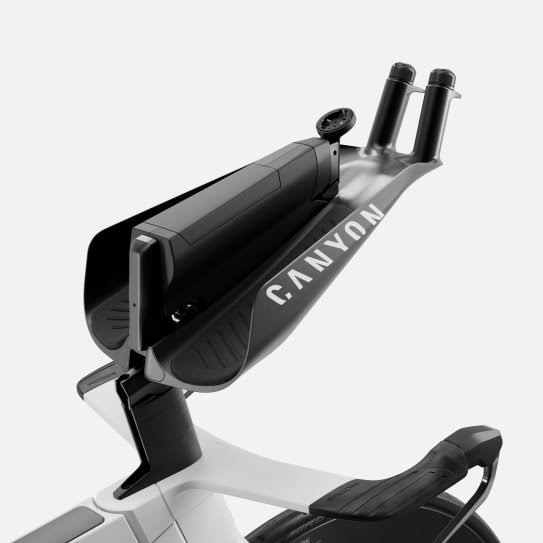

  • AeroShield Pro

    + R22'500

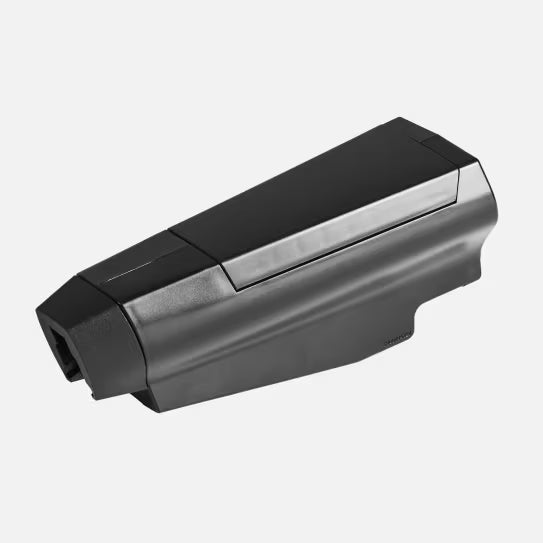

  • Load 400

    Included

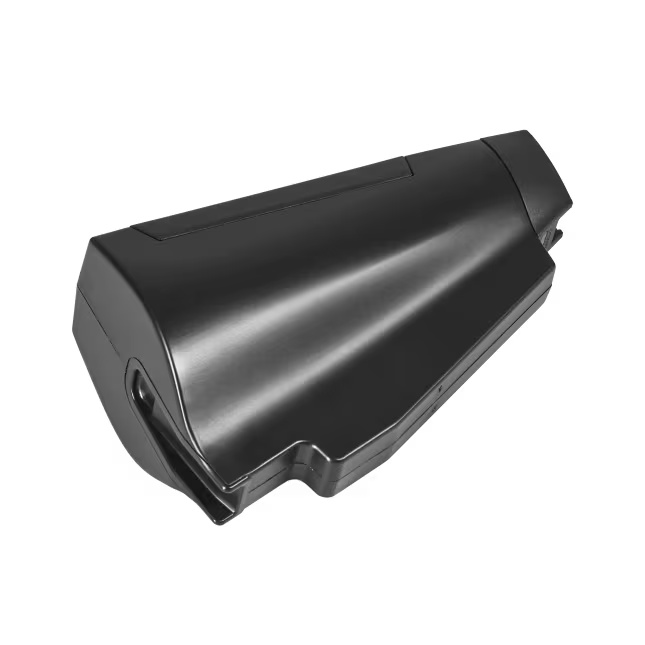

  • Load 650

    + R2'000

  • Fuel 650

    + R2'000

  • Load 650 + BTC Beam

    + R4'500

  • Fuel 650 + BTC Beam

    + R4'500

  • DT Swiss ARC 1100 85 mm

  • Zipp 454 | 858 NSW

    + R22'000

  • DT Swiss ARC 1100 85mm | Disc

    + R25'000

  • Zipp 858 NSW

    + R25'000

  • Zipp 858 NSW | Super 9

    + R37'000

  • Sram & Shimano

    160mm

  • Sram & Shimano

    165mm

  • Sram & Shimano

    170mm

  • Sram & Shimano

    172.5mm

  • Sram & Shimano

    175mm

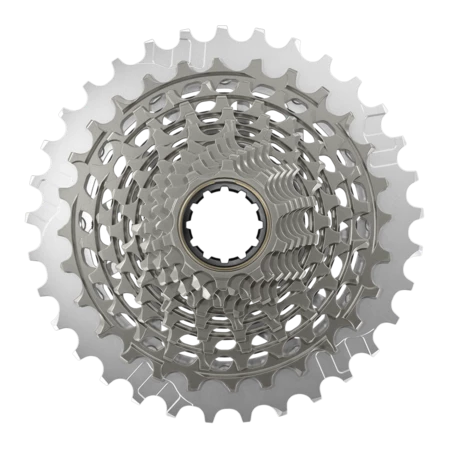

  • Sram

    10 - 33

  • Sram

    10 - 36

  • Shimano

    11 - 30

  • Shimano

    11 - 34

  • Ergon SR Tri Men Front Pro Carbon

  • Ergon SR Tri Woman Front Pro Carbon

  • Fizik Transiro Aeris LD R1 Adaptive

    + R5'000

  • Prologo Predator TT/01

    + R6'100

What do we need for a perfect fit?

Over 70% of system drag comes from you, the rider. That’s why with the new Speedmax, we shifted focus. From bike to rider. From pros to all athletes. By creating an industry-leading range of simple, intuitive adjustments and setup options, every athlete, at any level, can dial in their perfect setup, thanks to AeroID.

Cockpit size

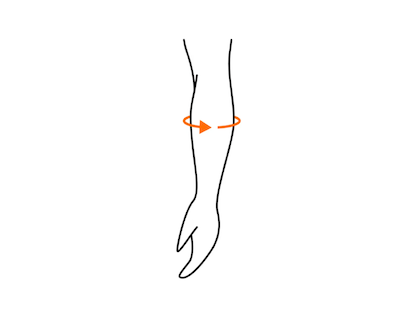

Forearm Circumference

  1. Lift your arm so your forearm stays relaxed and horizontal.
  2. Locate the thickest point of your forearm.
  3. Wrap a measuring tape or a piece of string around this point. Do not over-tighten.
  4. Mark the point where the tape or string overlaps.
  5. Lay the string flat against a ruler to read your exact measurement.

Cockpit size

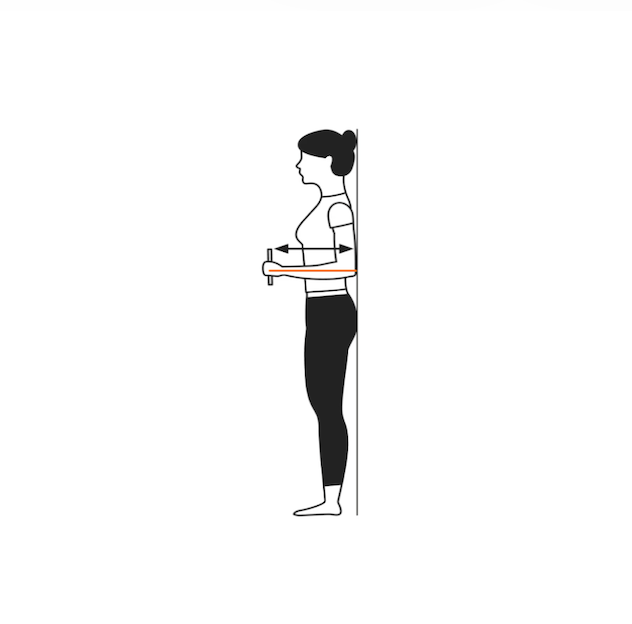

Forearm Length

  1. Stand upright with your back and shoulders flat against a wall.
  2. Bend your arm to a 90-degree angle and make a fist.
  3. Hold a pencil in your hand and make sure it's kept perfectly vertical.
  4. Measure the horizontal distance from the wall to the tip of the pencil.
  5. For the most accurate result, ask a second person to help take the measurement.

Cockpit stack & reach

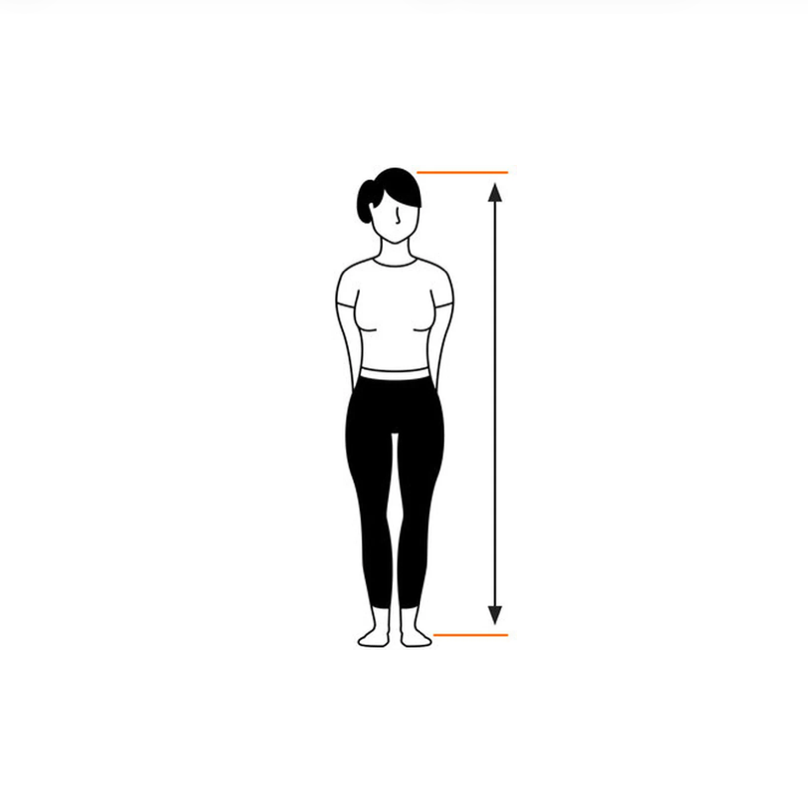

Body Height

  1. Stand barefoot with your heels, back, shoulders and head against a wall, looking straight ahead with your chin tucked in.
  2. Carefully place a book on your head and slowly push it against the wall so it’s parallel to the floor.
  3. Measure from the bottom of the book to the floor — this is your height.

Cockpit stack & reach

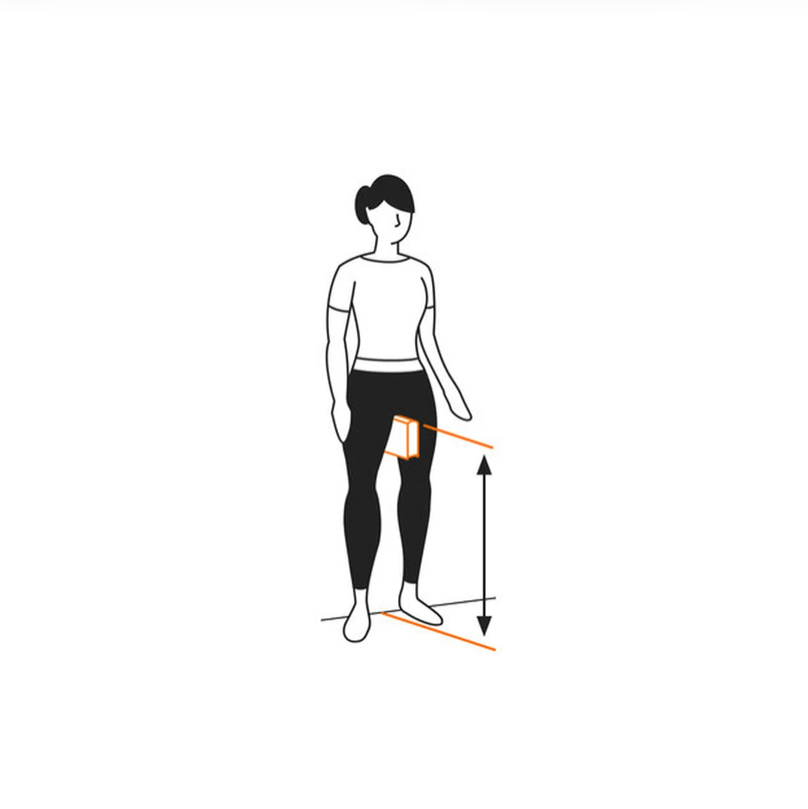

Inner Leg Length

  1. Wear cycling bibs, tights or slim fit underwear and stand barefoot with your back against a wall.
  2. Tuck a book between your legs and pull it up into your crotch to where your saddle would be.
  3. From the top edge of the book to the floor is your inner leg length.

Cockpit stack & reach

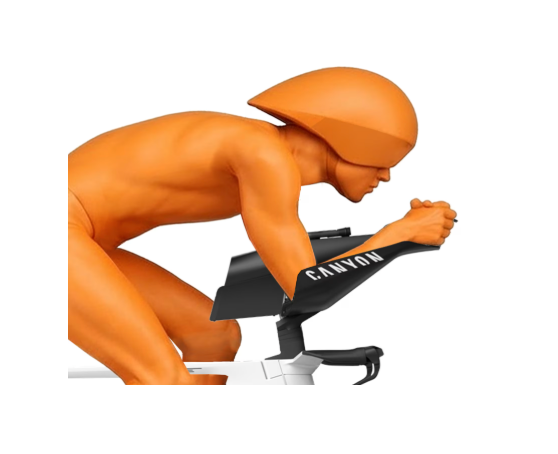

Arm Pad Height

Choose between low, balanced and comfort.

Lower aero positions demand greater flexibility and are harder to sustain over longer distances.

Cockpit stack & reach

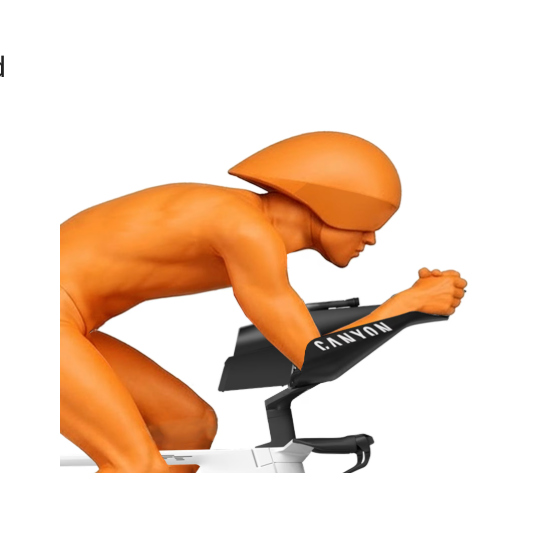

Cockpit Reach

Choose between compact and stretched.

Compact is best for most athletes. A stretched position maximises aero, but requires greater core stability.

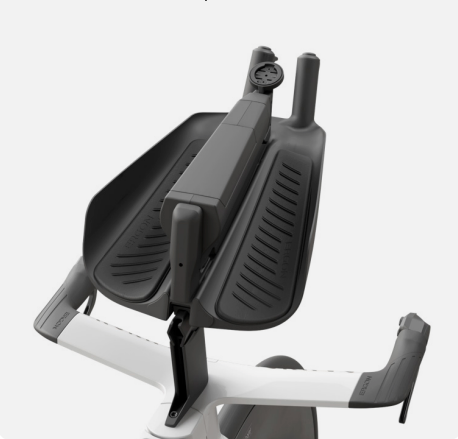

  • Short

    < 340 mm

  • Medium

    340 - 395 mm

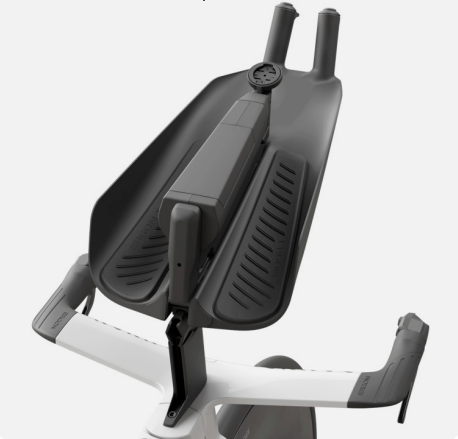

  • Long

    > 395 mm

  • Narrow

    215mm

  • Medium

    230mm

  • Wide

    245mm
